M68
1200lbs holding force; Indoor use
Documents, Certifications & Listings

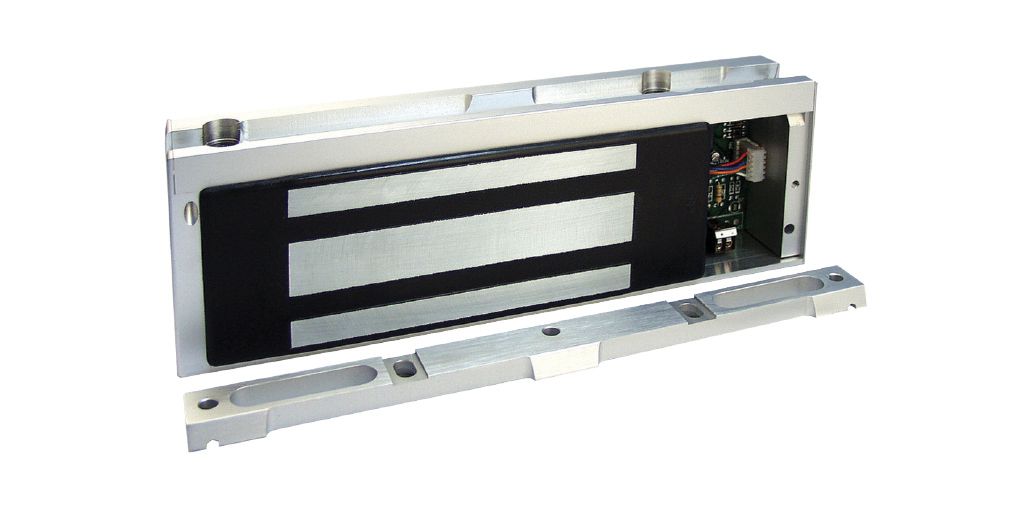

1200 lbs. holding force Magnalock with automatic dual voltage. This model offers a built-in wire access chamber and bracket mount design for a unique method of installation. Recommended for interior and perimeter doors through which criminals could gain entrance to cause substantial economic loss.
Product Features
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with mounting bracket using minimal tools
- Internal wire access chamber
- Mounted using steel machine screws into blind finishing nuts
- Brushed aluminum finish
- All ferrous metal surfaces plated to MIL specification
- Automatic dual voltage - no field adjustment required
- Dress Covers available
- Lock options include door position switch, LED indicator and anti-tamper switch
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 1200 lbs. [544 kg]
- Current Draw and Voltage: 250mA at 12VDC; 125mA at 24VDC
- Operating Temperature: +32 to +110F [0 to +43C]
- Shipping Weight: 13 lbs.
Models
| Part # | Description |
| M68 | Magnalock Model 68 |
| M68D | M68, DPS |
| M68DL | M68, DPS, LED |
| M68DLS | M68, DPS, LED, Senstat |
| M68DLST | M68, DPS, LED, Senstat, Tamper |
| M68DS | M68, DPS, Senstat |
| M68LS | M68, LED, Senstat |
| M68S | M68, Senstat |
NOTE: An Offset Strike may be required for proper installation of the M68 in aluminum frame door applications.
Patent pending and/or patent assaabloydss.com/patents
