M32
600lbs holding force; Weather resistant
Documents, Certifications & Listings

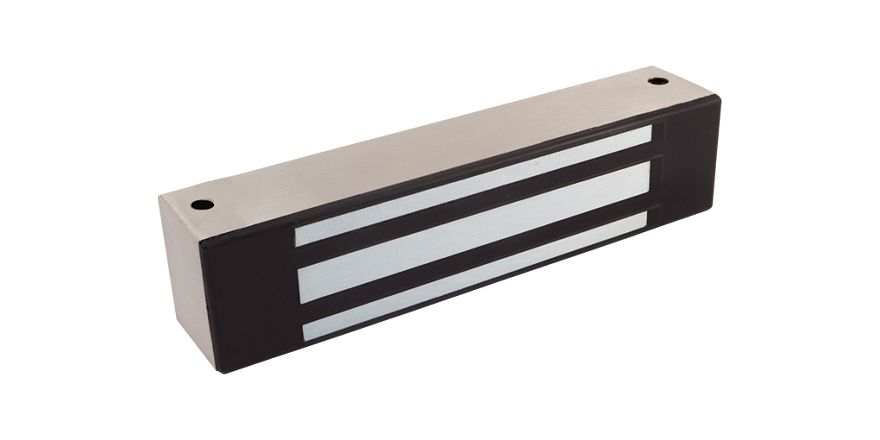

600 lbs. holding force Magnalock with automatic dual voltage. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.
Product Features
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with a minimum of tools
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Dress Covers available
- Ten feet [3.05m] of jacketed, stranded conductor
- Lock options include BondSTAT magnetic bond sensor and integrated door position switch
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 600 lbs. [272 kg]
- Current Draw and Voltage: 300mA at 12VDC; 150mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 6 lbs
Models
| Part # | Description |
| M32 | M32 Magnalock- 12/24VDC |
| M32B | M32 Magnalock- 12/24VDC, MBS |
| M32BD | M32 Magnalock- 12/24VDC, MBS, DPS |
| M32D | M32 Magnalock- 12/24VDC, DPS |
| M32F | M32 Magnalock- 12/24VDC, Face Drilled |
| M32FB | M32 Magnalock- 12/24VDC, Face Drilled, MBS |
| M32FBD | M32 Magnalock- 12/24VDC, Face Drilled, MBS, DPS |
| M32FD | M32 Magnalock- 12/24VDC, Face Drilled, DPS |
NOTE: The M32 with strike requires minimum 2.25" flat mounting space.
