TESA Single Door Panic Hardware
Variations

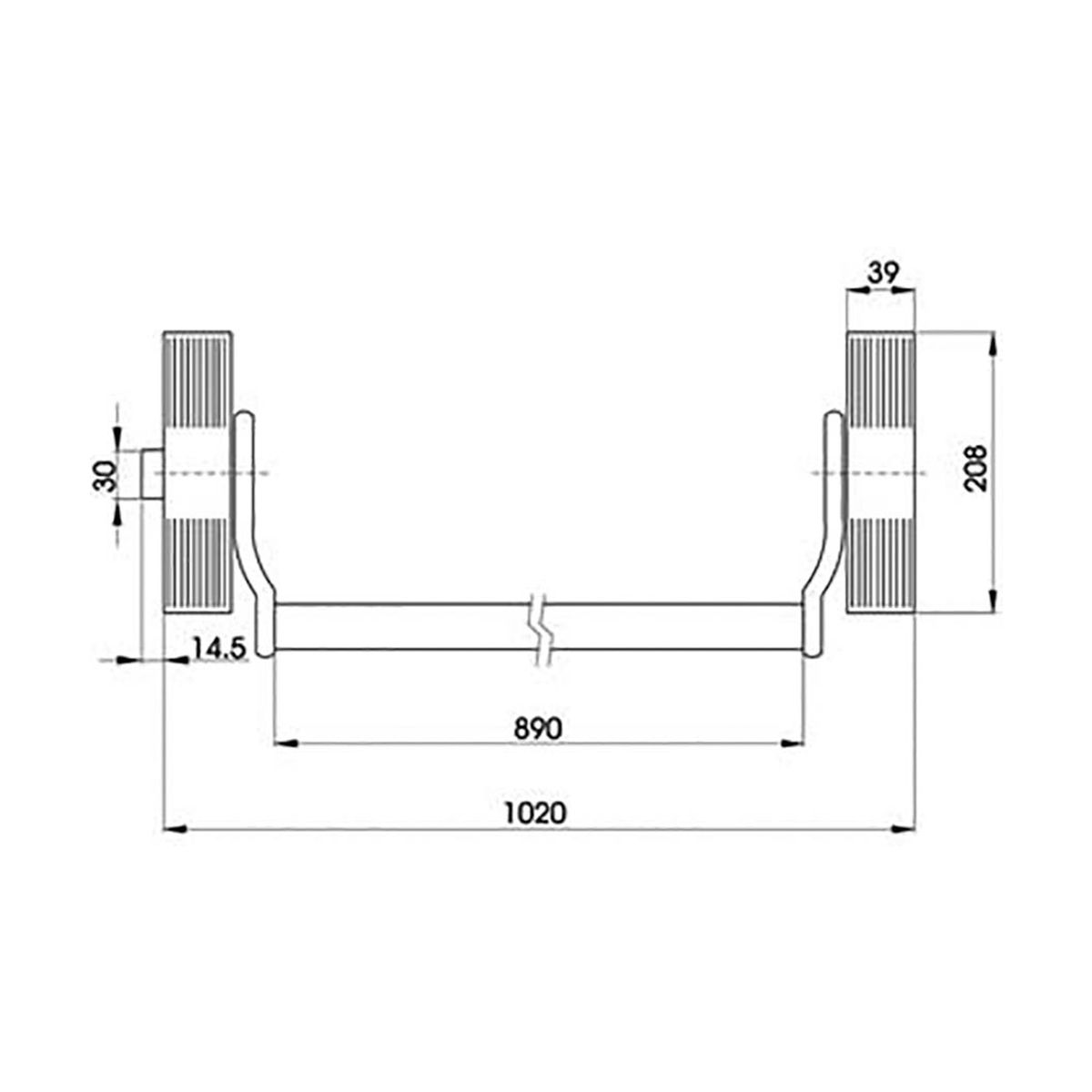

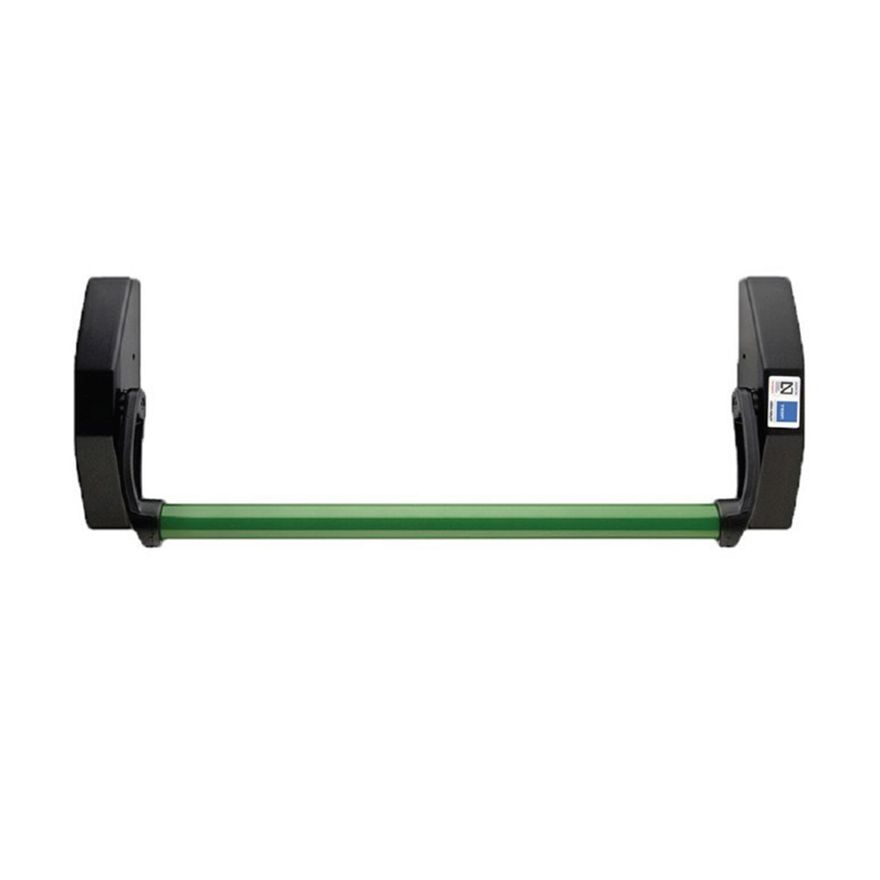

Variant 1
- TESA-1910908NV
Technical Attributes
- Single lateral locking push latch
- Steel swing latch
- Max. door width 900mm
- Max. Door height 2210mm
- Optional outside access device:
- MMPS2SCPL
- MMPP2T5PL
Certification
- BS EN 1125
- 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

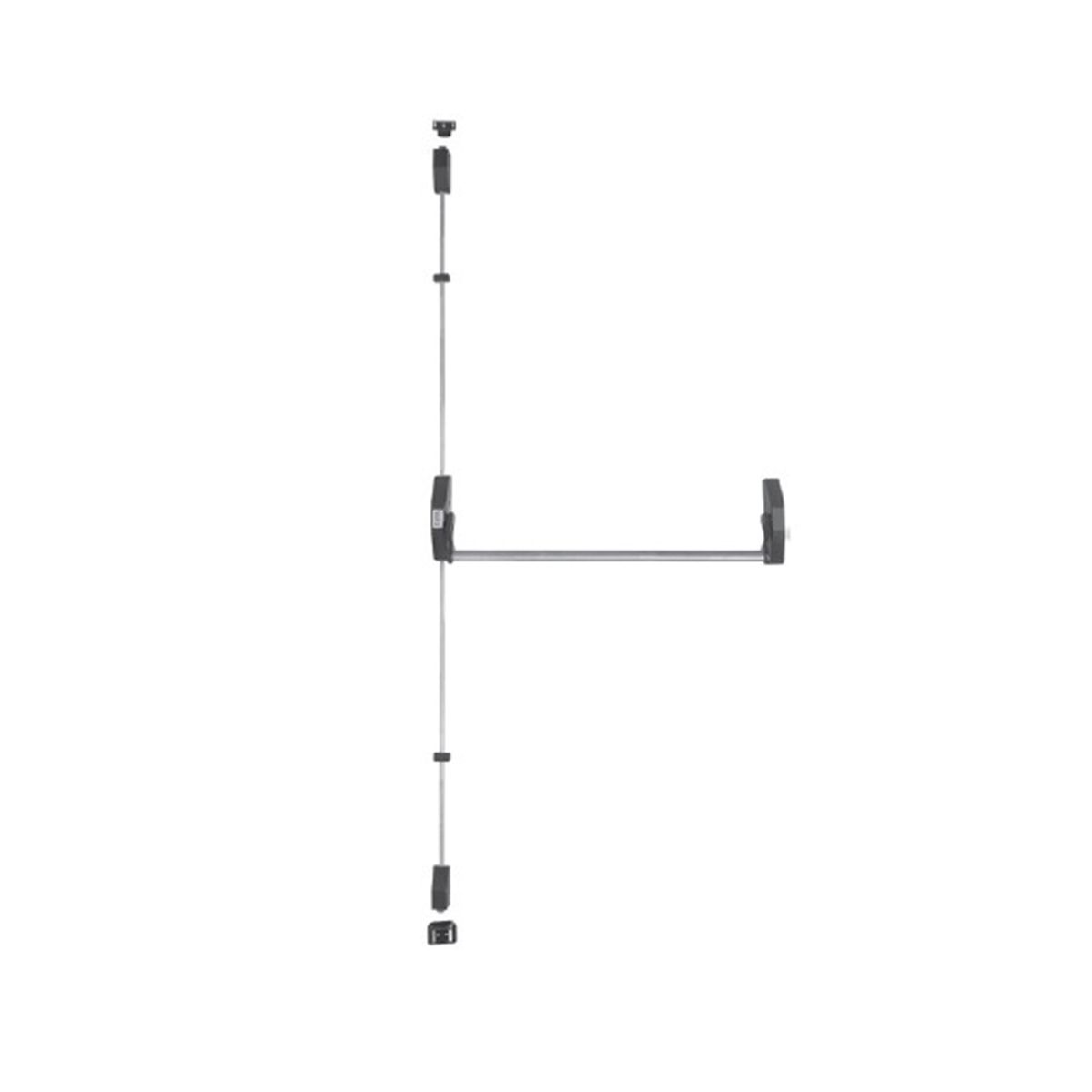

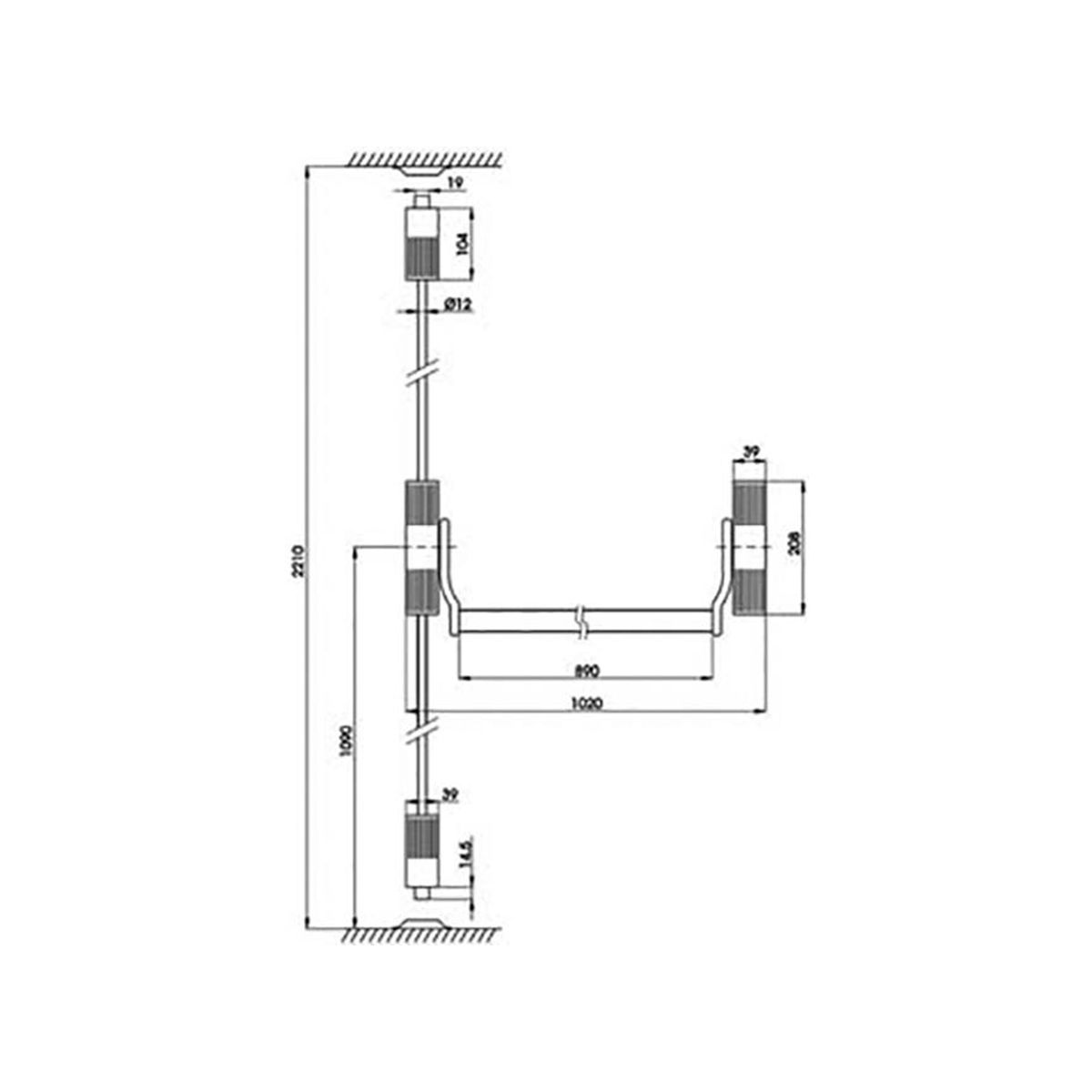

Variant 2
- TESA-1930908NV
Technical Attributes
- Suitable for non-rebated double doors (2 units required)
- 2 locking points
- Max. Door width 900mm
- Max. Door height 2210mm
- Optional outside access device:
- MMPS2SCPL
- MMPP2T5PL
Certification
- BS EN 1125
- 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

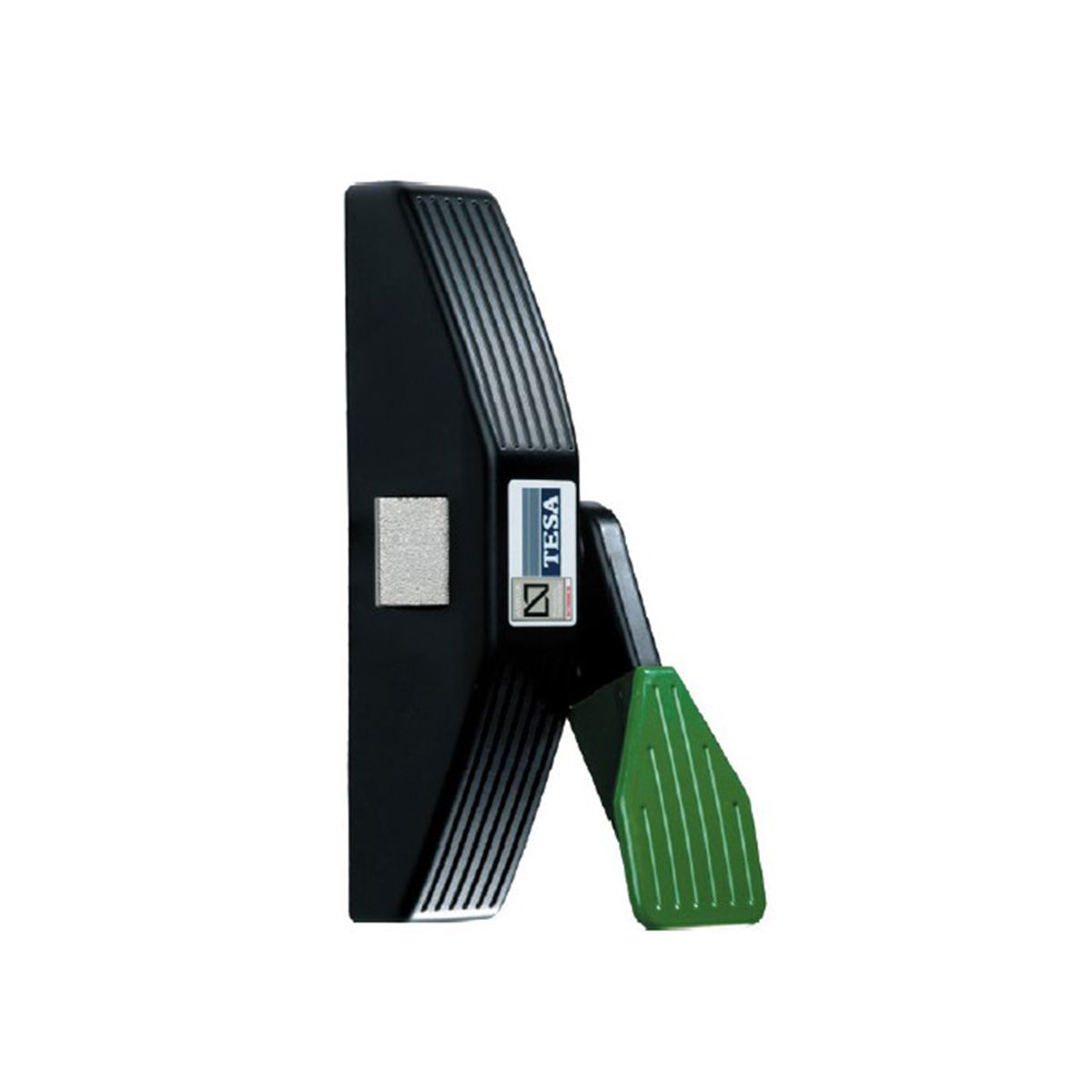

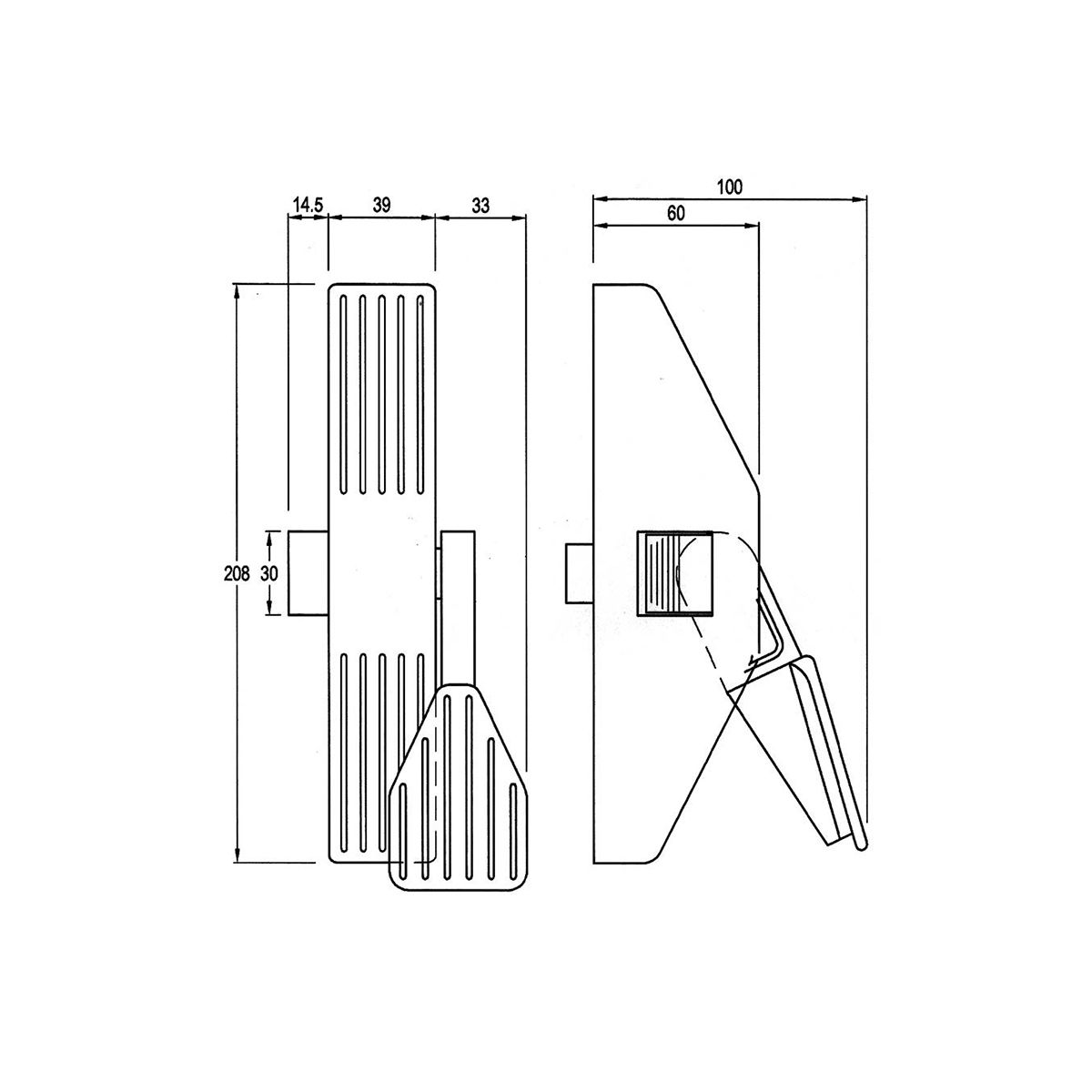

Variant 3
- TESA-TP91008NV
Technical Attributes
- Emergency exit device used when little risk of panic situation
- Suitable for timber and metal doors
- Optional outside access device:
- MMPS2SCPL
- MMPP2T5PL
Certification
- BS EN 179
- 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | B | A
