ExiSAFE Single Door Panic Hardware

Variations

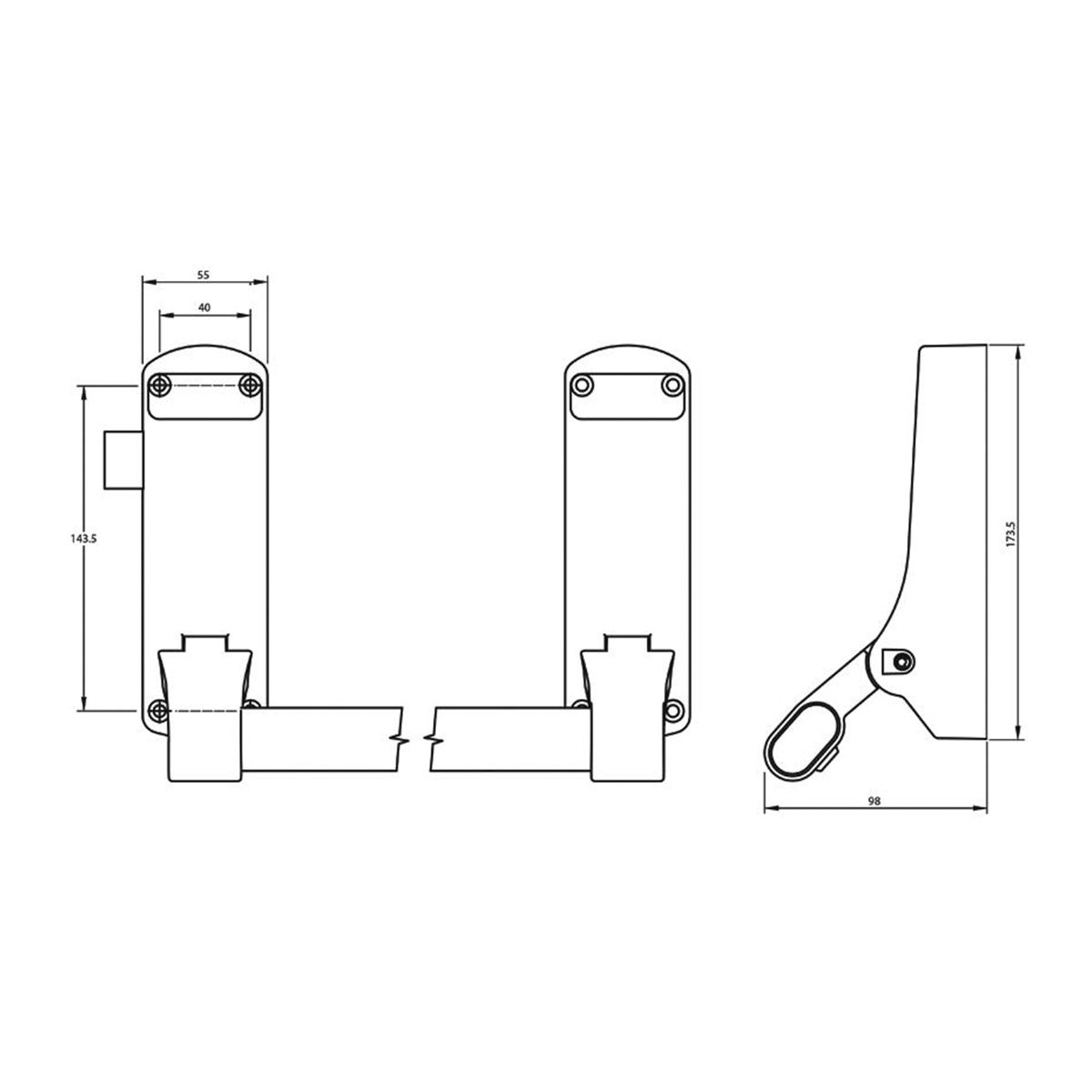

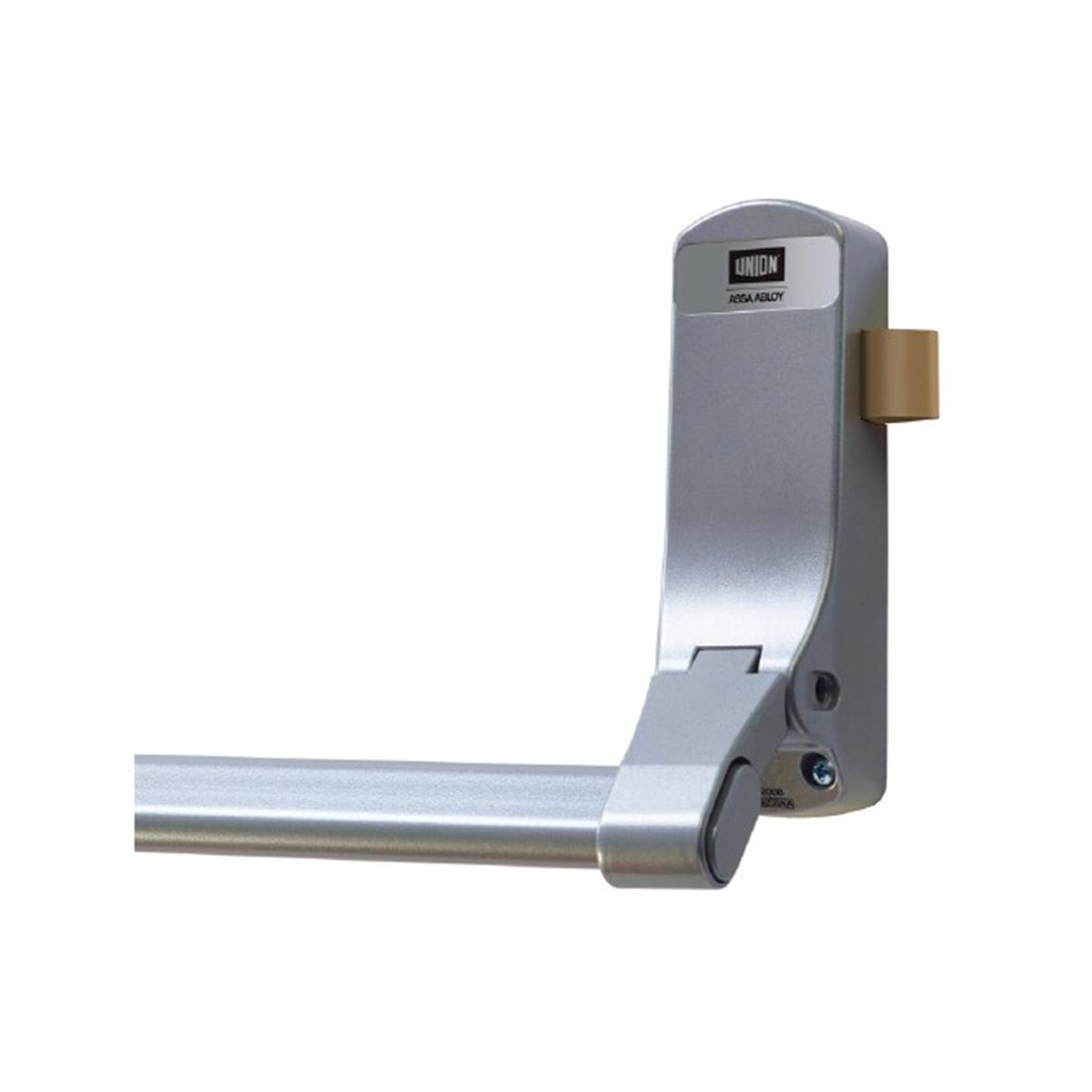

Variant 1

  • UNION
  • J-CE853PL-SIL (timber doors)
  • J-CE853PM-SIL (metal doors)

Technical Attributes

  • Single point lateral locking
  • Suitable for timber (120min) and metal fire doors (240min)
  • Manufactured in Britain
  • 10 Year Guarantee
  • 200,000 cycle durability
  • Max. door width 1230mm
  • Optional Outside Access Device:
  • J-CE855OADK-SIL
  • J-CE855OADL-SIL

Certification

  • BS EN 1125
  • 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

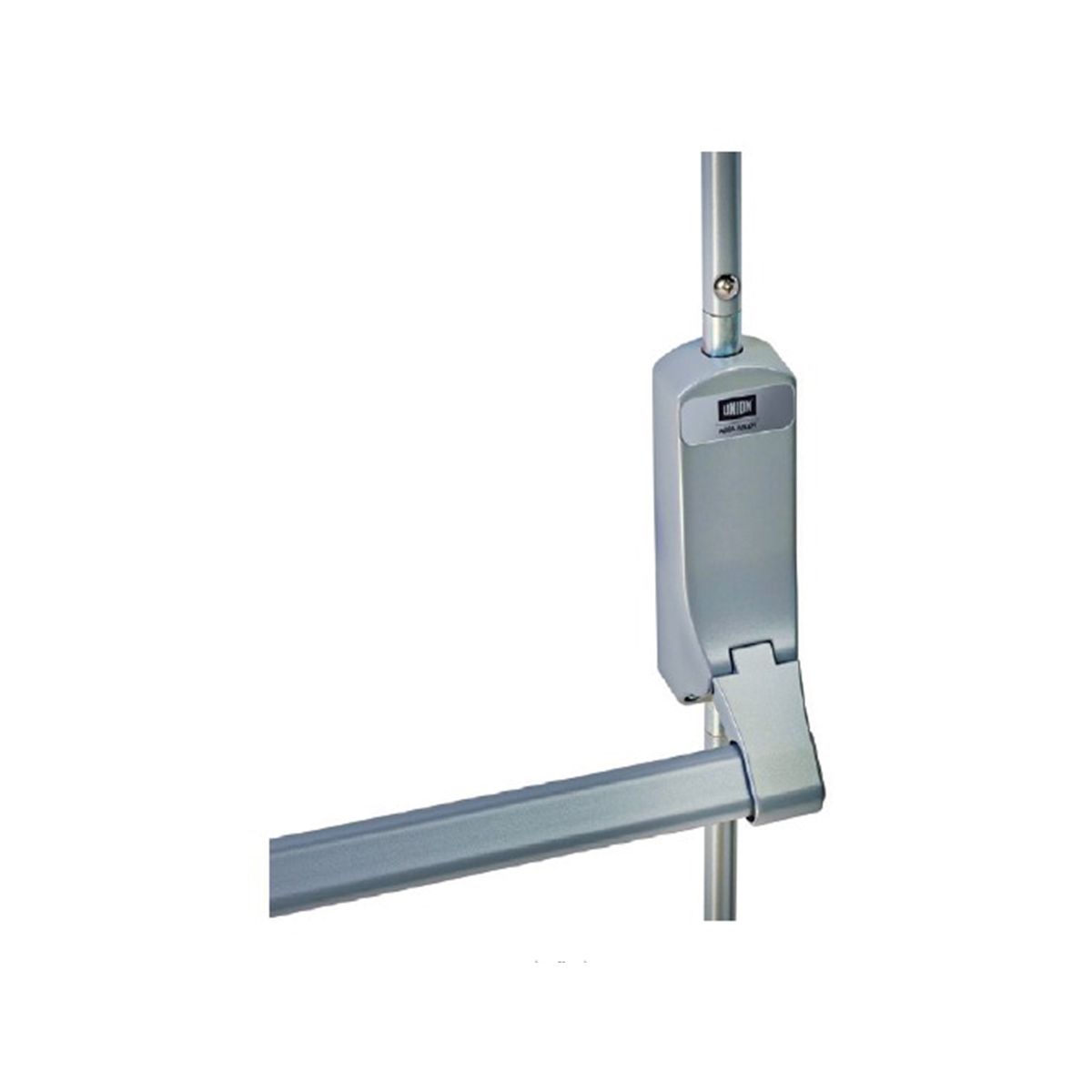

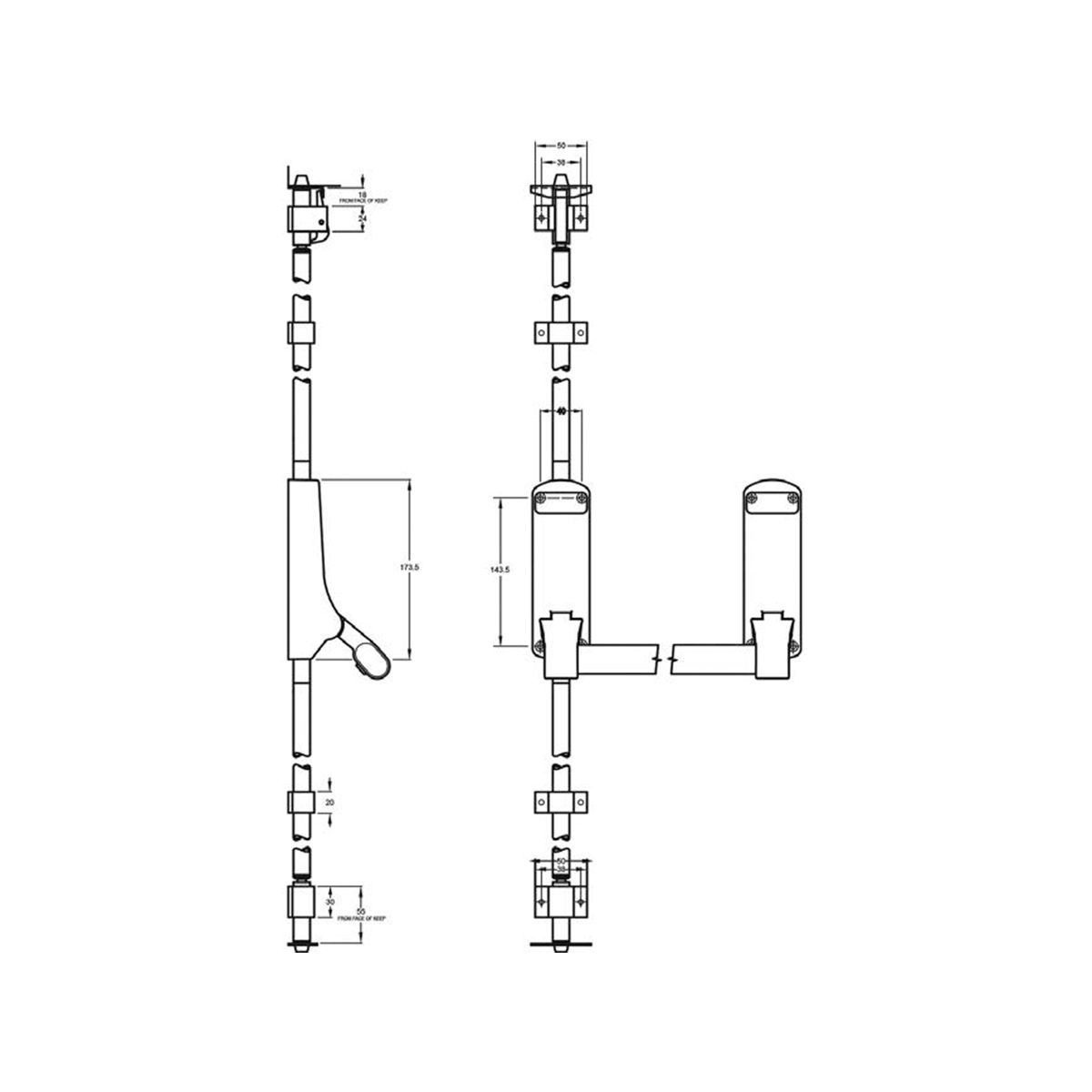

Variant 2

  • UNION
  • J-CE851PB-SIL (timber doors)
  • J-CE851PBM-SIL (metal doors)

Technical Attributes

  • Two-point top and bottom latching
  • Suitable for timber (120min) and metal fire doors (240min)
  • Suitable for non-rebated double doors (will require 2 units)
  • Manufactured in Britain
  • 10 Year Guarantee
  • 200,000 cycle durability
  • Max. door width 1230mm
  • Max. door height 2440mm
  • Optional Outside Access Device:
  • -J-CE855OADL-SIL
  • J-CE855OADK-SIL

Certification

  • BS EN 1125
  • 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

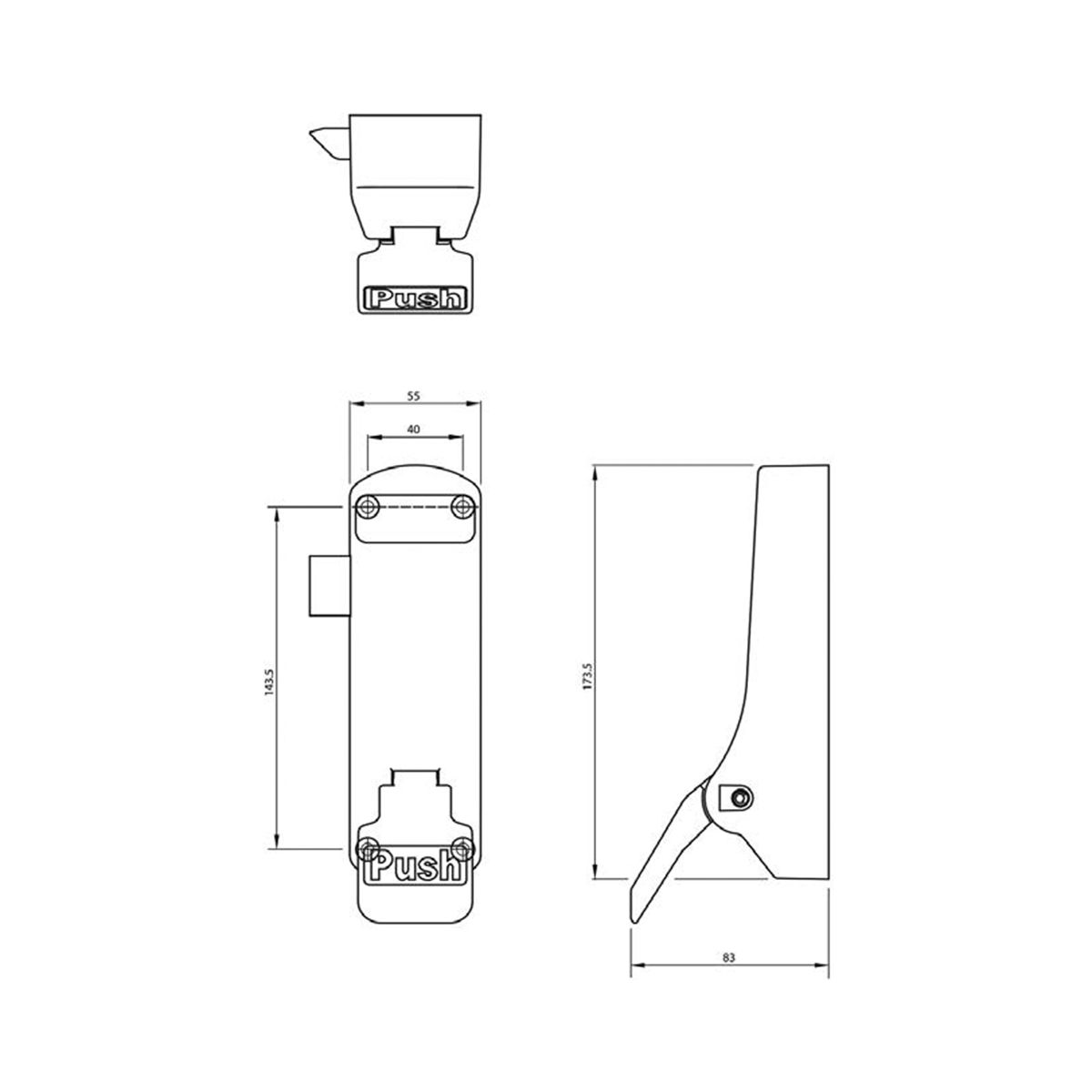

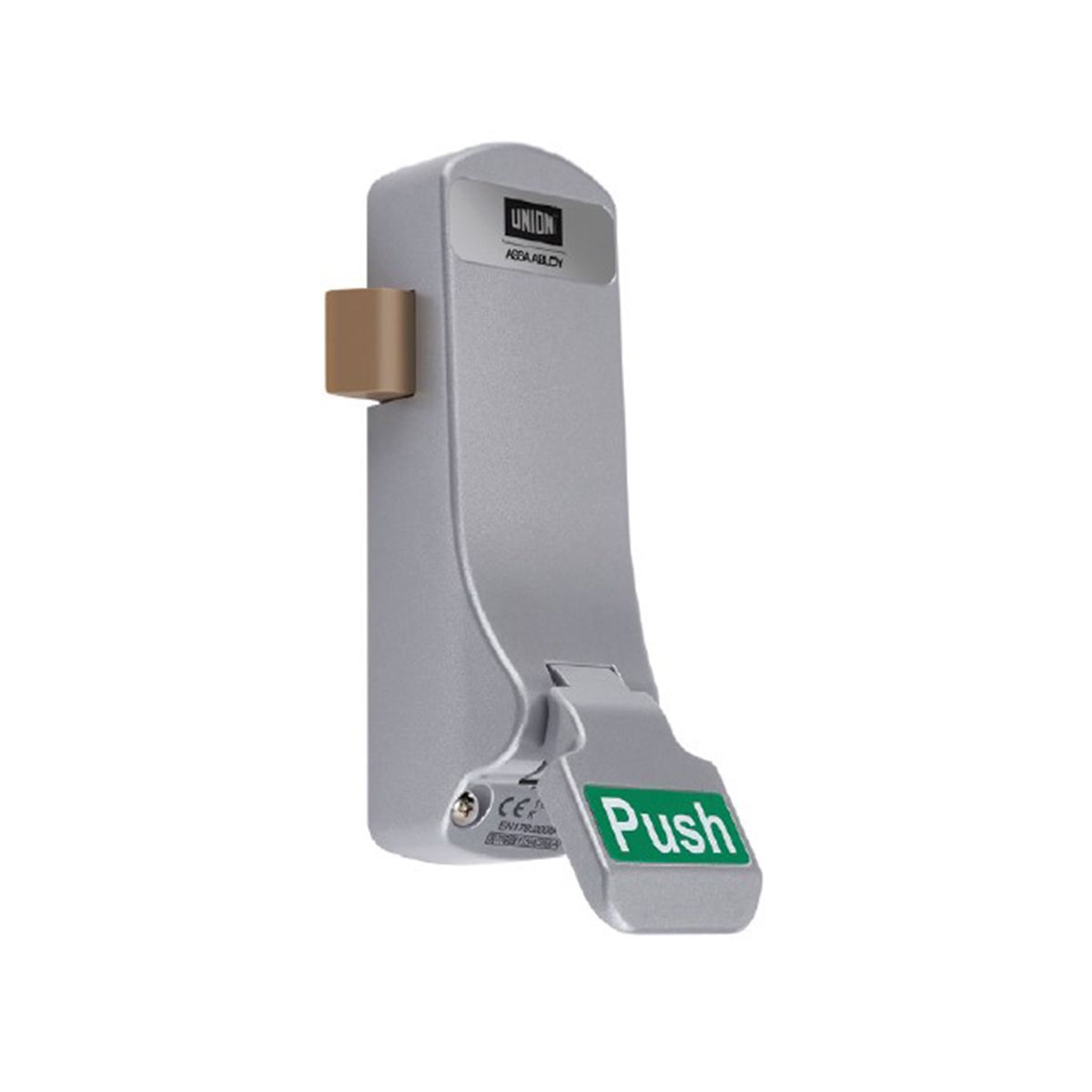

Variant 3

  • UNION
  • J-CE851PB-SIL (timber doors)
  • J-CE851PBM-SIL (metal doors)

Technical Attributes

  • Single point panic latch
  • Suitable for timber (120min) and metal fire doors (240min)
  • Suitable for internal escape route doors
  • Manufactured in Britain
  • 10 Year Guarantee
  • 200,000 cycle durability
  • Max. door width 1230mm
  • Max. door height 2440mm
  • Optional Outside Access Device:
  • -J-CE855OADL-SIL
  • J-CE855OADK-SIL

Certification

  • BS EN 1125
  • 3 | 7 | 6 | B | 1 | 3 | 4 | 2 | B | B
