The 214 Series Door Furniture is 300 x 100 x 2mm thick stainless steel or brass plates with 10mm radius corners. Concealed fixed plates have studs with internal threads located in each corner, visible plates have corresponding countersunk holes and are fixed back to back through the door.
Application Designed for use with 3570 Series Mortice Locks.

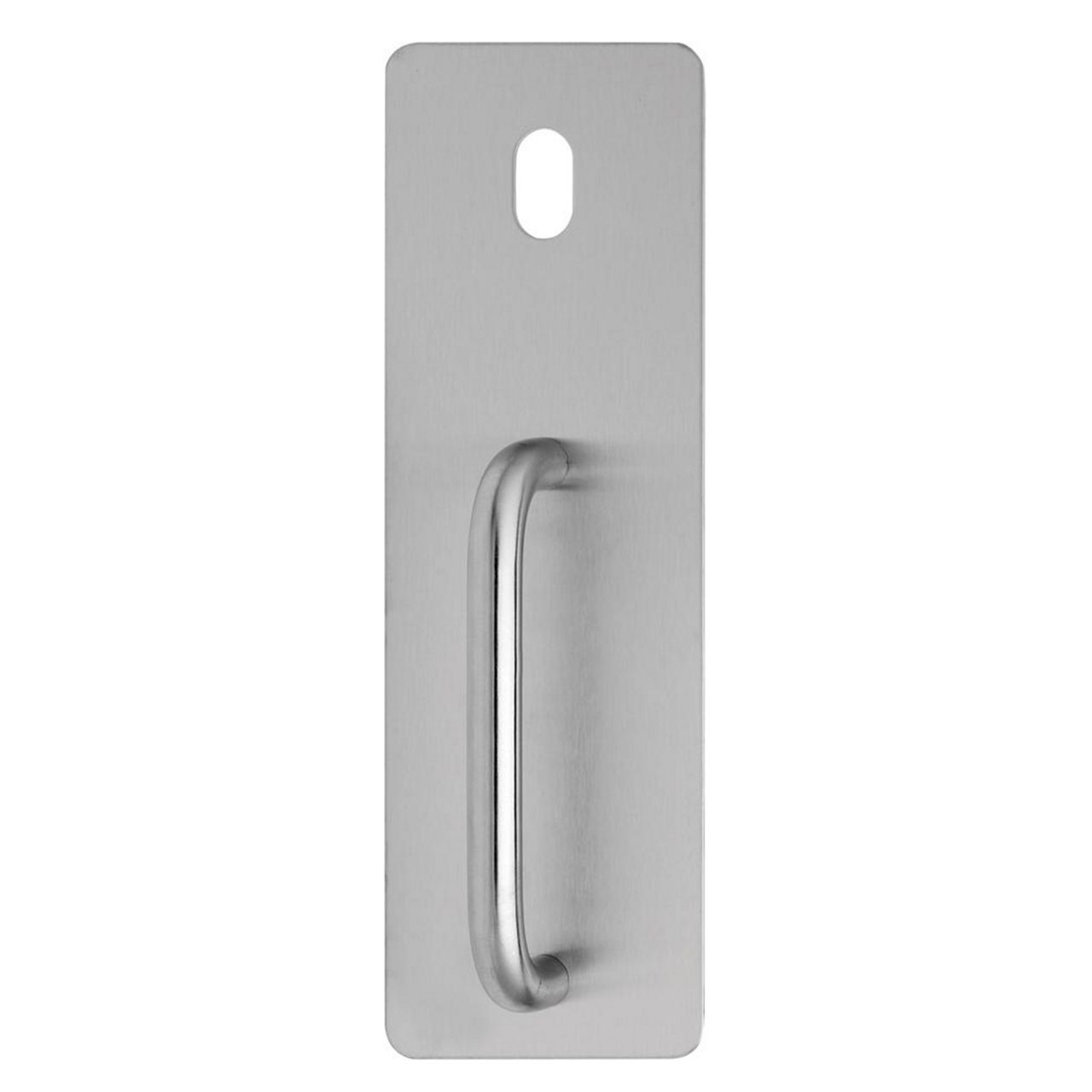

Lockwood 214/215 Series 10mm Radius Corner Push and Pull Plates
Materials Stainless steel or brass.
Door Thickness 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.
