FD461-DC500

Variations

• ASSA ABLOY-FD461-DC500
• EN 1-4

Technical Attributes

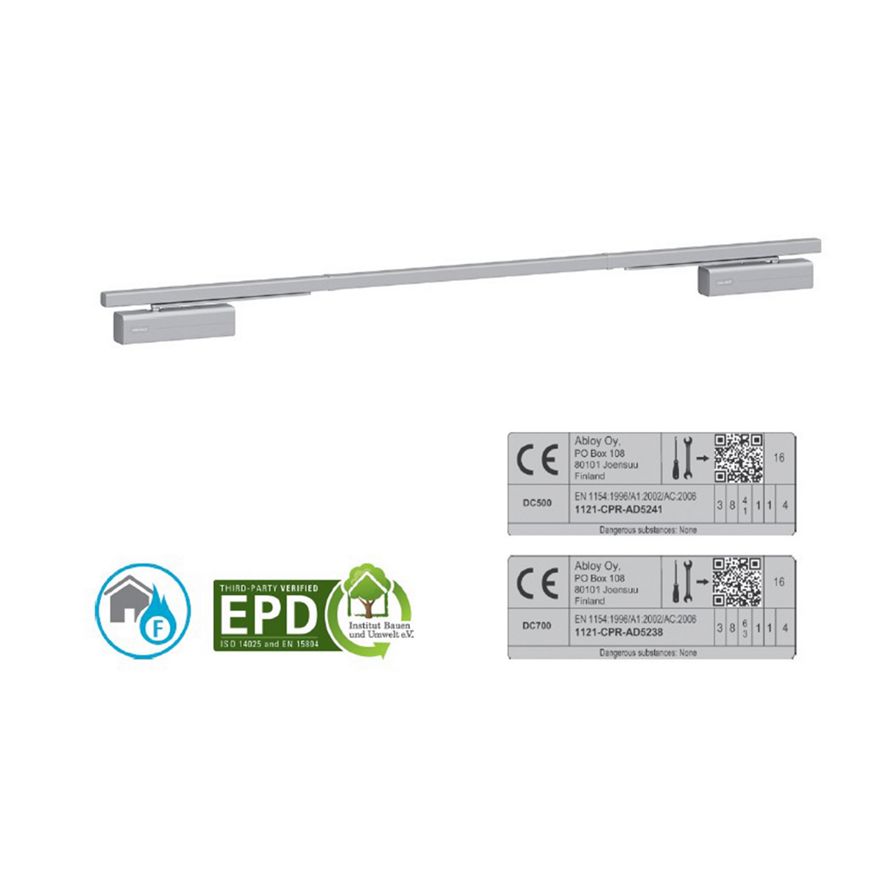

• Door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator
• Certified in compliance with EN 1158, size 1-4
• For double leaf doors 1250 - 2800mm wide
• Correct closing sequence guaranteed for double leaf doors,
• inactive leaf closes before active leaf starts to close
• Active leaf able to stay open in any selected angle up to 150° when inactive leaf is open
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle of active leaf (hinge side / non-hinge side) 150° /
• 120° Opening angle of inactive leaf (hinge side / non-hinge side)
• 170° / 120°
