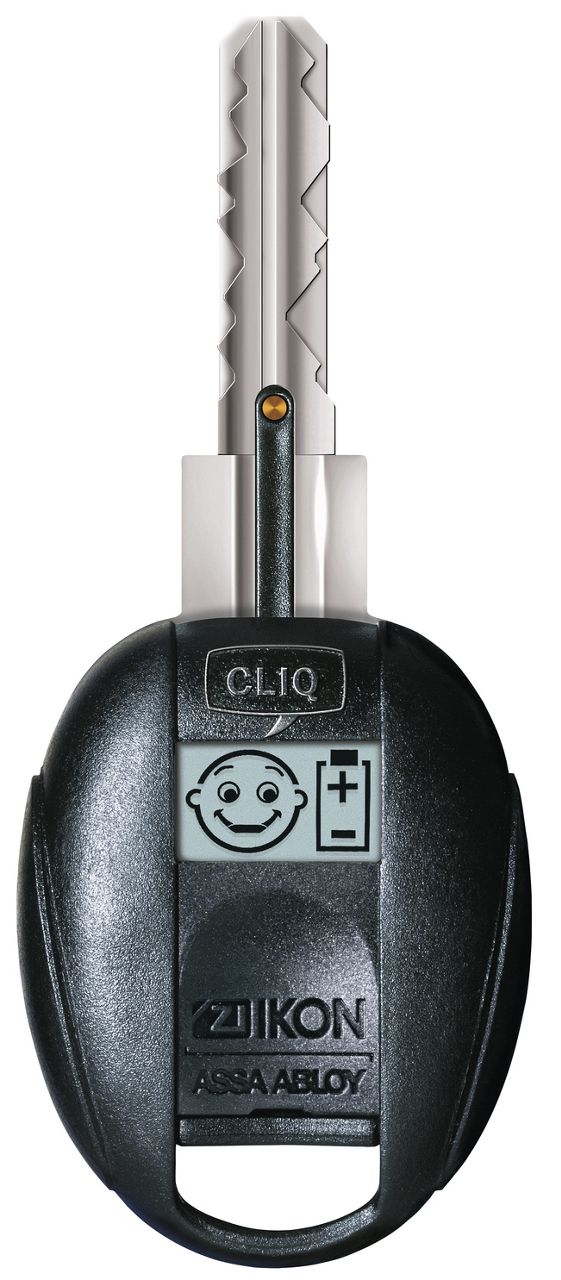

Key VERSO®CLIQ V109,V=E3

Electromechanical user key "Remote"

Overview of Advantages

  • Ideal in combination with the wall programming devices and the mobile programming device
  • Option for direct programming of authorisations without approaching cylinders

Product description

  • Modern reversible keying system with a high mechanical copy protection
  • Unique and locking system encryption

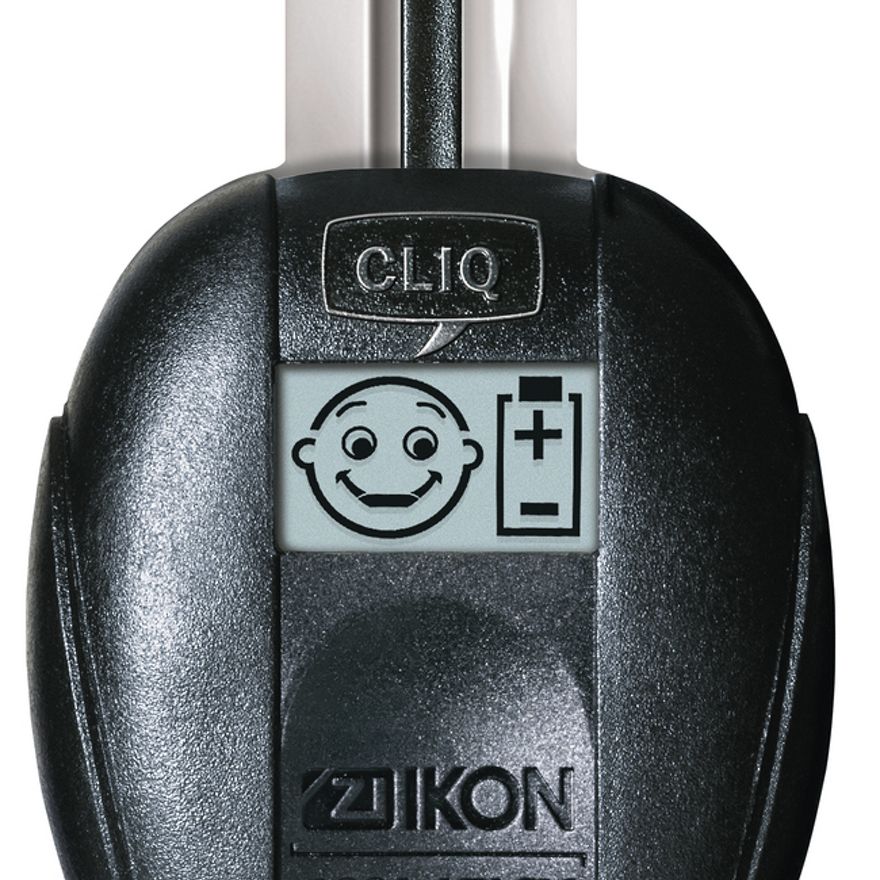

  • Multifunctional LCD display shows access rights and battery status
  • The data and power transmission to the cylinder is contact based
  • The data transmission to the cylinder is highly encrypted
  • Temperature range 0° C to +70° C
  • Splash-proof
  • Power supply via commercially-available lithium battery (CR2025) for approx. 30,000 locking events (by 3 year shelf life)
  • The battery can be easily changed by the user without tools
  • Additionally with time function and event memory for the last 1,000 locking actions
  • Key memory capacity 1,500 cylinder / cylinder groups
  • Option for direct programming of authorisations without approaching cylinders
  • Saves programming procedures
  • Ideal in combination with the wall programming devices and the mobile programming device
  • Standard colour for battery cover: black (RD=SW)
  • Other colours for battery cover: blue (RD=BL), yellow (RD=GE), green (RD=GN), grey (RD=GR), red (RD=RT) and orange (RD=OR)
  • Optionally available with a RFID tranponderchip (AUS=LEGIC PRIME, AUS=LEGIC ADVANT, AUS=MIFARE Classic®, AUS=MIFARE® DESFire® EV1, AUS=MIFARE® DESFire® EV2, AUS=EM4102, AUS=HITAG 1 or AUS=HITAG 2) integrated in the battery cover
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb

Scope of delivery

  • 1 electromechanical user key including battery

Note

  • The colour of the VZ02,AUS=0 key battery cover can be adjusted with order or retroactively
