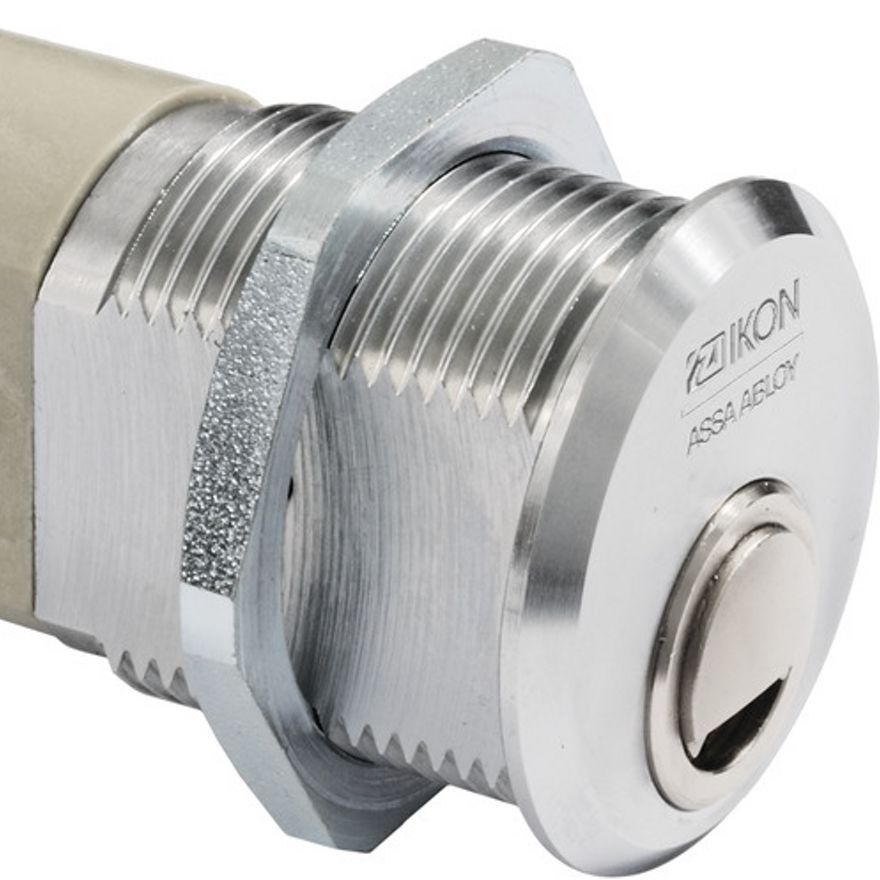

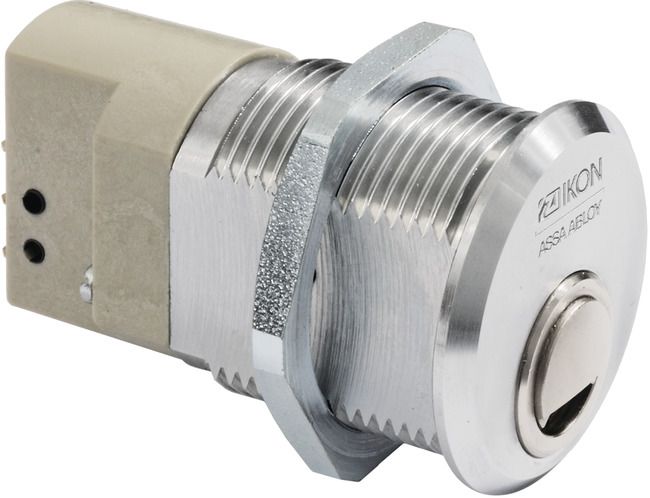

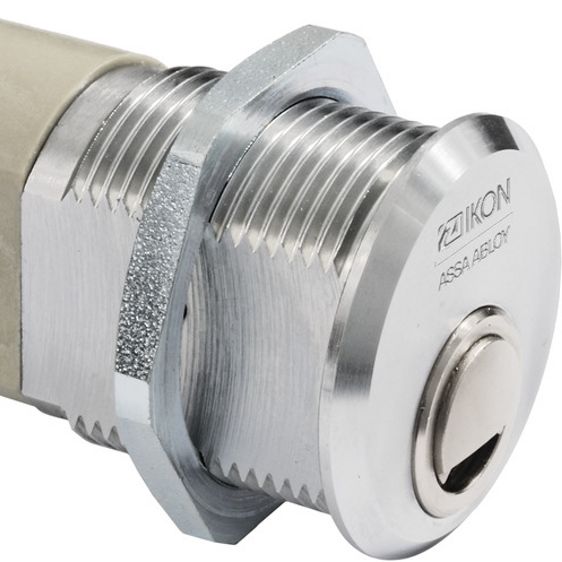

Switch cylinder VERSO®CLIQ V511

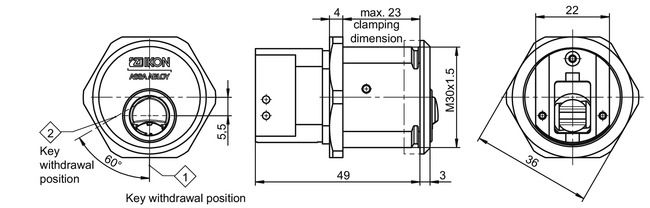

30 mm Diameter , laterally flattened to 22 mm - without key

Product description

Available as mechanical or electromechanical version (V=)
Brass cylinder
Standard finish, satin nickel-plated (OF=MV)
Switching cylinder with 2 key withdrawal positions
Two microswitches F4T 7-GP UL (Burgess) (VAC 250 V/ resistive load 5A, VAC 250 V/ inductive load 0.5 A)
Key rotation 60°
A rotation actuates a switch device (e.g. underground car parks, etc.).
Tumbler elements with special wear-resistant alloy
Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb

Scope of delivery
