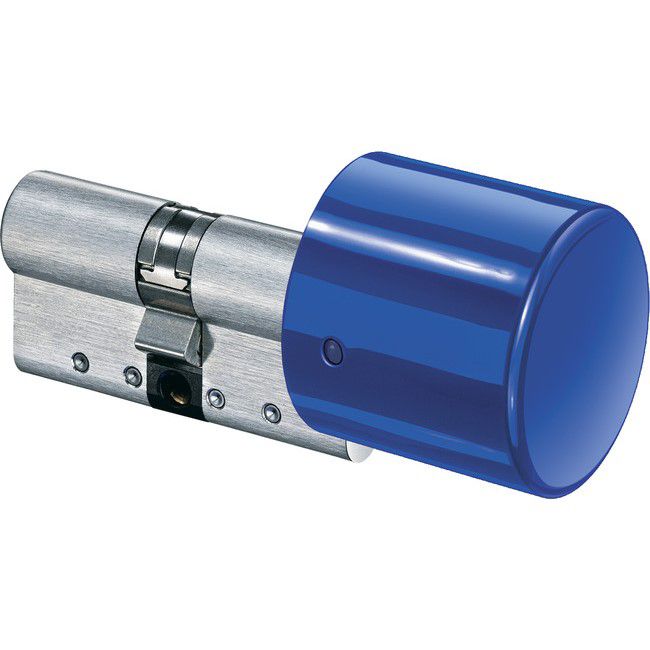

Profile-knob cylinder VERSO®CLIQ V534,KNF=7

Nylon round knob, anodised aluminium, 42 mm diameter - without key

Product description

Available as mechanical or electromechanical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)
Standard knob colour blue (KNF=7BL)

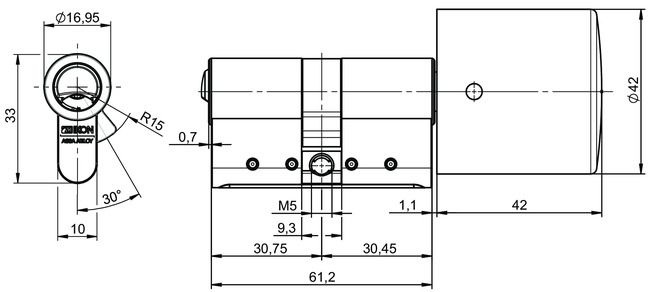

Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system
Standard cam position (SST=30°)
Optionally with magnetic locking cam reset function (VAR=FS)
Cam made of break and corrosion-resistant nickel silver profile
Tumbler elements with special wear-resistant alloy
Dust and rain cover for one side available under (SUR=1)
Optionally available with anti drilling protection class 2 (AB=2)
Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb
Optional available without audit trail (V2=OHNE AUDIT)
Optionally available with anti-killing spree function: With this function the knob is disengaged as the key is entering the cylinder on the other side (VAR=1901509+3+ENTKUPPL.)

Scope of delivery

1 profile-knob cylinder
1 cylinder fixing screw M5 x 85 mm

Ordering Information

The knob is always on the inside of the cylinder (B)
Pay attention for deviating knob finishes!

Profile-knob cylinder VERSO®CLIQ V534,KNF=7

PIV CERT
ATEX
For use in explosion-prone areas
Security Card

	Order number	Product
	VZ03	Maintenance spray
	VZ05	Maintenance spray

	Order number	Product
	V109,V=M	Key VERSO^®CLIQ
	V109,V=E1	Key VERSO^®CLIQ
	V109,V=E2	Key VERSO^®CLIQ
	V109,V=E3	Key VERSO^®CLIQ
	V109,V=B1/B2/B3	Key VERSO^®CLIQ
	V109,V=PR/PSM/PN	Key VERSO^®CLIQ
	V109,V=G1	Key VERSO^®CLIQ

Article number	KNF= (Knob shape)	OF= (Surface)	L= (Length)	V= (Version)
V534,KNF=7	7BL (Blue nylon round knob, 42mm diameter)	MV/MV (Matt, nickel-plated)	30/30	M (Mechanical version)
	7BL (Blue nylon round knob, 42mm diameter)	MV/MV (Matt, nickel-plated)	30/30	E1 (Electromechanical version "Basic")
	7BL (Blue nylon round knob, 42mm diameter)	MV/MV (Matt, nickel-plated)	30/30	E2 (Electromechanical version "Time")

Special identification marking

Description	Info
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)	per cylinder

Explosion protection

ATEX=	Description	Info
II 2G Ex ib IIC T4 Gb	Locking cylinders for Zone 1 hazardous areas	per cylinder

Drilling protection

AB=	Area of application	Info
2	For profile knob, half and special cylinders	per cylinder

Test certificate

SZ=	AB=	Area of application	Description	Info
DIN	2	For profile half and knob cylinders	DIN-tested profile cylinder	per cylinder
VDS	2	For profile half cylinder	VdS-approved profile cylinder	per cylinder

Special finish

OF=	Area of application	Info
MV	For profile and locking lever cylinders	per cylinder
MC	For profile and locking lever cylinders	per cylinder
MP	For profile and locking lever cylinders	per cylinder
MG	For profile and locking lever cylinders	per cylinder
../..	For profile double and knob cylinders	per cylinder

Dust and rain protection

SUR=	Area of application	Info
1	For profile knob and double cylinder, double cylinder one side blind, half cylinder and special cylinder	per cylinder

Cogwheel version

SST=	Area of application	Description
K901179	Mul-T-Lock type	Diameter 24 mm / Module 2 / 10 teeth

Variant

VAR=	Area of application	Description	Info
1901509+3+ENTKUPPL	For profile knob cylinders	“Anti-killing spree” cylinder with special coupling mechanism magnetic cam reset function	per cylinder

Version

V2=	Description	Info
OHNE AUDIT	Cylinder without events list, frontal marking with symbol "§"	per cylinder

Installation lengths of double and knob cylinders

=28/28
=28/30
=28/35
=28/40
=28/45

=30/28
=30/30
=30/35
=30/40
=30/45
=30/50
=30/55
=30/60
=30/65
=30/70
=30/75
=30/80

=35/28
=35/30
=35/35
=35/40
=35/45
=35/50
=35/55
=35/60
=35/65
=35/70

=40/28
=40/30
=40/35
=40/40
=40/45
=40/50
=40/55
=40/60
=40/65
=40/70

=45/28
=45/30
=45/35
=45/40
=45/45
=45/50
=45/55
=45/60
=45/65

=50/30
=50/35
=50/40
=50/45
=50/50
=50/55
=50/60

=55/30
=55/35
=55/40
=55/45
=55/50
=55/55

=60/30
=60/35
=60/40
=60/45
=60/50

=65/30
=65/35
=65/40
=65/45

=70/30
=70/35
=70/40

=75/30
=75/35

=80/30
