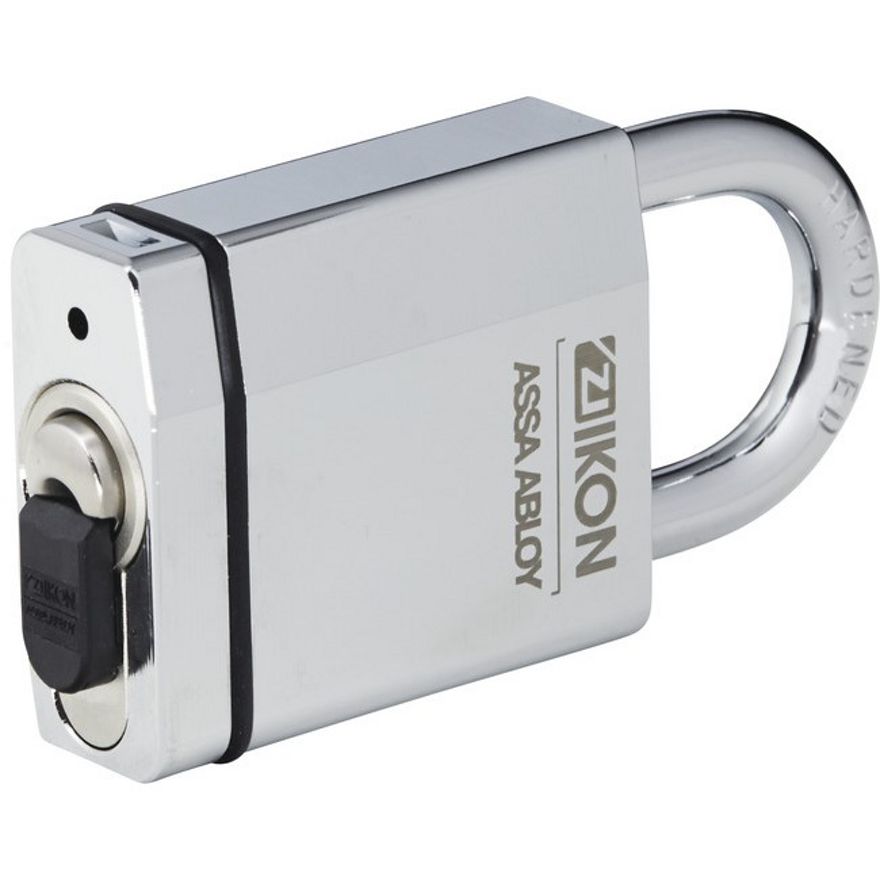

Cylinder padlock VERSO®CLIQ V316

With positive locking - without key

Product description

• Available as mechanical or electromechanical version (V=)
• Housing chrome-plated in brass
• Cylinder, nickel-plated brass satin
• Standard shackle clearance height 25 mm (AUS=LH25)
• Optionally with non-corroding shackles (AUS=LH25-NIRO)
• Other shackle heights (AUS=LH50, LH75, LH28/5)
• Steel shackle, diameter 8 mm, hardened and chrome-plated
• Steel shackle diameter 5 mm at shackle height 28 mm (AUS=LH28/5), hardened and chrome-plated
• With positive locking as standard
• Optionally available without controlled locking (AUS2= OHNE ZWANGSSCHL)
• Standard version as per DIN EN 12320 class 3 (not valid for AUS=LH28/5)
• Standard with dust and rain cover (SUR=1)
• Optionally without dust and rain cover (SUR=0)
• Optionally IP67 certified with protective cap (SUR=2)
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb

Scope of delivery

• 1 cylinder padlock

Ordering Information

• Subsequent modification to SUR=2 only available if originally ordered as SUR=0
