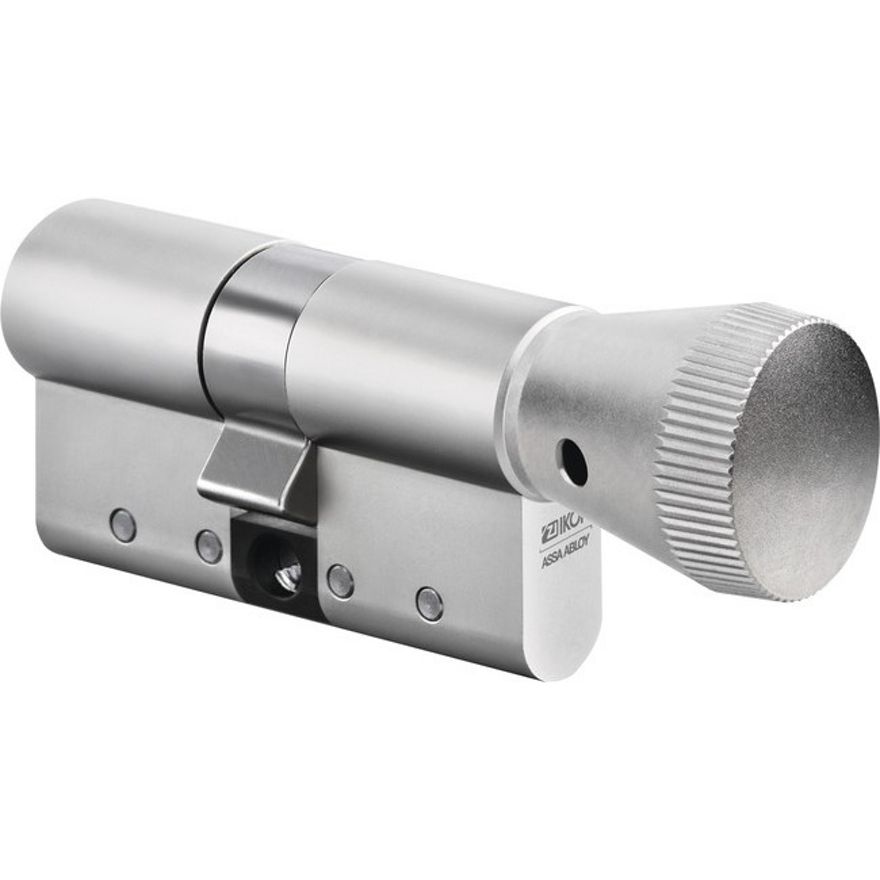

Profile-knob cylinder eCLIQ N534,KNF=2

Small tapered knob with 28 mm diameter - without key

Product description

Available as rotary secured or electronical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)
Standard knob colour satin nickel-plated (KNF=2MV)
Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system
Optional, differing basic cylinder length of 56 mm (C) - A/B (L=28/28)
Standard locking cam position (SST=30°); differing locking bit position available, optionally available with SST=FLEX
Optionally with magnetic locking cam reset function (VAR=FS)
Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
Optionally available with anti drilling protection class 2 (AB=2)
Cam made of break-proof, corrosion-resistant stainless steel
Maintenance-free for up to 200,000 cycles
Splash-proof IP54
Dust and rain cover available (SUR=3) IP55
Optionally VdS★★★ (SZ=VDS-BZ+, AB=3)
Optionally DIN EN 15684 with anti drilling protection class 2 (SZ=DIN, AB=2)
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Optionally available with anti-killing spree function: With this function the knob is disengaged as the key is entering the cylinder on the other side (VAR=1901509+3+ENTKUPPL.)

Scope of delivery

1 profile-knob cylinder
1 cylinder fixing screw M5 x 85 mm

Ordering Information

The knob is always on the inside of the cylinder (B)

Profile-knob cylinder eCLIQ N534,KNF=2

VdS
PIV CERT
ATEX
For use in explosion-prone areas
Security Card

	Order number	Product
	N109,V=E1	Key eCLIQ
	N109,V=E2	Key eCLIQ
	N109,V=E3	Key eCLIQ
	N109,V=B1/B2/B3	Key eCLIQ
	N109,V=PR/PSM/PN	Key eCLIQ

Article number	KNF= (Knob shape)	OF= (Surface)	L= (Length)	V= (Version)
N534,KNF=2	2MV (Small tapered knob, satin nickel plated, 28mm diameter)	MV/MV (Matt, nickel-plated)	30/30	D (Rotary secured version)
	2MV (Small tapered knob, satin nickel plated, 28mm diameter)	MV/MV (Matt, nickel-plated)	30/30	E (Electronic version)

Drilling protection

AB=	Description	Area of application	Info
-/2	Security category 2 drilling protection	For profile double cylinders	per side
2/2	Security category 2 drilling protection	For profile double cylinders	per cylinder
2/-	Security category 2 drilling protection	For profile double cylinders	per side

Test certificate

SZ=	AB=	Description	Area of application	Info
DIN	-/2	DIN-tested profile cylinder	For profile double cylinders	per side
DIN	2/2	DIN-tested profile cylinder	For profile double cylinders	per cylinder
VDS	-/3	VdS-approved profile cylinder	For profile double cylinders	per side
VDS	3/-	VdS-approved profile cylinder	For profile double cylinders	per side
DIN	2/-	DIN-tested profile cylinder	For profile double cylinders	per side
VDS	3/3	VdS-approved profile cylinder	For profile double cylinders	per cylinder

Special finish

OF=	Area of application	Info
MC	For profile and locking lever cylinders	per cylinder
MP	For profile and locking lever cylinders	per cylinder
MV	For profile and locking lever cylinders	per cylinder
MG	For profile and locking lever cylinders	per cylinder
../..	For profile double and knob cylinders	per cylinder

Dust and rain protection

SUR=	Area of application	Info
3/-	For profile double cylinders	per side
-/3	For profile double cylinders	per side

Cam position and free wheeling function

SST=	Description
270-90	270-90 degrees
270-0	270-0 degrees
90-270	90-270 degrees
270-180	270-180 degrees
135-180	135-180 degrees
0-90	0-90 degrees
180-90	180-90 degrees
180-270	180-270 degrees
135-225	135-225 degrees
90-180	90-180 degrees
330-90	330-90 degrees
FZG	Freewheeling cylinder for gear locks
270-30	270-30 degrees

Cogwheel version

SST=	Area of application	Description
K901188	Italian type	Diameter 27 mm / Module 1,5 / 16 teeth
K901180	VIRO/IKON .138 type	Diameter 30 mm / Module 1,5 / 18 teeth
K901293	Laperche type	Diameter 24 mm / Module 1,5 / 14 teeth
K901179	Mul-T-Lock type	Diameter 24 mm / Module 2 / 10 teeth

Special identification marking

Description	Info
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)	per cylinder

Explosion protection

ATEX=	Description	Info
II 2G Ex ib IIB T4 Gb	Locking cylinders for Zone 1 hazardous areas	per cylinder

Version

V2=	AUS3=	Description	Info
	ONLINE	Cylinder with function "Online Open", frontal marking with symbol "@"	per cylinder
	SEQUENCE	Cylinder with function "two-man rule", frontal marking with symbol "&"	per cylinder
OHNE AUDIT		Cylinder without events list, frontal marking with symbol "§"	per cylinder

Installation lengths of double and knob cylinders

=28/28
=28/30
=28/35
=28/40
=28/45

=30/28
=30/30
=30/35
=30/40
=30/45
=30/50
=30/55
=30/60
=30/65
=30/70
=30/75
=30/80

=35/28
=35/30
=35/35
=35/40
=35/45
=35/50
=35/55
=35/60
=35/65
=35/70

=40/28
=40/30
=40/35
=40/40
=40/45
=40/50
=40/55
=40/60
=40/65
=40/70

=45/28
=45/30
=45/35
=45/40
=45/45
=45/50
=45/55
=45/60
=45/65

=50/30
=50/35
=50/40
=50/45
=50/50
=50/55
=50/60

=55/30
=55/35
=55/40
=55/45
=55/50
=55/55

=60/30
=60/35
=60/40
=60/45
=60/50

=65/30
=65/35
=65/40
=65/45

=70/30
=70/35
=70/40

=75/30
=75/35

=80/30

Variant

VAR=	Description	Area of application	Info
K901310-X-BIFFAR	Double cam with 2 outputs arranged 180° from each other	For profile cylinder	per cylinder

Knob colours

KNF=	OF=	Description	Info
2BR	BR		Standard
2PC	PC
2PV	PV
7F3	F3		Standard
7GN	GN
7DRT	DRT	similar to RAL 3007
7LGR	LGR	similar to RAL 7035
7GE	GE
92MV	MV		Standard
94MV	MV		Standard
94MP	MP
94PV	PV
