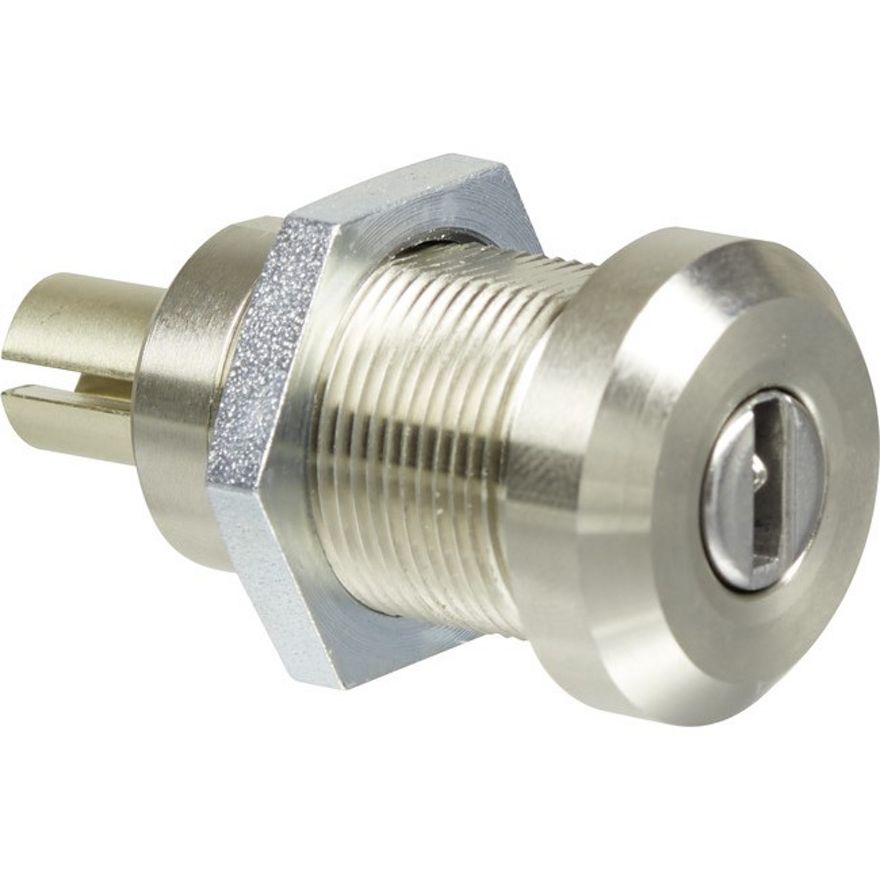

Furniture lock eCLIQ N924

Shaft diameter 19 mm - without key

Product description

  • Available as rotary secured or electronical version (V=)
  • Closing travel 180°, key withdrawal at 0° and 180°
  • Brass cylinder housing components
  • Basic cylinder length 33 mm
  • Standard finish, satin nickel-plated (OF=MV)
  • With adapter for drive linkage
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
  • Maintenance-free for up to 200,000 cycles
  • Dust and rain cover available (SUR=1) IP55

Scope of delivery

  • 1 furniture cylinder
