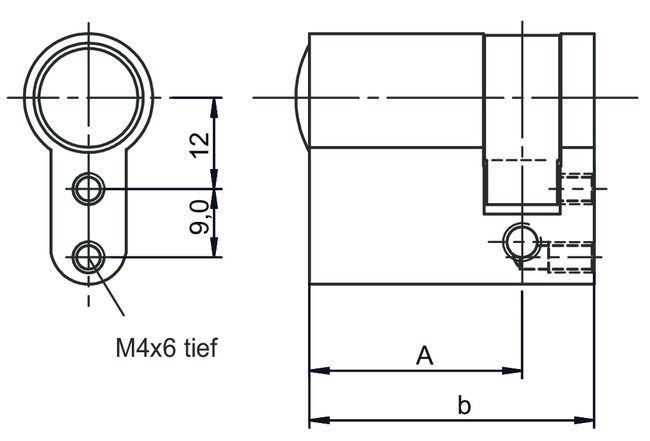

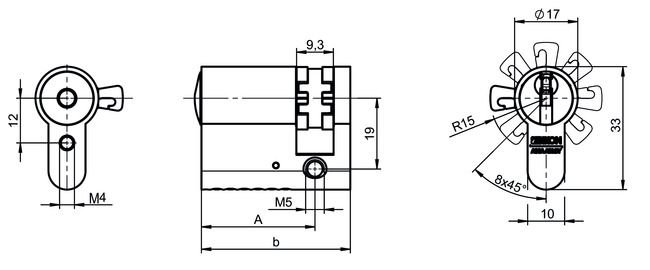

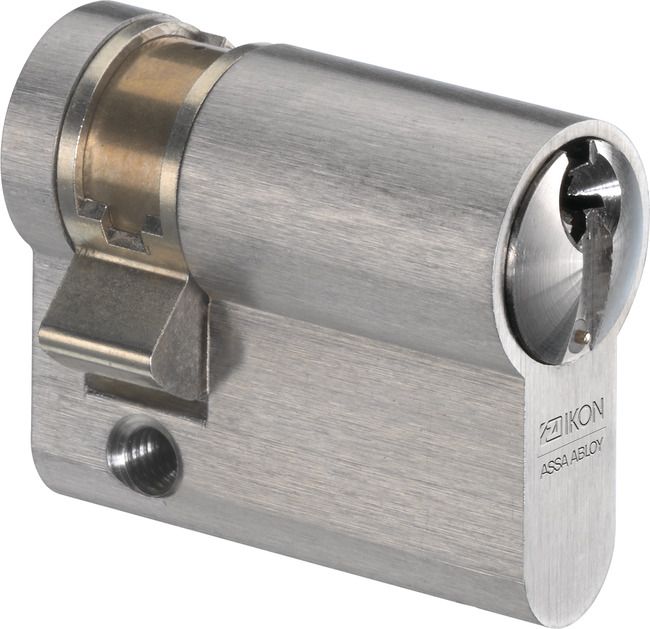

Profile-half cylinder +CLIQ .532+CLIQ

Without key

Product description

• For IKON locking systems in the systems TK5, SK5, SK6, TK6, SK7
• Brass cylinder housing components
• Standard finish, satin nickel-plated (OF=MV)
• Basic cylinder length for systems TK5/SK5/SK6 41mm - A (L=30/10), for systems TK6/SK7 46mm - A (L=35/10) - other installation lengths available
• Adjustable locking cam
• Cam made of break and corrosion-resistant nickel silver profile
• Core pins made of special wear-resistant bronze
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G EX IB IIB T4 Gb

Scope of delivery

• 1 profile half-cylinder
• 1 cylinder fixing screw M5 x 85 mm

Ordering Information

• Attention: VAR=1901229+3+2MAL M4 is offered. This variant offers a second backside fixing thread M4
