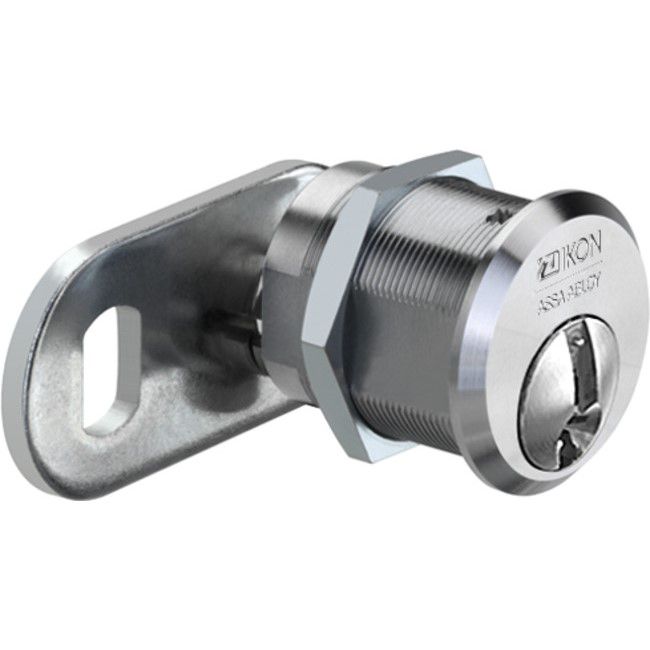

Locking lever cylinder +CLIQ .923+CLIQ

25 mm diameter, laterally flattened to 22 mm - without key

Product description

For IKON locking systems in the system SK6, SK7
Brass cylinder housing components
Standard finish, matt chrome-plated (OF=MC)

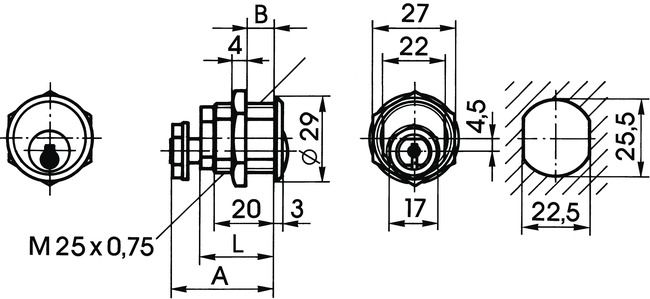

Dimension in mm A, L, B: 38, 29, 21
Fixing with M25 x 0.75 housing nut
Standard locking lever (SLHB=1645009)
Locking path and locking lever path 90º left or right
Key withdrawal when locking lever is closed
Core pins made of special wear-resistant bronze
Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G EX IB IIB T4 Gb

Scope of delivery

Ordering Information
