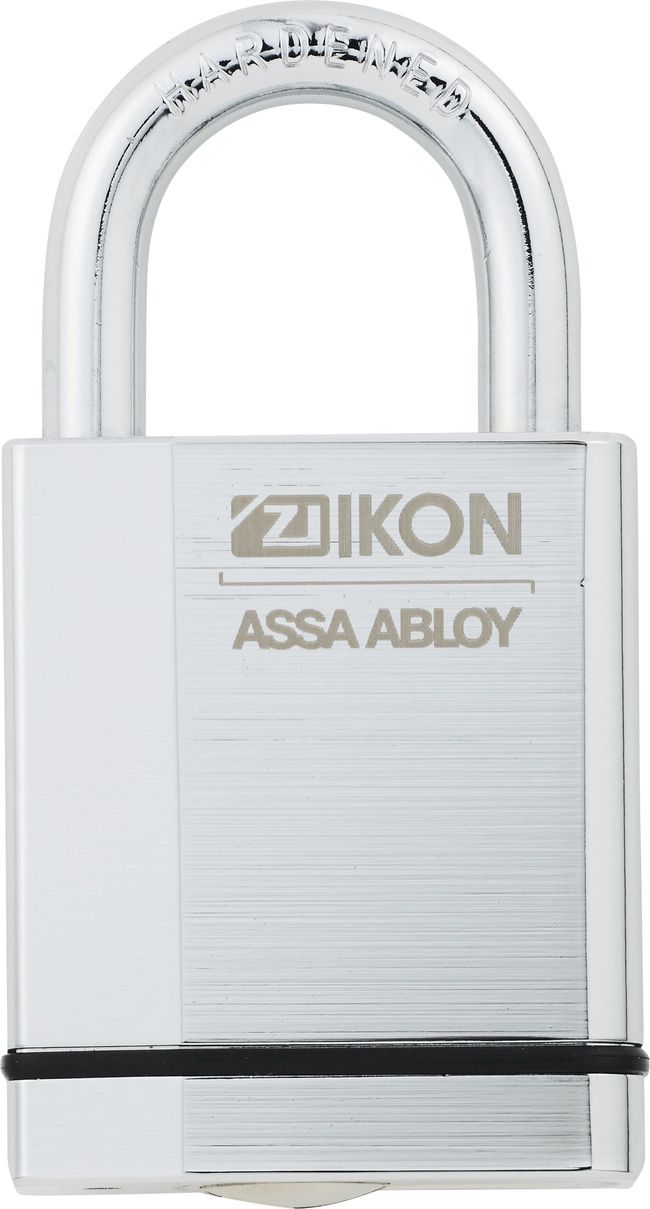

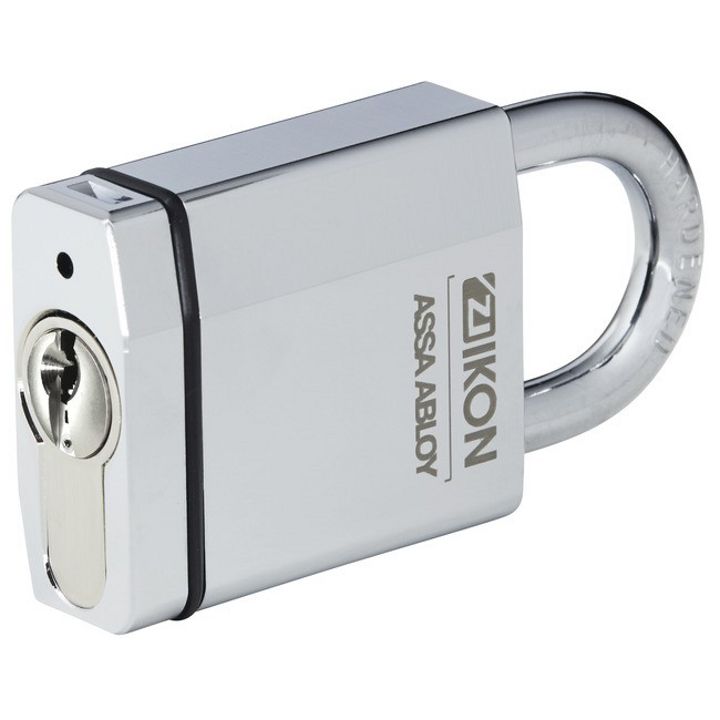

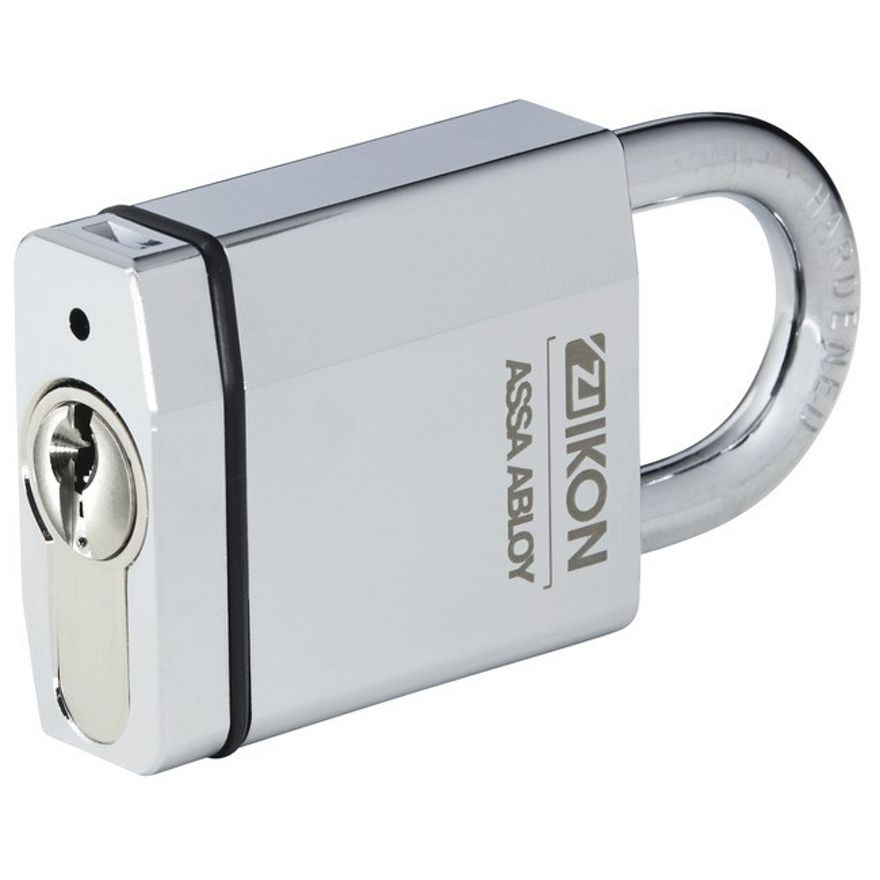

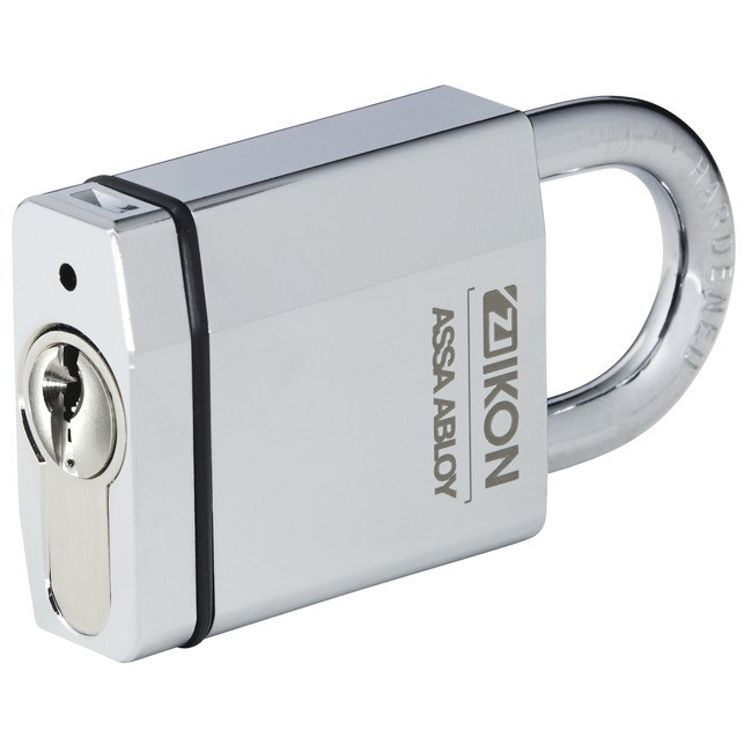

Cylinder padlock +CLIQ .316+CLIQ

With positive locking - without key

Product description

• For IKON locking systems in the system SK6, SK7

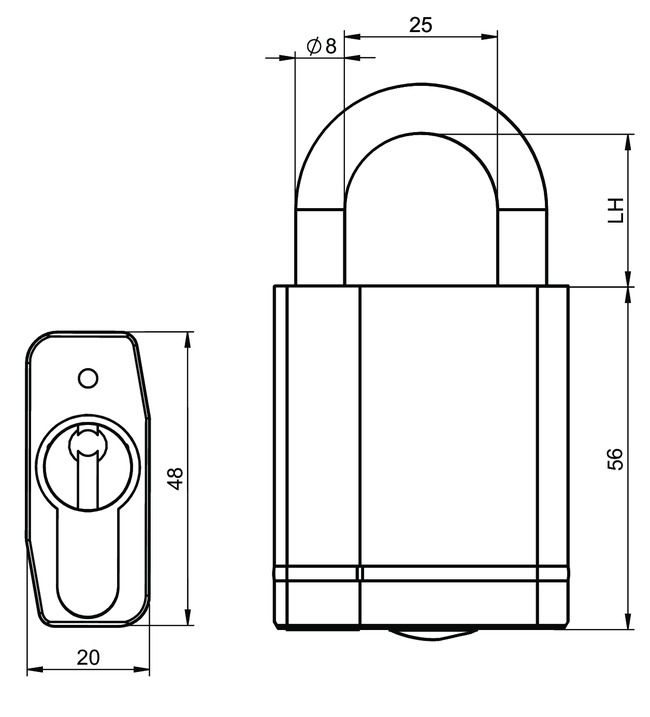

• Standard shackle clearance height 25 mm (AUS=LH25)
• Other shackle heights (AUS=LH50, LH75, LH28/5)
• Steel shackle, diameter 8 mm, hardened and chrome-plated
• Steel shackle diameter 5 mm at shackle height 28 mm (AUS=LH28/5), hardened and chrome-plated
• Optionally with non-corroding shackles (AUS=LH25-NIRO)
• Housing chrome-plated in brass
• Cylinder, nickel-plated brass satin
• With positive locking as standard
• Optionally available without controlled locking (AUS2= OHNE ZWANGSSCHL)
• Standard version as per DIN EN 12320 class 3 (not valid for AUS=LH28/5)

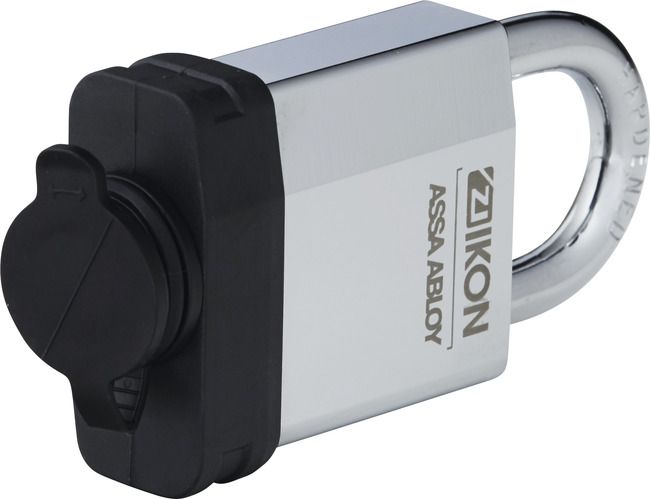

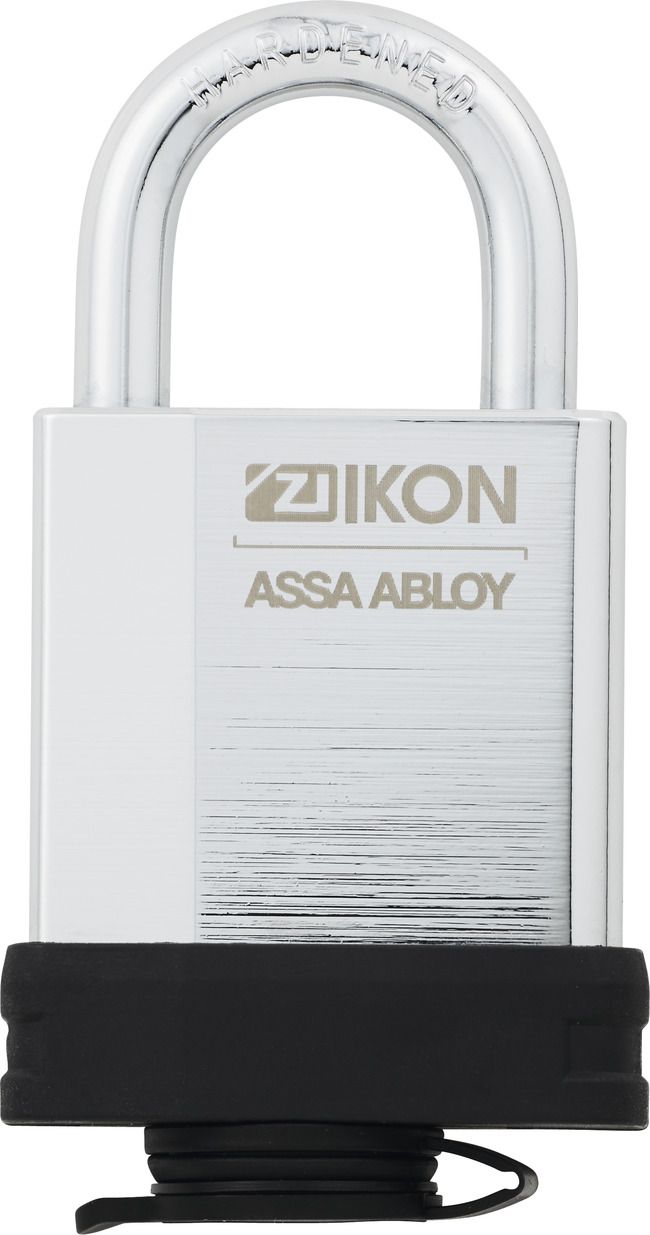

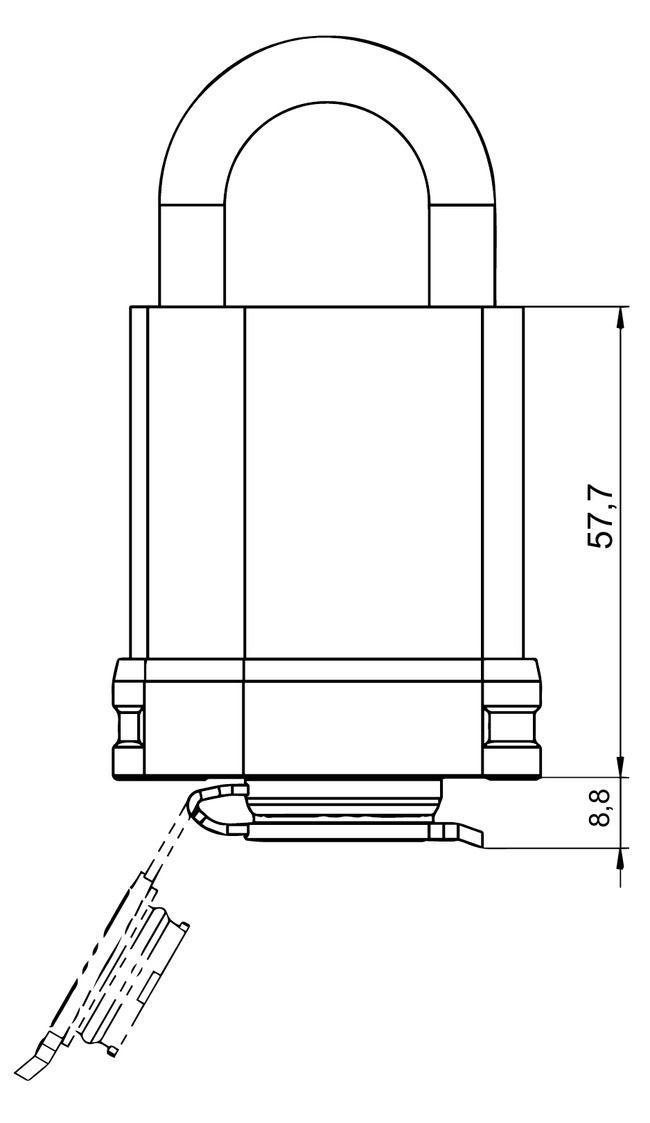

• Optionally IP67 certified with protective cap (SUR=2)
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

• 1 cylinder padlock

Ordering Information

• SUR=2 only possible in combination with SUR=0
