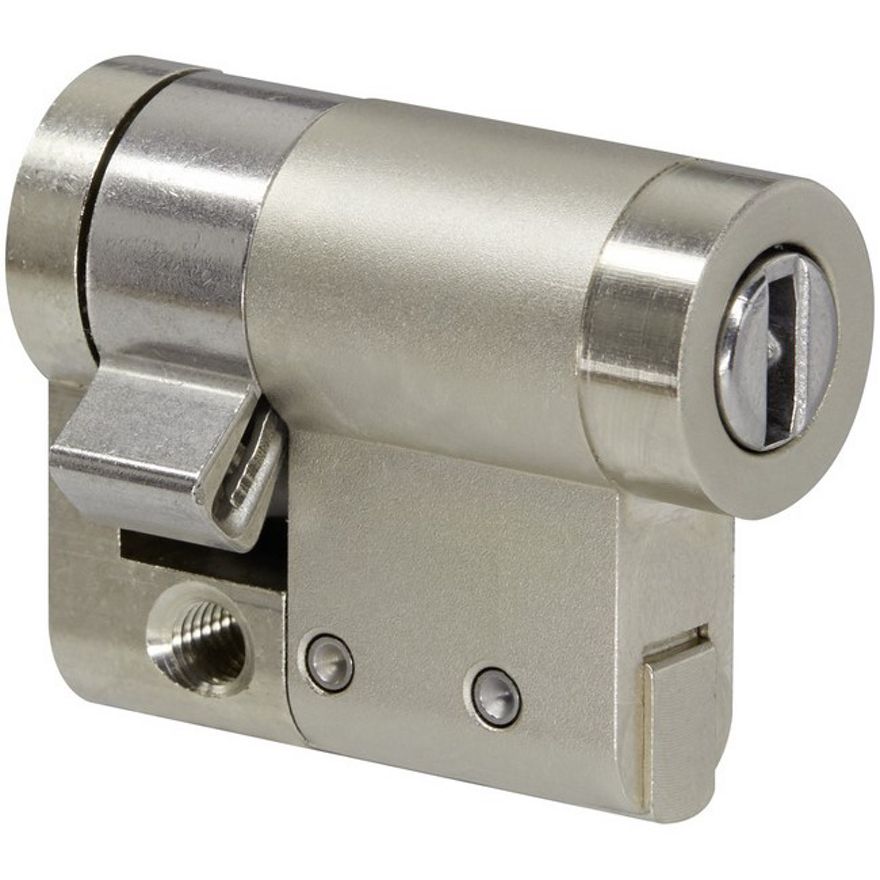

Profile-half cylinder CLIQ® Go N532,VAR=1901508-5-FRONT,SERVICE=CLIQGo

Particularly suitable for use in operating panels, e.g. in lifts - without key

Overview of Advantages

• Particularly suitable for use in operating panels, e.g. in lifts

Product description

• Available as rotary secured or electronical version (V=)
• Brass cylinder housing components
• Front surface shortened (5.95 mm)
• Standard finish, satin nickel-plated (OF=MV)
• Standard locking cam position 45°; differing locking cam positions available in 30° and 45° steps
• Standard with rigid connection (VAR=STARR) and free adjustable locking cam set to 45° (SST=FLEX). Differing locking cam positions available
• Free-wheeling function only without VAR=STARR
• Cam made of break-proof, corrosion-resistant stainless steel
• Maintenance-free for up to 200,000 cycles
• Splash-proof IP54
• Dust and rain cover available (SUR=3) IP55
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb

Scope of delivery

• 1 profile half-cylinder
• 1 cylinder fixing screw M5 x 85 mm
