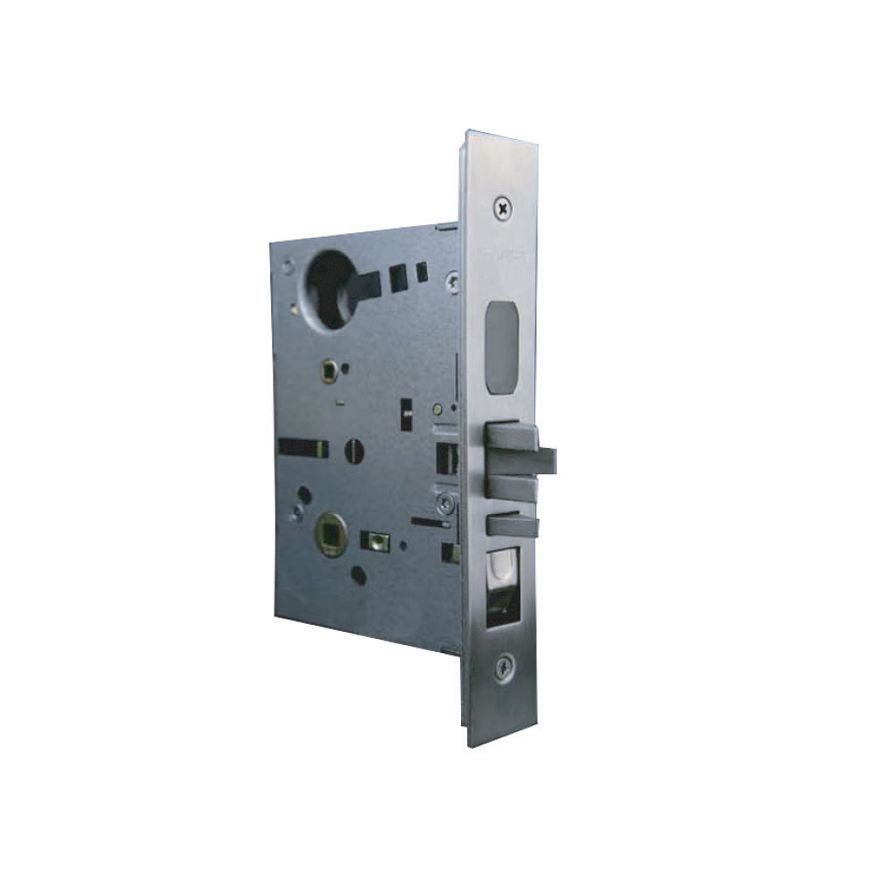

ANSI Mortise Lockcase - AA8700 Series

Key features

  • Made of 304 stainless steel
  • 1,000,000 cycles tested
  • 19 latching functions
  • Fire rated UL 10C
  • Non-handed - latch reversible
  • ANSI/BHMA A156.13 Grade 1
  • Door thickness: range 45-55 mm with the standard screw fixing pack provided
  • 70mm backset

Benefits

  • High corrosion resistance
  • High durability
  • Versatile usage
  • Can be used for fire doors
  • Provide maximum security performance
  • Application in commercial buildings, schools and other institutions

Technical details

  • Center to center - 92mm
  • Bevel front - free-floating to adjust from flat to the standard
  • bevel of 3mm in 51mm
  • 25mm (1”) deadbolt projection
  • Latchbolt - 19mm, stainless steel two-piece anti-friction, reversible latchbolt camming action
  • Case - Heavy Guage wrought steel, Zinc dichromated
  • Handing - Reversible at site
  • Trim Alignment - Expansion anchor spindle fixing method ensures top security and tightening
  • Suitable for hinged timber, metal and fire doors
  • All mortise lock contain ANSI strike plate and screws

Finishes

  • 630 Satin Stainless Steel
  • 724 PVD Bright Brass
  • *Consult local ASSA ABLOY sales representative when other finish is required

Application

  • Suitable for hinged timber, metal and fire doors where applicable
  • Favorable for various application in commercial building, industrial plant, school, hospital, airport, gymnasium, shopping mall and most public building
