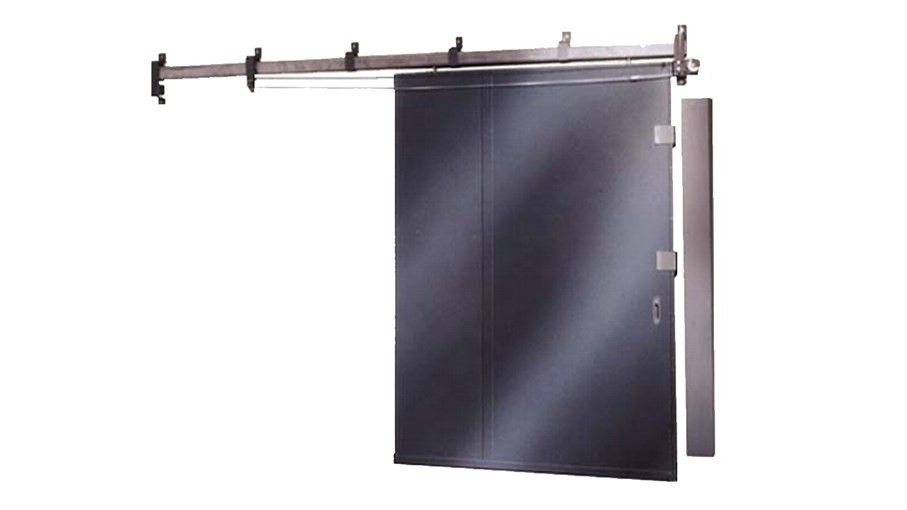

Sliding fire rated door

  • ASSA ABLOY

Designed for use in applications requiring low cost investment in a manual door.

Robust and easy to install and maintain. Both models are custom-made and available on a single slide or central separation with UL label ratings from 20 minutes to 4 hours. Standard features include automatic latching with heat detectors and low maintenance, rugged hardware. Chase is the only manufacturer that has the ability to provide a fire door with 12" clearance in special applications – contact the factory for more information.

How to buy this product Service and maintenance
Sliding fire rated door
Sliding fire rated door

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Construction of Model 2000 door - Incorporates modular panel construction with a calcium silicate core, for a temperature rise of 250oF, securely bonded to 20-gage cold-rolled face sheets, as well as 18 inner channels of gage.

Model 1000 door construction - Incorporates modular panels with Kraft honeycomb core securely bonded to 20 gage cold-rolled face sheets and 18 gage inner panels.

Door Finishing – Both doors are shipped with a high quality, corrosion resistant gray paint. Optional finishes include galvanized with premium paint or stainless steel.

Protection Channel - Panels are assembled with a 14 gage lid channel and a 10 gage lower guide roller channel.

Track System - Both models are equipped with a weight type system with the weight box, and the coupling through the wall. All hardware is UL-labeled and painted in premium quality.

The optional track hood is available in 18 gage, cold-rolled stainless steel and stainless steel.

Options

  • F1900 Operator with battery backup
  • Passdoors
  • Vision panels
  • Soft tops on track
  • Perimeter seal
  • Reel closure system
  • Close control speed
  • Wind locks
  • Stainless steel fittings
  • Crush plates
  • Monorail cuttings
  • Heat detectors
  • Panic button
  • Spark resistant equipment
