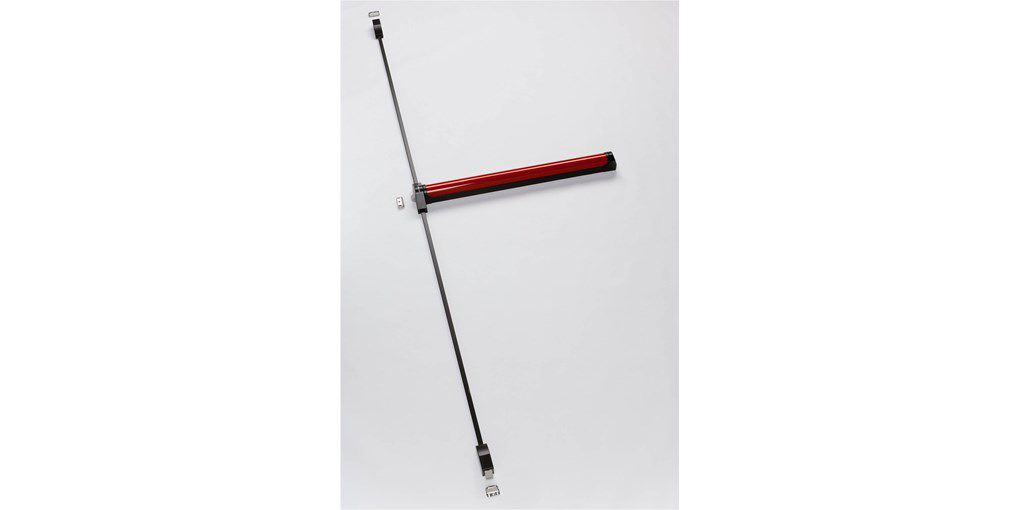

PED 300 + PED/GV
Modular Push Bar and kit for 2 vertical locking points
Characteristics of PED 300
- Modular push bar type
- For Fire and Smoke applications
- High durability 200,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of the door
- For doors up to 1200 mm width in standard
- For doors up to 1500 mm width in option
- Steel pulman latch in standard
- Dead latch in standard
- Zinc alloy cover 38 mm width
- Aluminium touch bar 1046 mm long
- Bar to be cut
- 73 mm projection
- HO function in option
- Micro switch version in option
Characteristics of PED/GV
- Set of rods, rod covers and vertical latches
- To fit modular cross bar
- For 2 (top & bottom) vertical locking points
- installation
- For one or double leaf door
- For doors up to 2350 mm high in standard
- For doors up to 3200 mm high in option
- Steel pulman latches
Accessories
- Outside trims Modular series
- Half cylinder (MKS possible)
- Various strikers
- Glass door installation kit
Finishes
Latches covers
- Black RAL 9005
- Silver RAL 9006
- S/Steel effect
Bars
- Red RAL 3000
- Silver RAL 9006
- S/Steel effect
Rod covers
- Black RAL 9005
- Silver RAL 9006
- S/Steel effect
