PED 300

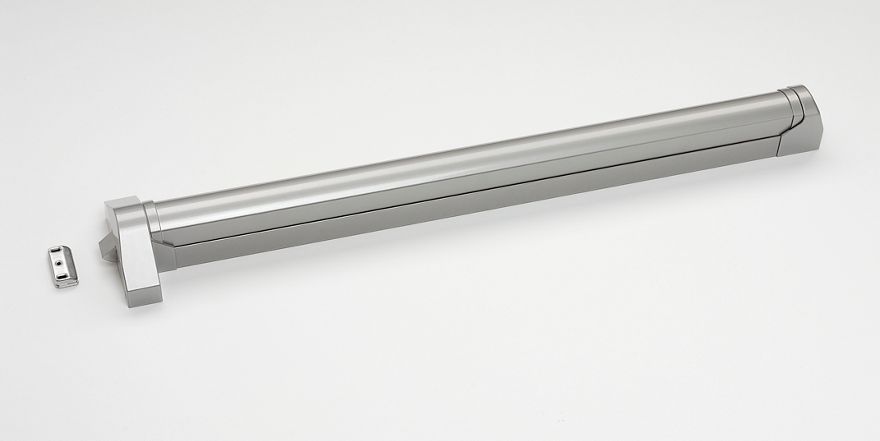

PED 300: Panic exit device with central locking point - RIM
Characteristics of PED 300
- Modular push bar type
- For Fire and Smoke applications
- High durability 200,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of the door
- For doors up to 1200 mm width in standard
- For doors up to 1400 mm width in option
- Steel pulman latch in standard
- Dead latch in standard
- Steel or zinc alloy swing latch
- Zinc alloy cover 38 mm width
- Aluminium touch bar 1046 mm long
- Bar to be cut
- 73 mm projection
- HO function in option
- Micro switch version in option
Accessories
- Outside trims Modular series
- Half cylinder (MKS possible)
- Various strikers
- Glass door installation kit
Finishes
Covers
- Black RAL 9005
- Silver RAL 9006
- S/Steel effect
Bars
- Red RAL 3000
- Silver RAL 9006
- S/Steel
