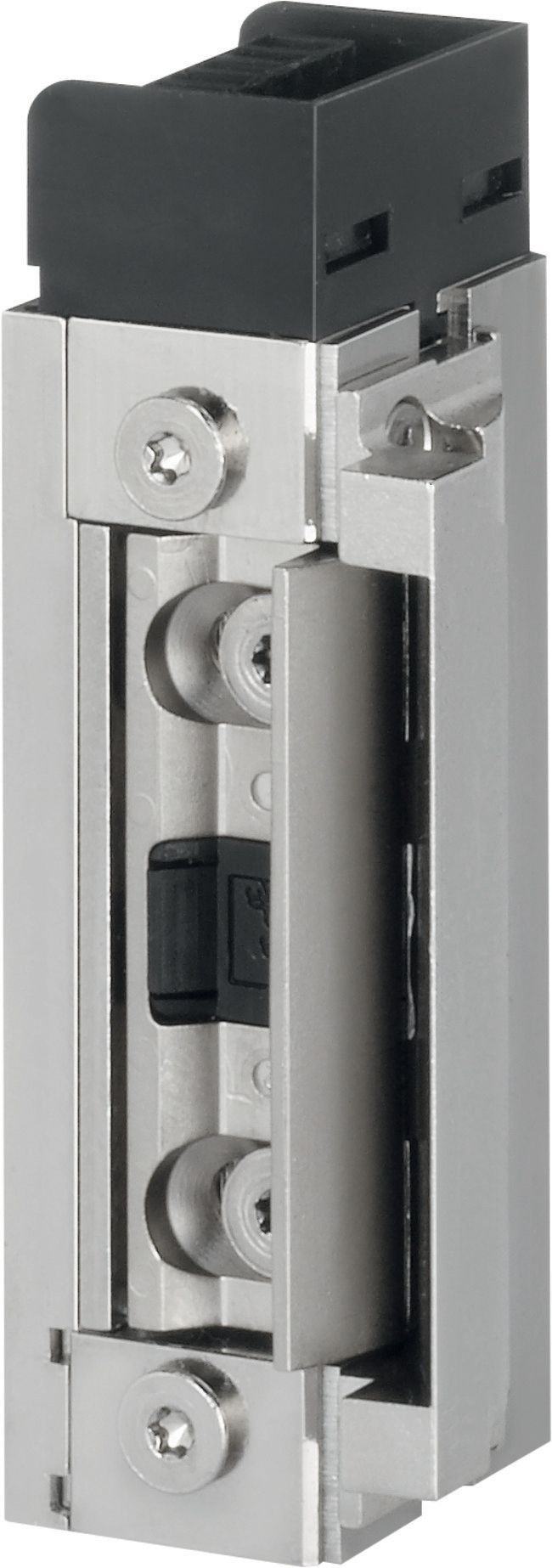

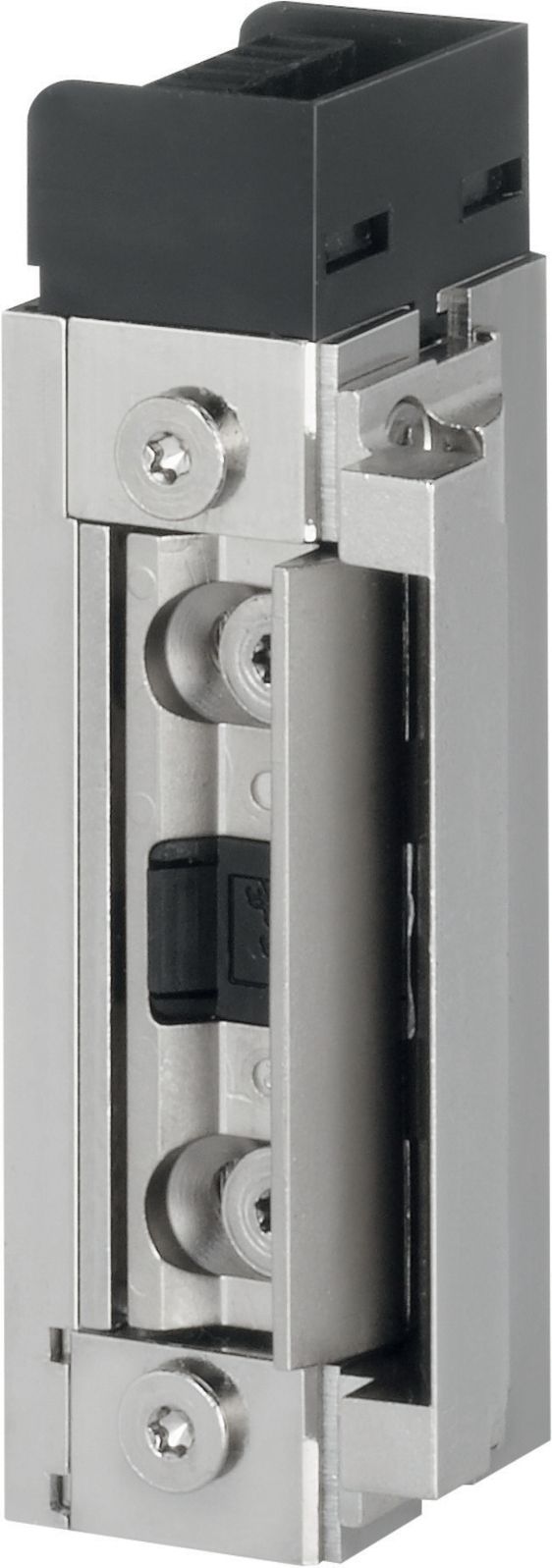

Electric strike 143.20

Product description

Model with monitoring contact as potential-free changeover contact. This is actuated by the latch bolt via a slide.

Can also be used as a high-security strike

Overview of Advantages

• Radius keep, FaFix®, adjustable by 2 mm
• New connection technology, can be replugged
• 12-24 Volt voltage range for AC and DC operation
• Resistant to continuous current across the entire voltage range
• All models can be fitted as required (right-hand/left-hand/horizontally)
• Integrated surpressor diode
• Compatible with ProFix® 1 striking plates
• Preload modes 400N or 800N can be set

Note

• Each version can be installed on the left, right, or horizontally. If space is limited, the terminal block can be fitted elsewhere on site.
