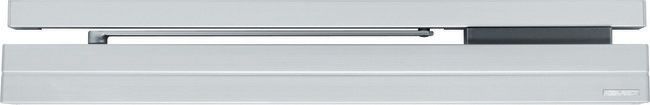

ASSA ABLOY DC700G-FT
Hinge side
Security door closer with Cam-Motion® technology, integrated latch bolt and escape door strike
Product description
- ASSA ABLOY door closer with Cam-Motion® technology, extended mounting plate and integrated latch bolt, extended guide rail with integrated escape door strike
- Suitable for retrofit to fire doors with guide rail door closers and fastening using drilling template acc. to DIN EN 1154, Supplementary Sheet 1:2003-11
- Suitable for fire and smoke protection doors (additional verification of suitability maybe required for the respective fire or smoke protection door)
- Certified in compliance with EN 1154, size 3-6
- Escape door strike 332®, tested in compliance with the guideline for electrical locking systems for doors along escape routes
- For single leaf doors, doors between 850 - 1,200 mm wide
Characteristics Security door closer with Cam-Motion® technology, integrated latch bolt and escape door strike
- Integrated escape door strike 332® in extended guide rail
- Integrated latch bolt 807 on extended mounting plate
- with 4 m connecting cable
- Flush or surface installation of wiring possible
- Suitable for fire and smoke protection doors
- Can be used for left and right hand doors
- Standard installation on hinge side
- Variable adjustable closing force
- Closing speed, latching speed and backcheck continuously adjustable
- Thermodynamic valves for consistent performance
- Axis continuously height adjustable up to 14 mm
Performance characteristics escape door locking system
- Holding force of 2000 N
- Latch position continuously adjustable between 12 mm and 17 mm
- Latch position adjustable horizontally between -3 mm and +6 mm
- Latch bolt can be adjusted vertically in 4 mm increments (-4/ 0/ +4/ +8)
- Escape door strike using FaFix®, adjustable by 2 mm (0.5 mm steps)
Characteristics of guide rail
- Height-adjustable by 2 mm for tolerance
- Concealed fastening screws
