ASSA ABLOY DC500

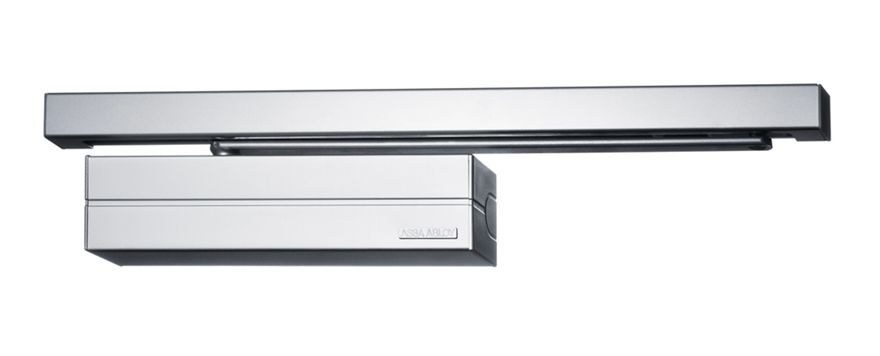

Door closer with Cam-Motion^® technology and guide rail

Product description

• Door closer with Cam-Motion^® technology and height-adjustable guide rail G195 or standard guide rail G193
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Certified in compliance with EN 1154, size 1-4
• For single action doors up to 1100 mm wide
• Can be used in four installation types: hinge and non-hinge sides in standard and frame installation
• Suitable for fire and smoke protection doors

Characteristics Door closer with Cam-Motion^® technology and height-adjustable guide rail G195 or standard guide rail G193

• Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
• Can be used for DIN left and DIN right-handed doors
• Axis continuously height adjustable up to 14 mm
• Closing speed, latching speed and backcheck adjustable via front facing regulating valves
• Thermodynamic valves for consistent performance
• Variable adjustable closing force
• Opening angle up to 160°
• Effective backcheck and latching speed range adjustable
• Large range of applications
• Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel
• Customised finishes available on request

Characteristics of standard guide rail G193

• Without protective cover
• Visible fastening screws
• Installation dimensions: see diagram (dimensions in brackets)

Characteristics for guide rail G195

• Height-adjustable by 2 mm for tolerance
• Concealed fastening screws
• Installation dimensions: see diagram
