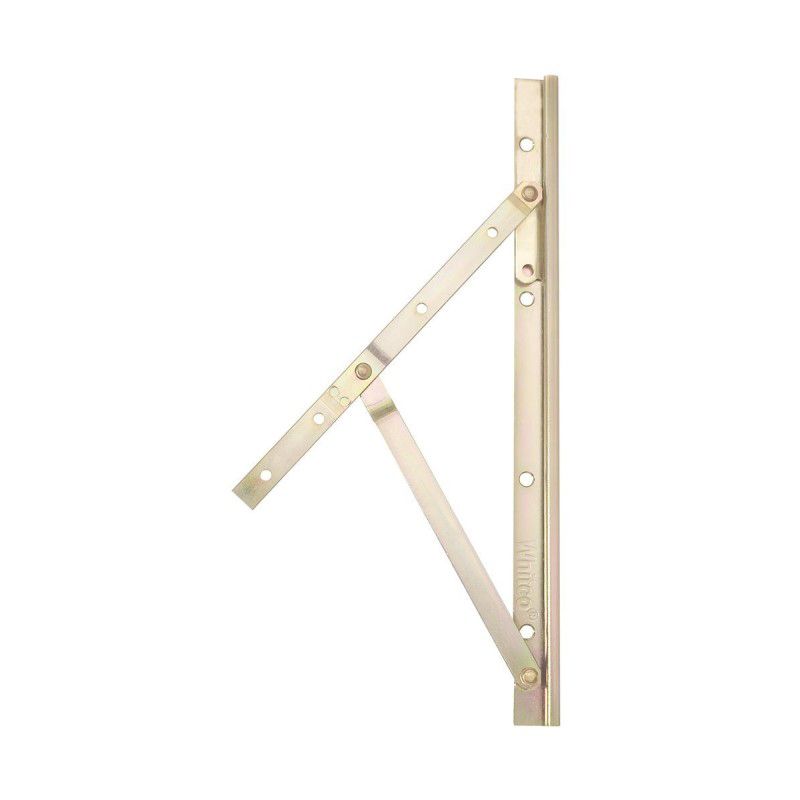

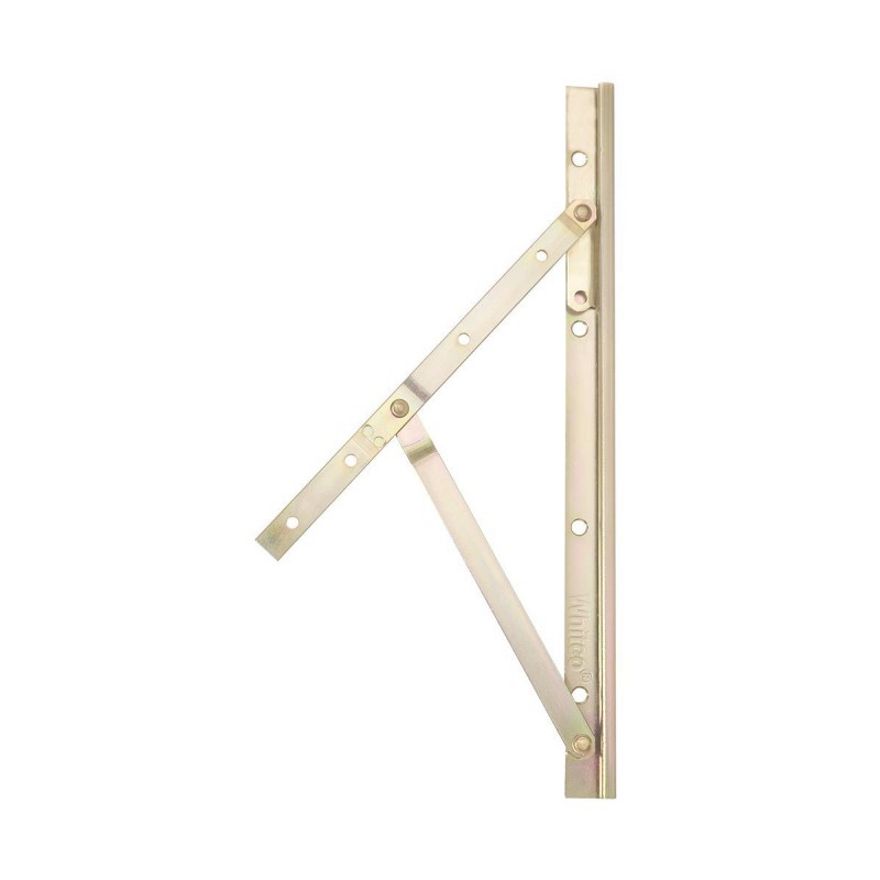

Standard & Narrow Window Stays

Robust metal window stays for both casement or awning windows. Available in both Standard (wide) and Narrow track designs for timber or aluminum joinery.

Friction versions for manually open sashes and Non-friction versions for mechanically operated sashes.

Features of the Standard & Narrow Window Stays

Robust construction
Both Standard (wide) & Narrow track designs
Both Friction and Non-friction versions
Bronze metal guide / friction foot
Suit for non-lipped window joinery only
Packed with fastening screws
Combination Retail/Trade pack only
Combination Display/Trade pack available
Made to Whitco specifications

Performance

Corrosion

Minimal effect to full exposure to 96 hours Neutral Salt Spray mounted on powder coated Aluminium sill section.

Window size and weight guidelines

Maximum weight of sash 12.3 kg
Maximum recommended casement sash height is 1,350 mm and awning width is 900 mm
Recommended maximum window size & sash weight
Maximum recommended casement sash height is 1,350 mm
Maximum recommended awning sash width is 900 mm

Standard width versions

Track length	Casement sash width (mm)	Casement sash weight (Kg)	Awning sash height (mm)	Awning sash weight (Kg)
200 mm	Up to 635	10.0	Up to 535	6.3
300 mm	636 - 790	11.8	536 - 710	7.8
400 mm	791 - 840	12.3	711 - 990	10.0
500 mm	Not recommended		991 - 1,220	11.8

Narrow width versions

Track length	Casement sash width (mm)	Casement sash weight (Kg)	Awning sash height (mm)	Awning sash weight (Kg)
200 mm	Up to 635	9.5	Up to 535	6.0
300 mm	636 - 790	11.3	536 - 710	7.3
400 mm	791 - 840	11.8	711 - 990	9.5
500 mm	Not recommended		991 - 1,220	11.3

Standard Finishes

Passivated galvanised zinc steel/ Yellow finish 01
Stainless steel/Natural finish 04

Application Information

Standard versions suit a track rebate of 27.0 mm x 9.5 mm to suit the required track length
Narrow versions suit a track rebate of 20.5 mm x 8.0 mm to suit the required track length
