    Interlock Elevation

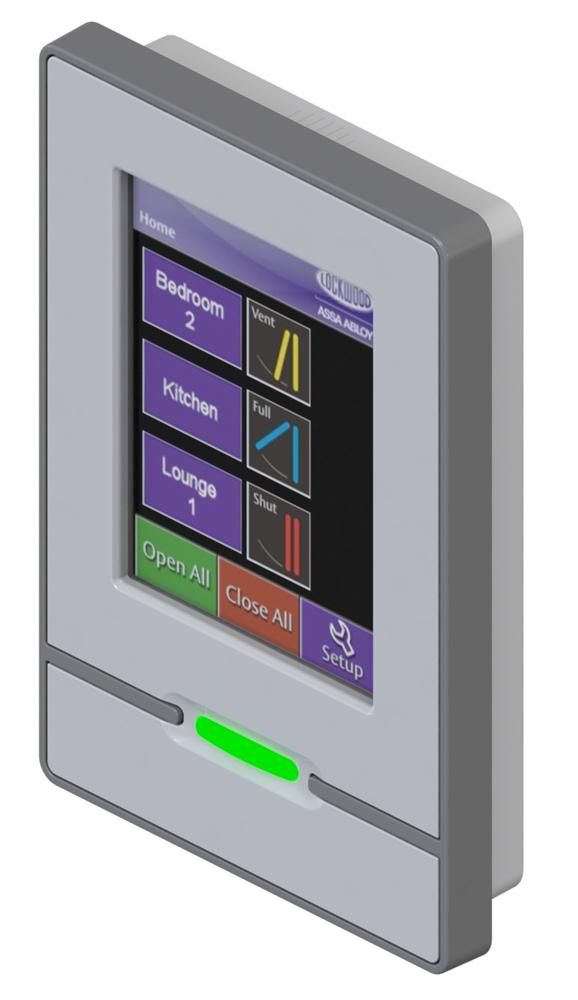

    The Elevation Window Control System can be configured to reflect the unique layout of your home. Zones, such as kitchen, hall or bedroom can be set up, providing you with flexibility when deciding which windows you would like open, half open, closed or in a venting position.

    The Elevation Window Control System can be configured to reflect the unique layout of your home. Zones, such as kitchen, hall or bedroom can be set up, providing you with flexibility when deciding which windows you would like open, half open, closed or in a venting position.

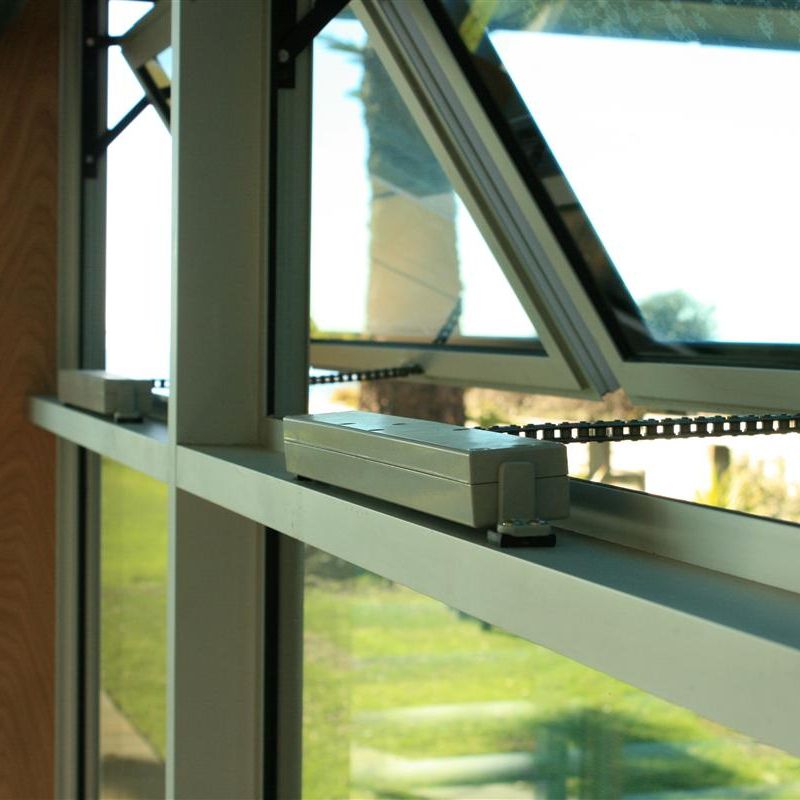

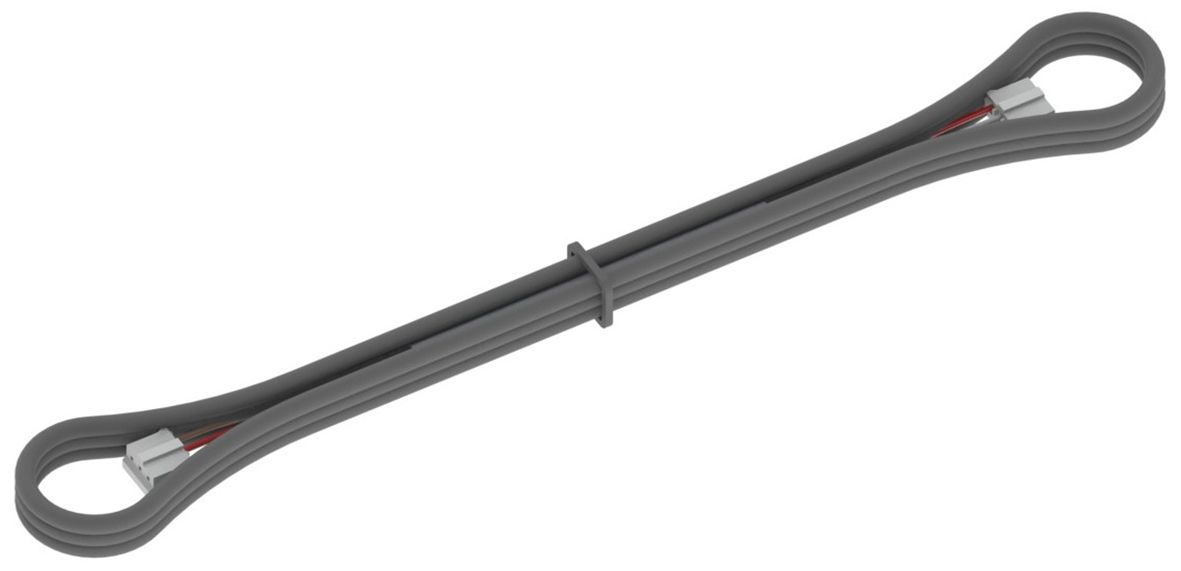

    The Elevation is the perfect solution for hard to reach windows. Wide windows are also easily catered for with the installation of a pair of synced actuators that work together to ensure smooth movement and a tight window seal when closed.

    The Elevation allows for a generous window opening, but can be easily restricted to prevent contact with external objects or eliminate the risk of young children falling.

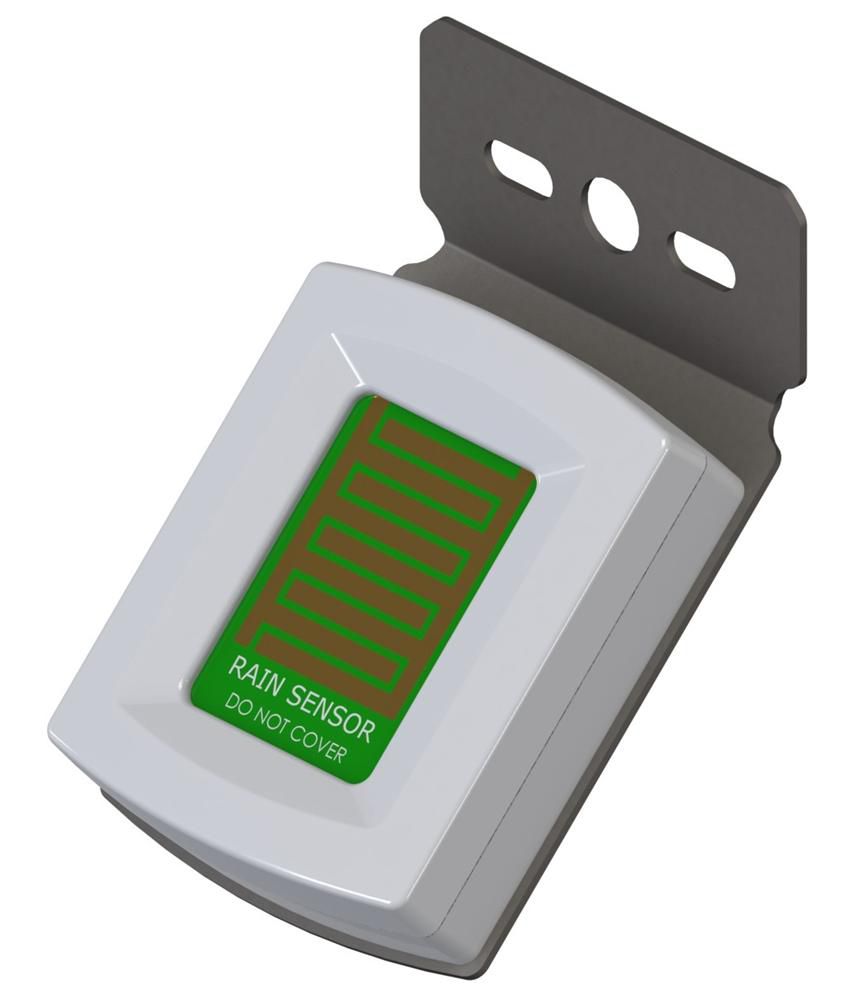

    Add a rain sensor to your Elevation system and your windows will automatically close if rain is detected.

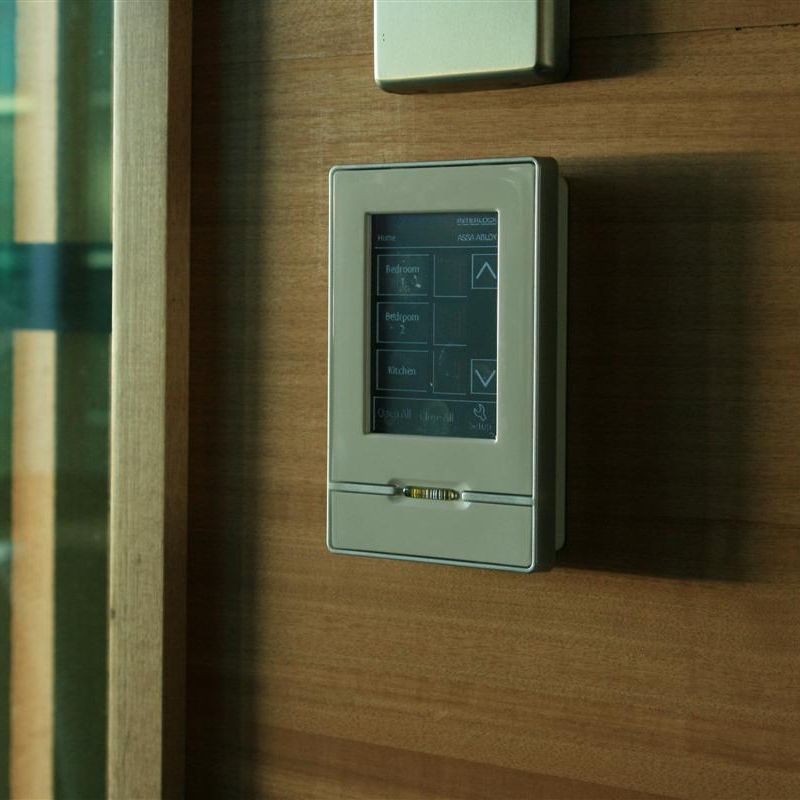

    Ultimate Control is only one touch away with the option to close all windows at once when leaving the house, or locking up for the night.

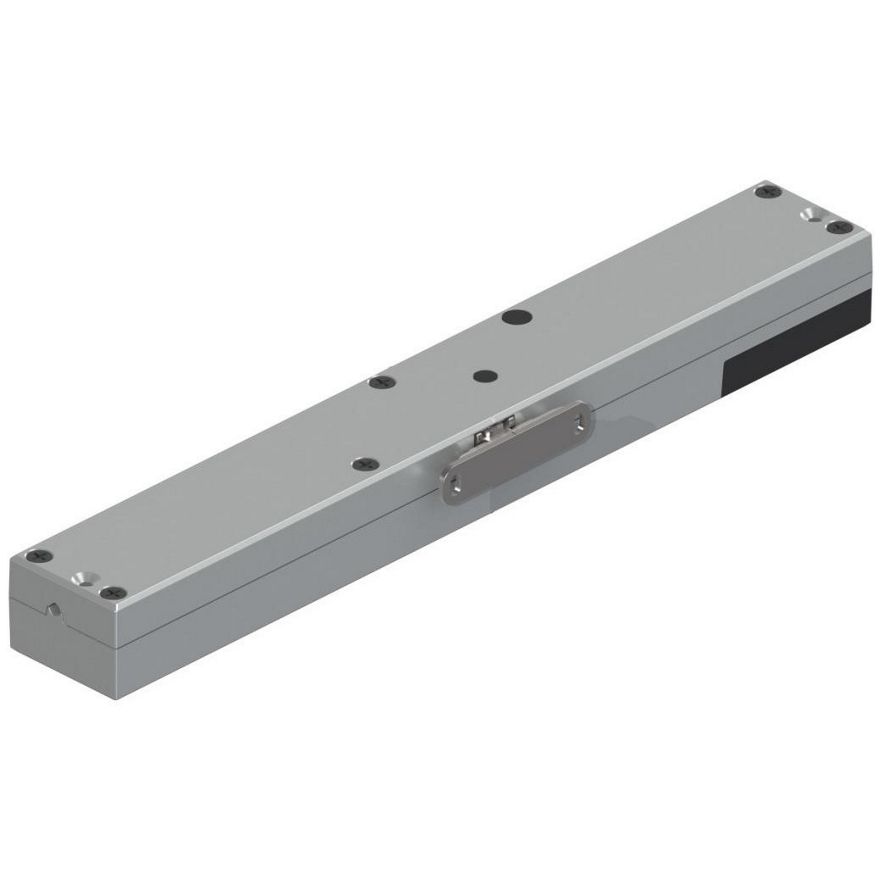

    Elevation


    1 of 8

    Suitability

    • Suitable for use on sashes with a maximum width of 1800mm and pushing force of 18kg.
    • Suitable for awning or casement windows.
    • Elevation Actuators are only to be used on windows with hinges or non-friction stays.

    Fixing Surfaces

    • Timber
    • Aluminium

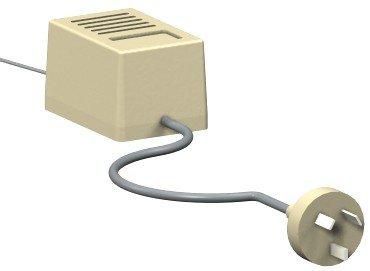

    Voltage

    24V DC

    Maximum Current Draw

    • Actuator = 750mA
    • Keypad = 100mA

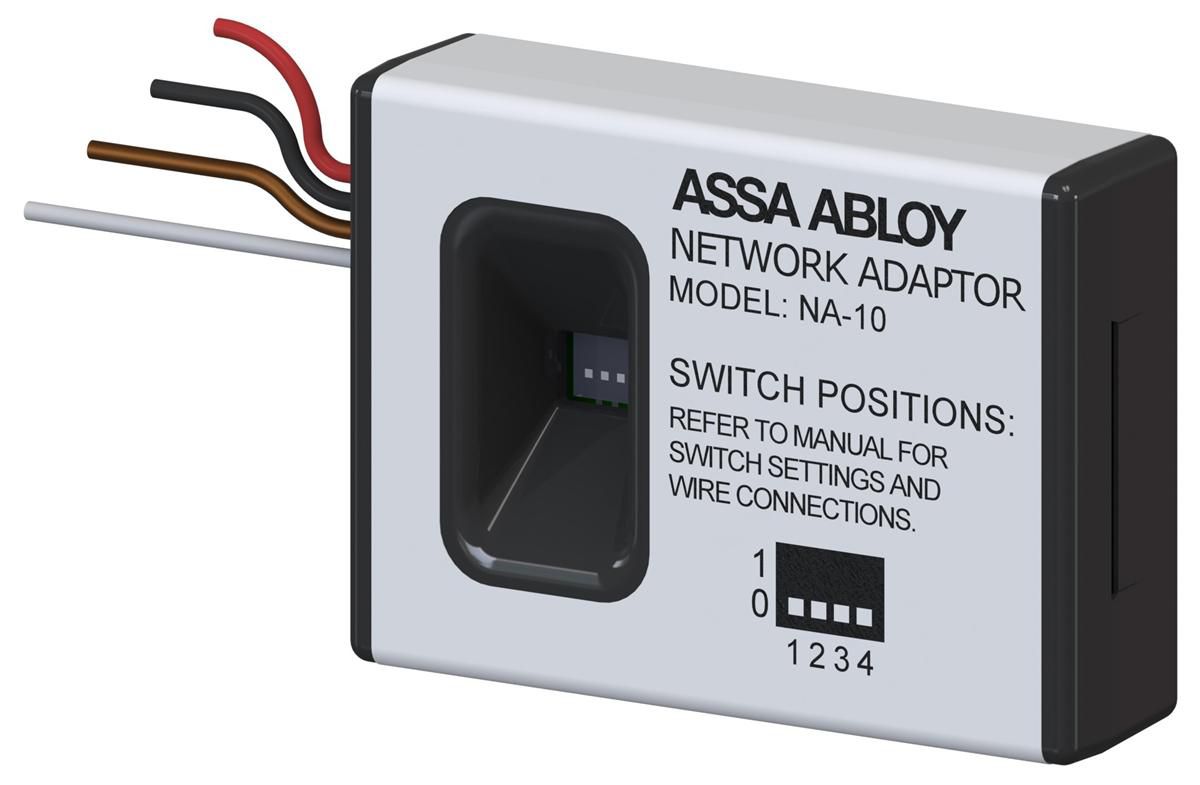

    • Rain Sensor + Network Adaptor = 350mA
    • Wall Switch + Network Adaptor = 100mA

    Operating Force

    Opening/Closing Force 90N

    Stroke Length

    Maximum Opening Stroke 300mm

    Stroke Time

    Closing time approximately 40 seconds

    Environment

    0 to 50° Celsius

    0-95% Humidity

    Chain

    Stainless Steel (Grade 302)

    Finish Options

    Black, P Colours or Special
