DC700 with G460 Cam-Motion®

Door closer with Cam-Motion® technology and electromechanical hold-open device

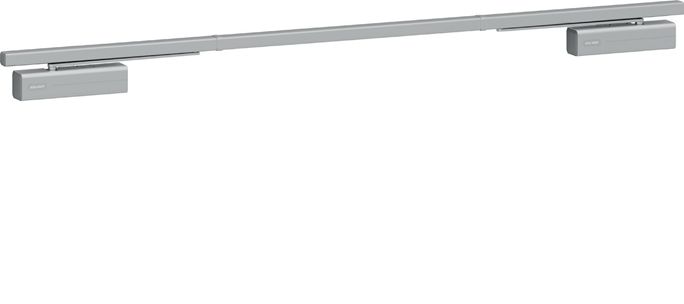

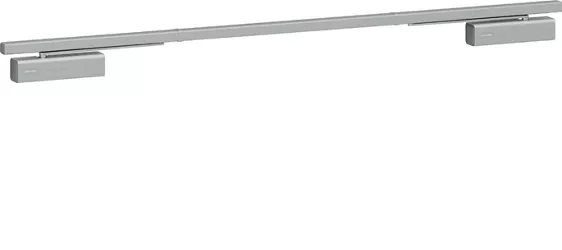

ASSA ABLOY DC700 with G460

• Door closer with Cam-Motion® technology and gui- de rail with electro-mechanical hold-open device for single leaf doors
  • Certified in compliance with EN1154/EN1155, size 3-6
  • Hold-open angle continuously adjustable between 70°-130°
  • Suitable for fire and smoke protection doors up to 1400 mm wide

Characteristic of DC700 with G460

• Electro-mechanical hold-open device
• Continuously adjustable holding force
• Hold-open angle adjustable between 70°-130°
• Door opening angle up to 130°
• Can be used for left and right handed doors
• Standard mounting position on hinge side and non-hinge side
•  Axis continuoulsy height adjustable up to 14 mm
•  Large range of applications
• With technical approval for different smoke detecti- on systems

Accessories:

•  Mounting plate A115
•  Angle bracket A116
•  Smoke protection de- tector A177
•  Flush mounted door release button A178

Colour:

•   Silver EV1
•   White, similar to RAL9016
•   Brown, similar to RAL8014
•   Black, similar to RAL9005 Stainless steel

·
