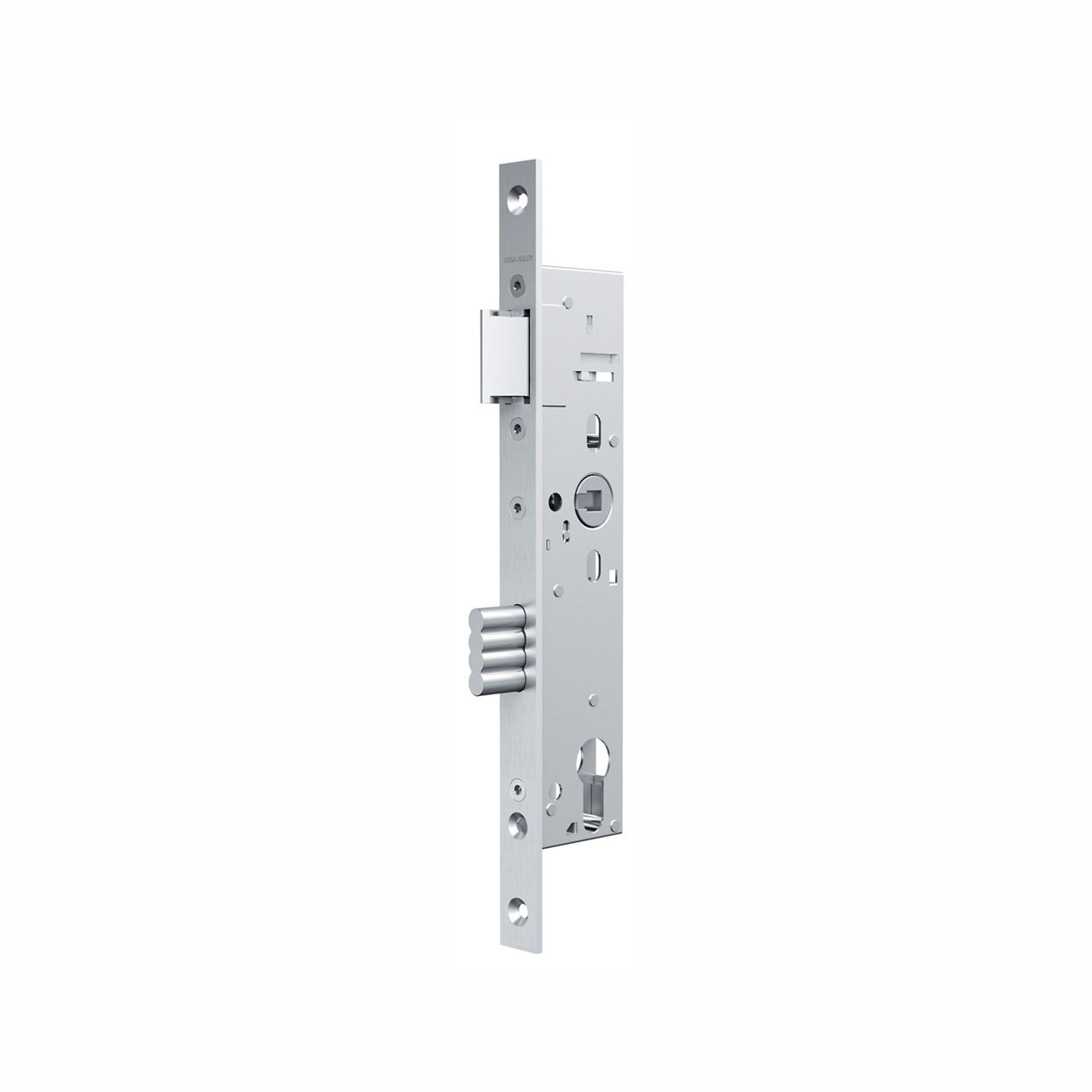

Mortise Lock case N1550 Series

Product description

OneSystem sash lock N1550 according to EN 12209 for single-leaf doors / approved for fire barriers according to EN 1634 / product-specific environmental productdeclaration (EPD) according to EN 15804 with article-specific parameters / tested for 1,000,000 cycles and 300 kg door weight

Overview of Advantages

• Environmental product declaration (EPD) in accordance with EN 15804
• Tested for 1,000,000 cycles and 300 kg door weight
• Compliance with EN 12209
• Small rear backset 15 mm
• Continuous screw connection of escutcheons
• Suitable espagnolette integrated in the strike plate
• 20 mm bolt throw with a single rotation
• Also available as a fire protection version
• Latch DIN left/right reversible without tools
• Closed lock case at the top and bottom
• Stainless steel faceplate
• Security fittings and oval roses can be screwed on through the lock
• Deadbolt with anti-tampering design
• Developed for Euro profile cylinder and Swiss round Profile cylinder

Note

• For U-shaped versions, the end caps are included in the scope of supply. Please note:, for U-shaped versions, the backset is shortened by 1mm.
