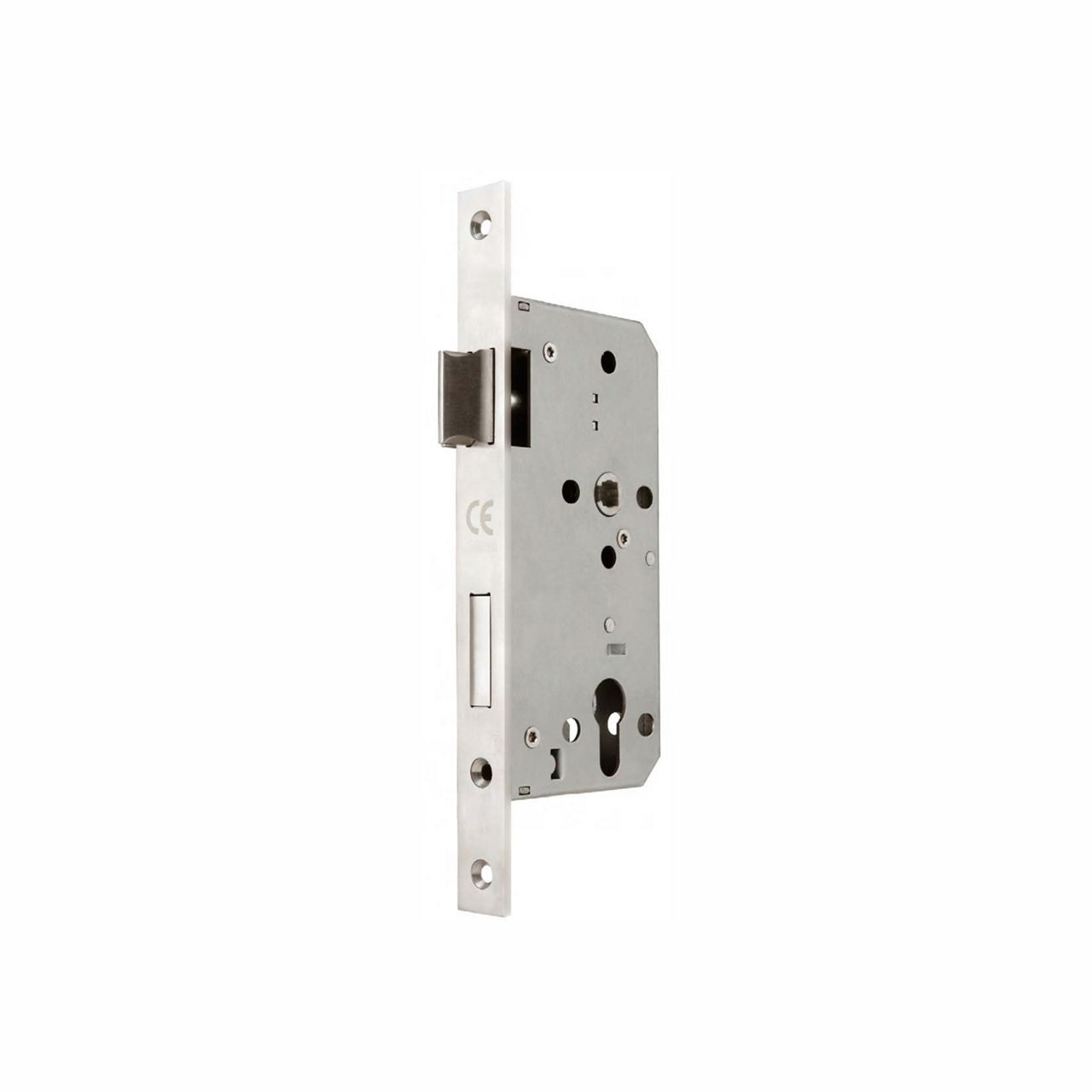

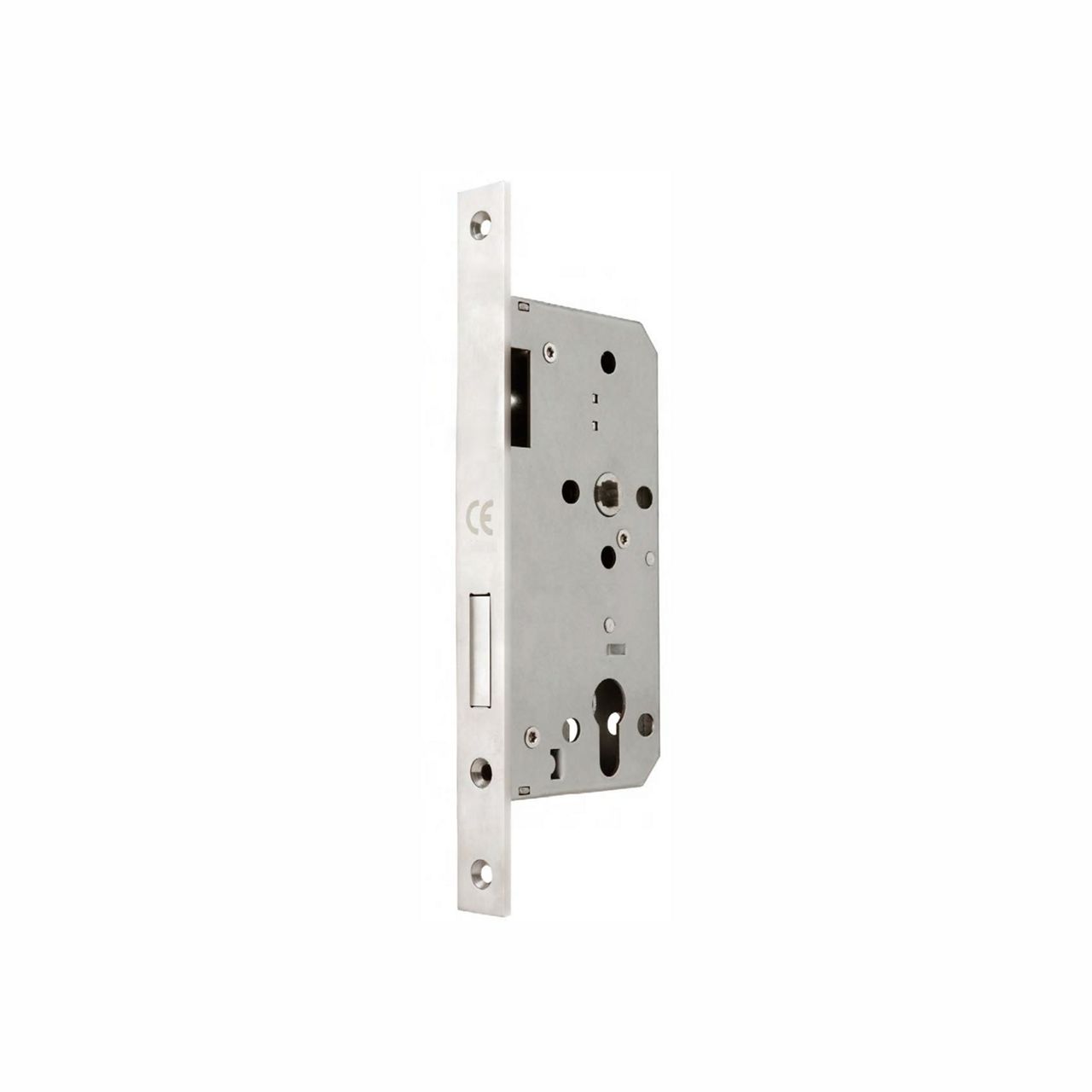

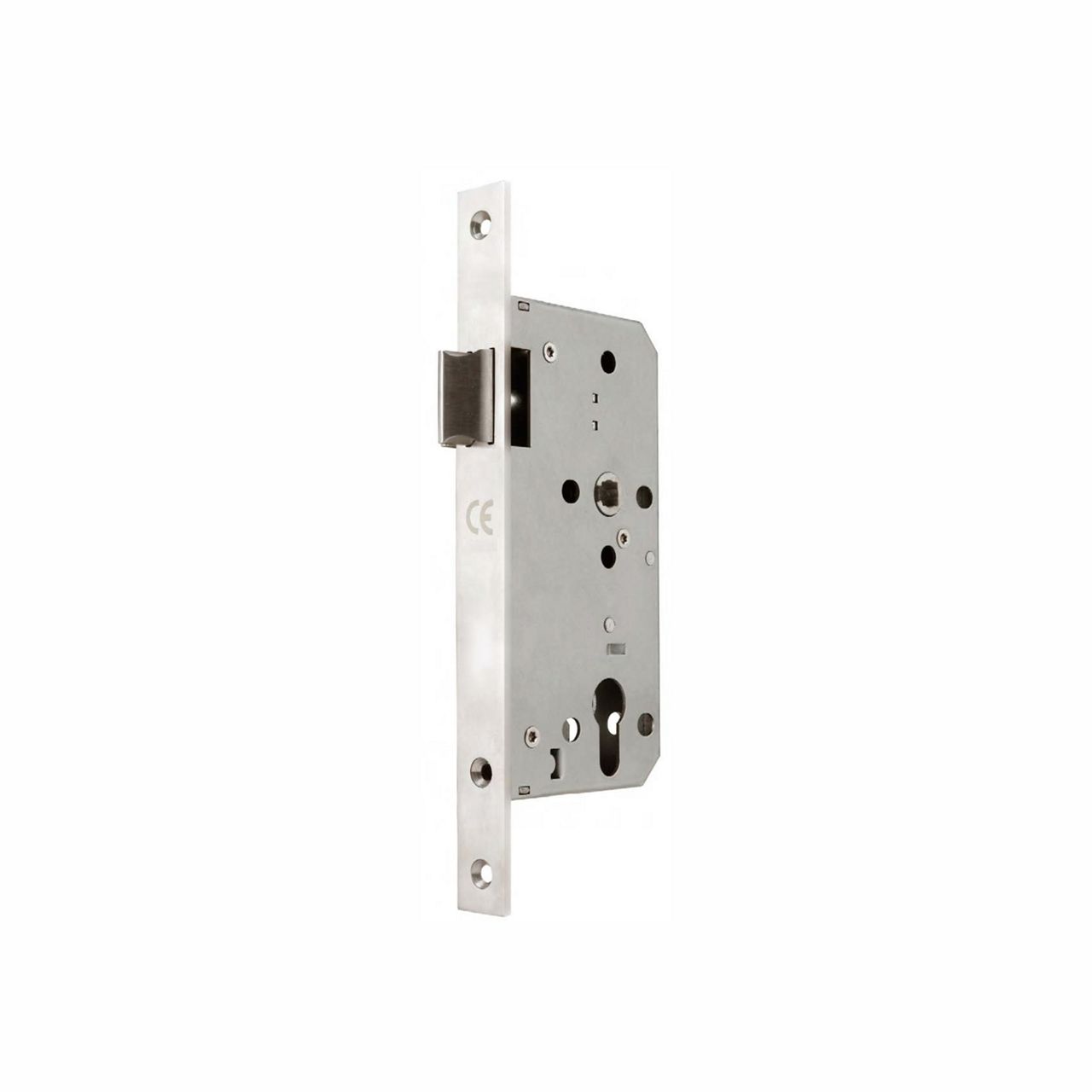

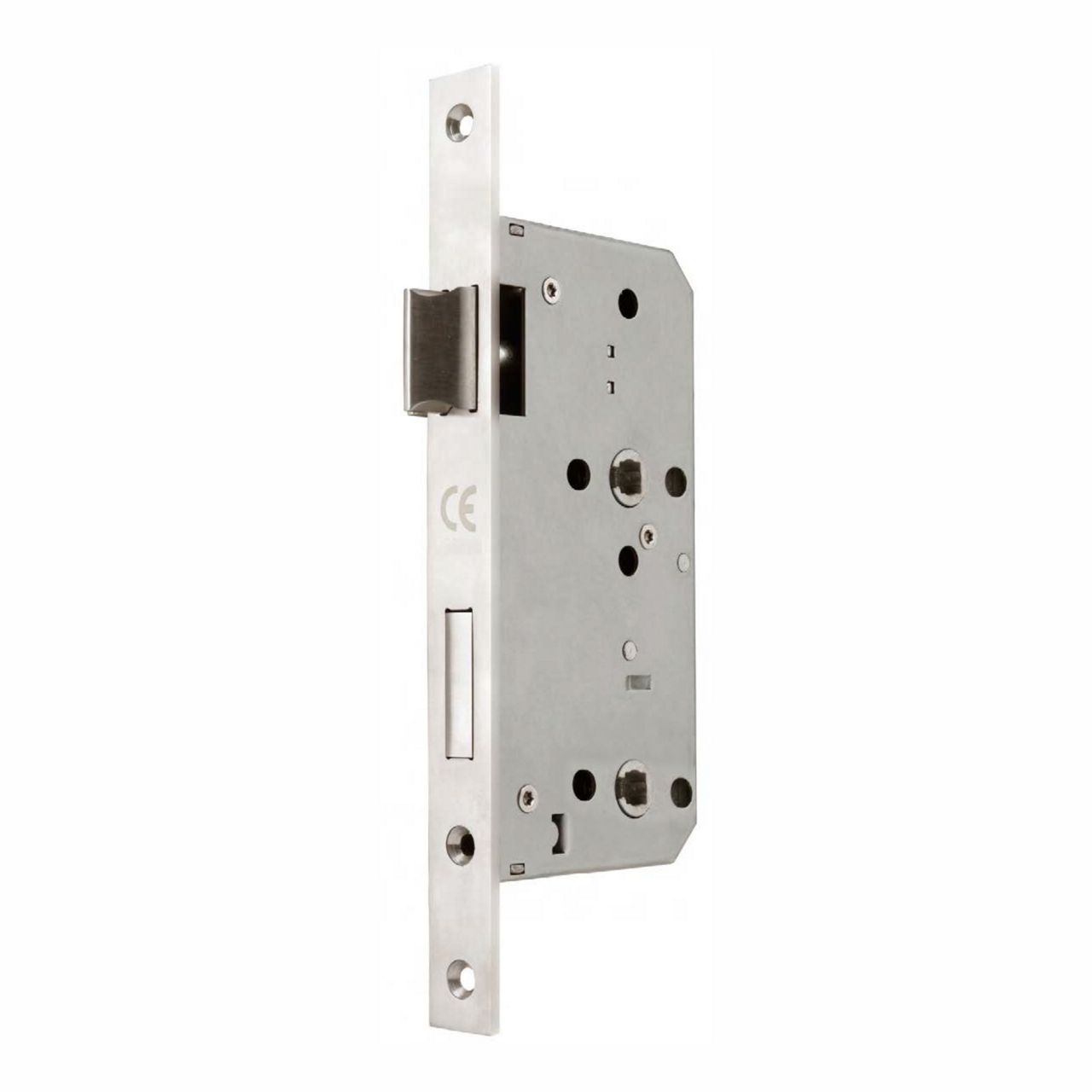

Mortise Lock case L100 Series

Application

ASSA ABLOY L100 Series Mortice Lock is designed for high frequency usage applications such as public access buildings where deliberate abuse likely takes place.

Specification and Features

• Modular case across functions for rapid door preparing and installation
• 72mm centers, backset in 50/55/60/65mm
• 8mm follower with spindle gripping function
• Reversible latchbolt in solid stainless steel
• Double throw deadbolt in solid stainless steel with 20mm Projection
• Suitable for sprung and most un-sprung lever furniture
• Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
• Compatible with bolt through furniture and escutcheons of 38mm centers
