ASSA ABLOY Door Hinges

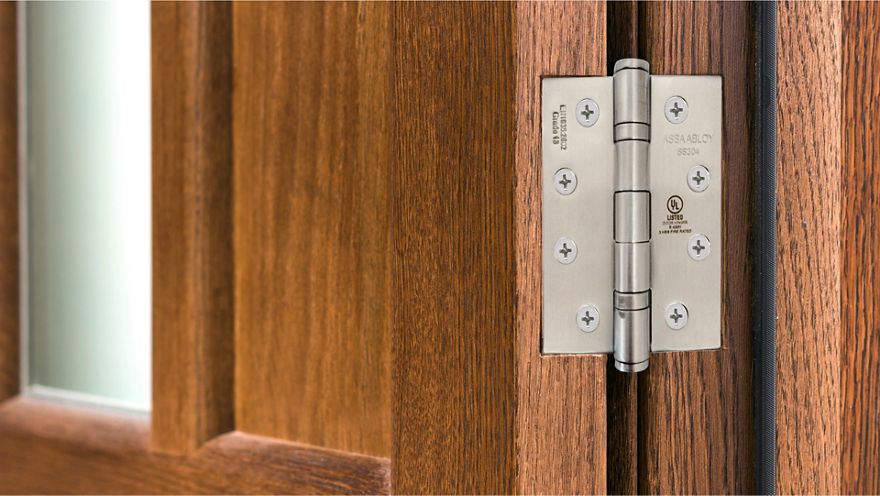

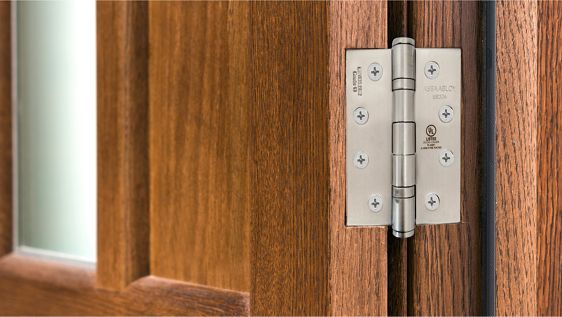

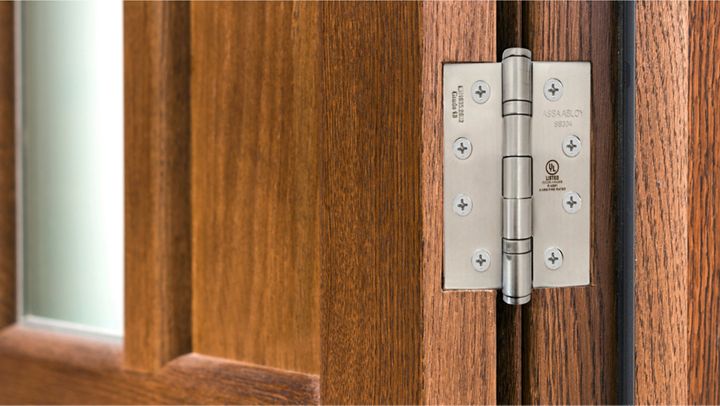

Among our most popular solutions are our 2 Ball Bearing, 5 Knuckle Hinges. These hinges are specifically designed to provide enhanced strength and durability for medium to heavy-duty door applications. The inclusion of ball bearings reduces friction and ensures smooth, quiet door movement while also contributing to extended hinge life.

These hinges feature square corners for a clean, architectural appearance and seamless integration into modern door designs.

Manufactured from 304-grade stainless steel, these hinges offer excellent corrosion resistance, making them suitable for use in environments where moisture or humidity is a concern. For projects requiring even greater resilience against corrosive elements , such as coastal or industrial settings , these hinges are also available in 316-grade stainless steel upon request.

We understand the varying installation requirements across different projects, so our hinges are available with fixing options for either timber (W) or metal (M) doors. To ensure accuracy and efficiency in supply, we recommend clearly specifying your fixing requirements at the time of order.

For additional security, these hinges are available with an optional Security Stud Feature (Dog Bolt). This enhanced feature provides increased protection against forced entry, particularly in outward-opening doors, by preventing the door leaf from being lifted off its hinges when in the closed position.

Our hinges are rigorously tested and engineered to support doors weighing up to 120 kg, making them suitable for a wide range of robust applications. Performance and quality are further validated through independent testing to ANSI/BHMA A156.1 standards and evaluation in accordance with UL 10C for fire-rated assemblies, providing additional confidence in safety and compliance.
