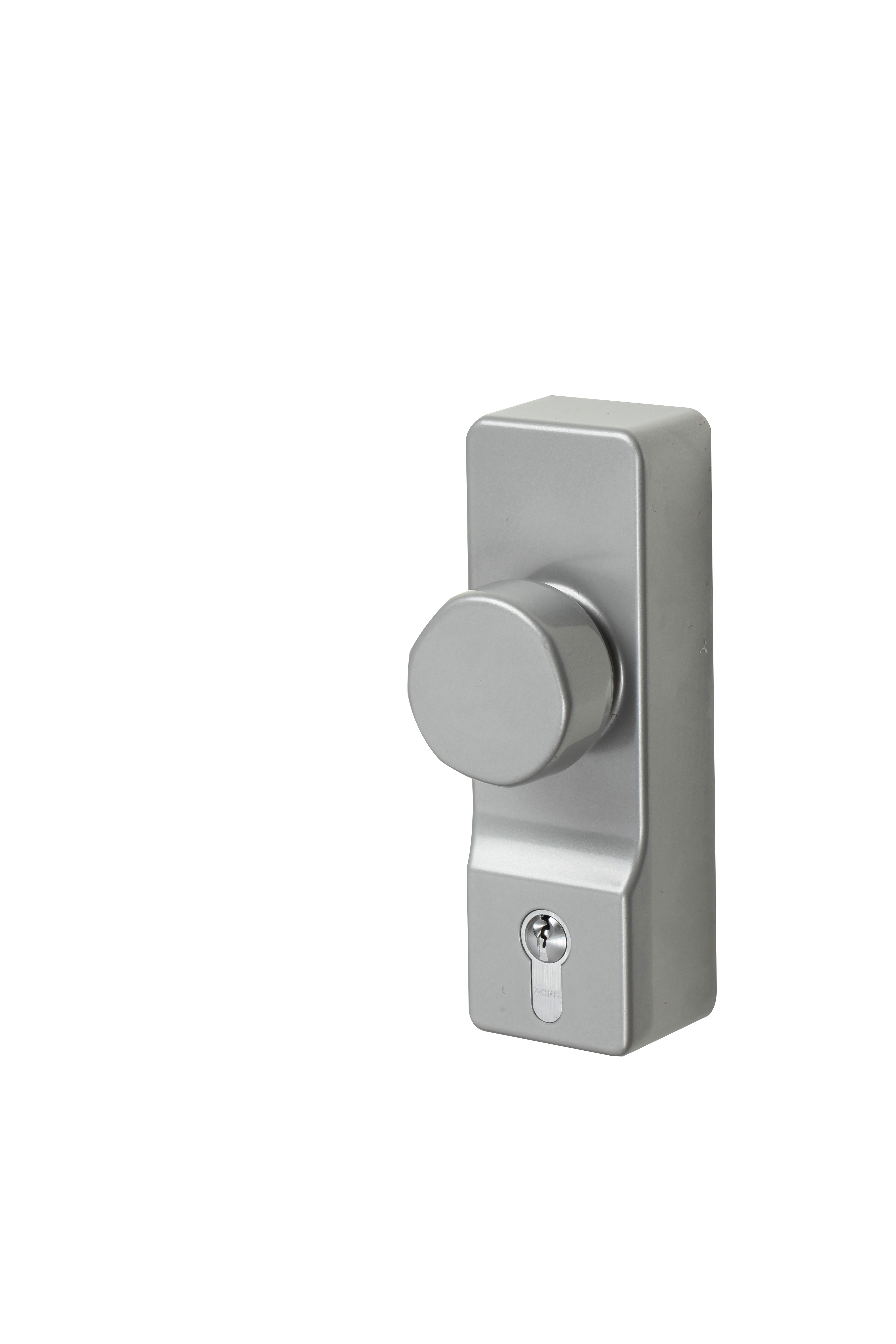

302 knob outside access devices

Exidor round knob outside access device for use with 200 series and 300 series hardware, for gaining entry through an escape door. The unit is operated by rotating the knob to retract the internal bolts/latches, releasing the knob returns the internal bolts/latches to the rest position. Available with or without Euro/Oval cylinder. Key retention option available (Suffix order code with “RK” for key retention). Locking the cylinder prevents access into the building but will not prevent escape from the building. Certified as an approved accessory to 200/300 series hardware as part of EN 1125 and EN 179. Certifire approval when used as an accessory to the 200/300 series range. Indicate the required finish when ordering (plated finishes are not recommended for external use). Additional fixings for thicker doors are available on request.

Similar products

  • 285 Rebated Double Doorset

    Exidor double doorset for rebated double doors featuring a single point panic latch and two point panic bolt, supplied with either timber or metal door keeps and fixings. The unit is operated by pushing the bar down into the door face to retract the bolts, the bolts remain retracted until automatically released on closing of the door. The push bar design can be easily cut to size to suit different door widths. 285A supplied with adjustable shoot bolts for greater onsite flexibility. Certified in compliance to EN 1125 with suitability for use on timber doors up to FD120 as well as metal doors FD120/FD240. Available in SIL or SSE finishes (other finishes available upon request). Indicate required finish when ordering.

  • 302 knob outside access devices

    Exidor round knob outside access device for use with 200 series and 300 series hardware. Compatible with 296, 294, 294A, 285, 284, 297, 293, 293A series hardware. Bolt through fixings make it suitable for steel or timber doors up to 50mm thick.

  • Exidor 296 panic latch

    The Exidor 296 is designed for single and double door applications. The unit is operated by a downward thrust of the cross bar to give a speedy exit in panic situations. An adapter for use with a rim cylinder for outside access is supplied as standard.

  • 285 Rebated Double Doorset

    Exidor double doorset for rebated double doors featuring a single point panic latch and two point panic bolt, supplied with either timber or metal door keeps and fixings. The unit is operated by pushing the bar down into the door face to retract the bolts, the bolts remain retracted until automatically released on closing of the door. The push bar design can be easily cut to size to suit different door widths. 285A supplied with adjustable shoot bolts for greater onsite flexibility. Certified in compliance to EN 1125 with suitability for use on timber doors up to FD120 as well as metal doors FD120/FD240. Available in SIL or SSE finishes (other finishes available upon request). Indicate required finish when ordering.

  • Exidor 305 mortice panic latch

    The Exidor 305 offers a push bar actuator unit with a cylinder mortice night latch case that can be supplied with or without a euro profile cylinder for access from the outside. A mortice plate is supplied as standard. The unit provides security on the outside with ease of escape from the inside in panic situations.

  • Exidor 293 push pad bolt

    The Exidor 293 is an elegant and highly functional panic bolt for single and double door applications. Incorporated as standard is an automatic top trip and easy clean floor socket. The main body is fitted with an antithrust device, which prevents leverage of both the top and bottom shoot bolts from their sockets.

  • Exidor 294 panic bolt

    The Exidor 294 is an elegant and highly functional panic bolt for single and double door applications. Incorporated as standard is an automatic top trip and easy clean floor socket. The main body is fitted with an antithrust device, which prevents leverage of both the top and bottom shoot bolts from their sockets.
