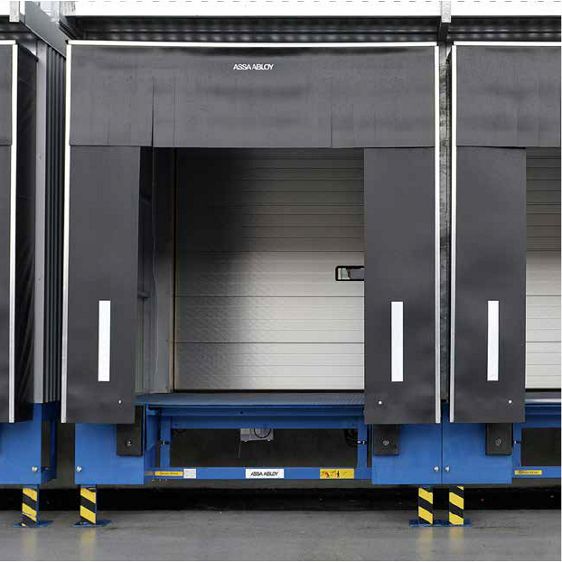

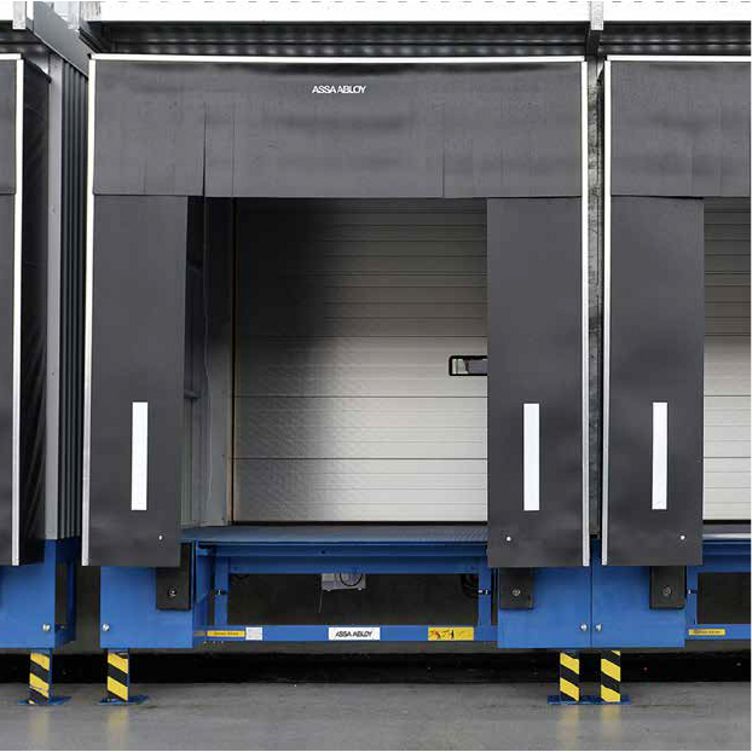

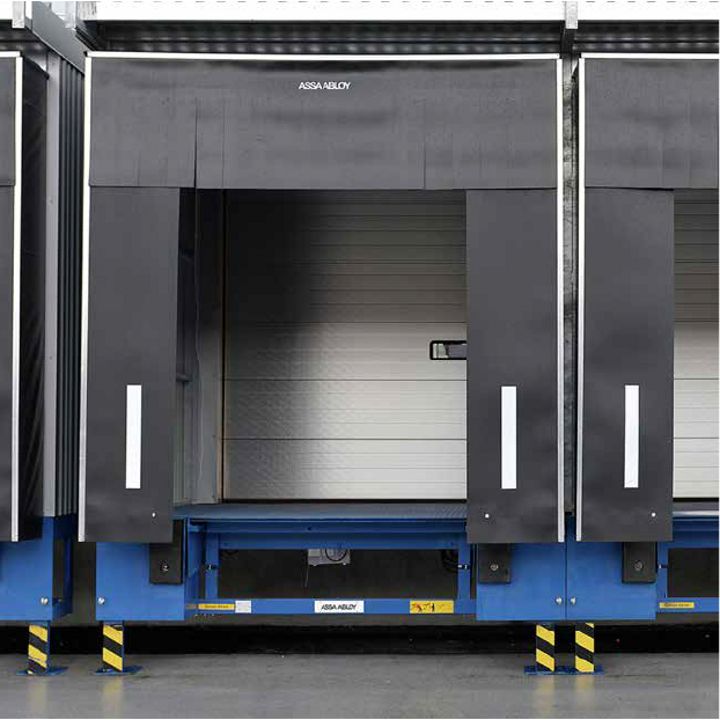

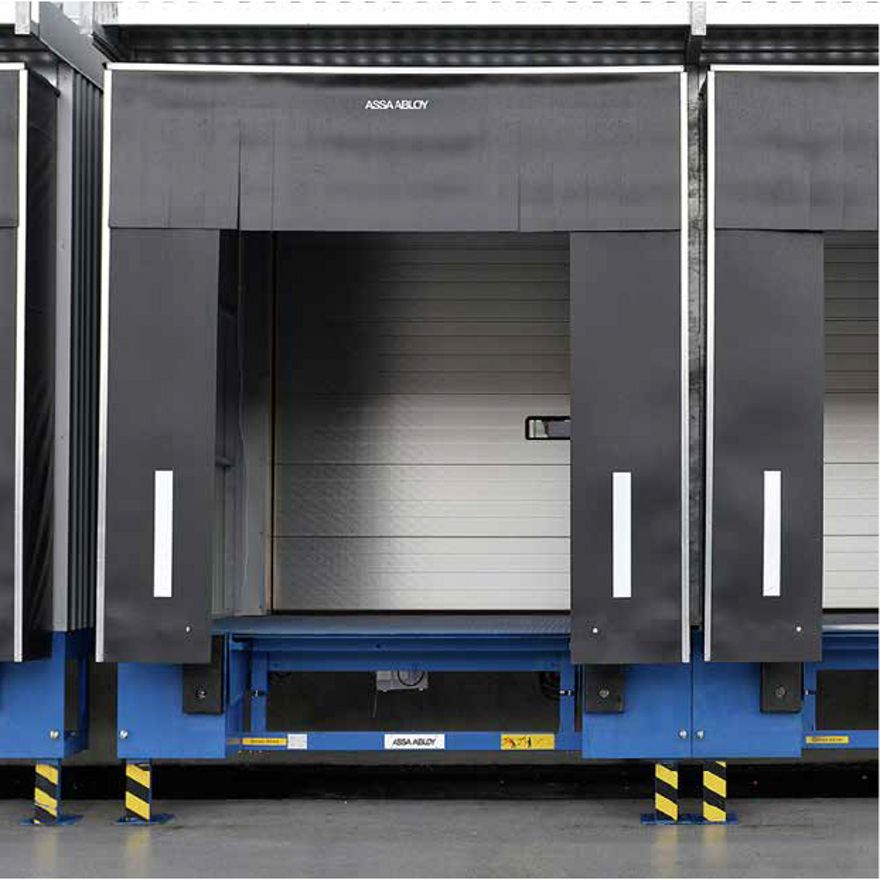

    ASSA ABLOY DL6221TA (formerly Crawford) Teledock Autodock

    • Distribution and logistics
    • ASSA ABLOY

    Smart telescopic dock leveller for external loadhouse integration

    The ASSA ABLOY DL6221TA Teledock Autodock is a heavy-duty leveller with a 100 kN load capacity and a self-supporting frame. It’s designed for full integration into an external loadhouse setup—bringing the leveller, shelter, and door together in one smart, space-saving solution that protects your indoor environment.

    Downloads
    ASSA ABLOY DL6221TA Teledock Autodock
    ASSA ABLOY DL6221TA Teledock Autodock

    1 of 2

    ASSA ABLOY DL6221TA Teledock Autodock

    • Product ID: DL6221TA
    • Normal length: 2000, 2450, 3000 mm (other sizes on request)
    • Normal width: 3300, 3500, 3600, 3750 mm
    • Load capacity: 100 kN (10 tonnes)
    • Vertical working range; Rise above dock up to 415 mm, Fall below dock down to 430 mm
    • Platform tear-plate thickness : 8 mm S355 ( 8/10 mm)
    • Lip material and length: Steel, 500/1000 mm
    • Control unit protection class: IP 54
    • Nominal voltage: 400V 3-phase, 230V 3-phase
    • Nominal motor power: 1,5 kW
    • Temperature range hydraulic oil: -20°C - +60°C
    • European standard: EN1398 dock levellers
