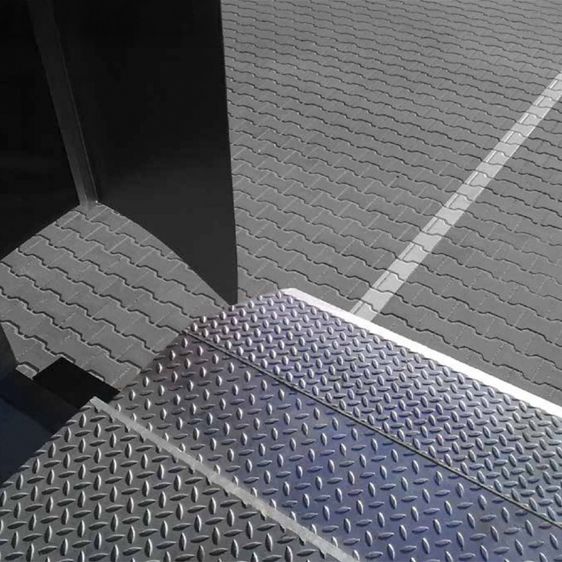

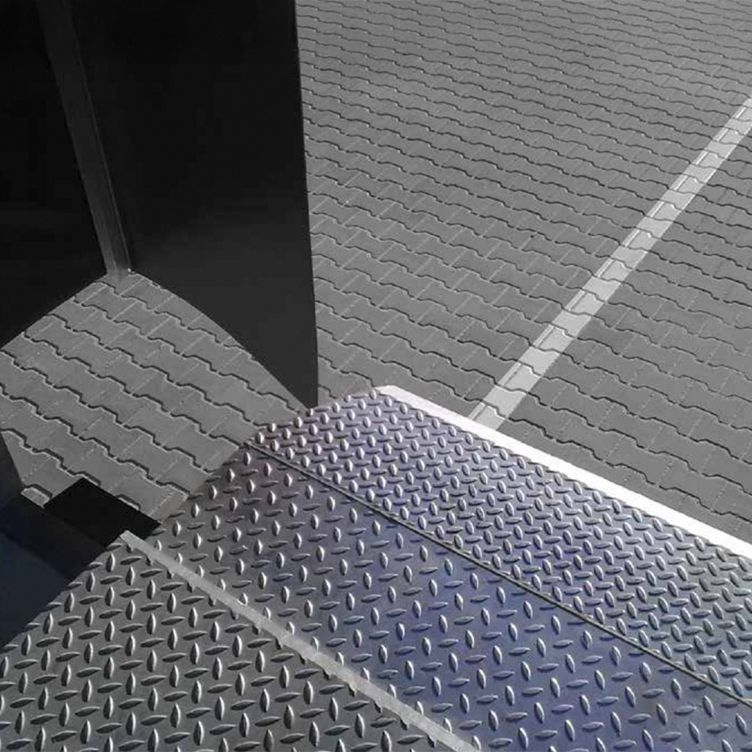

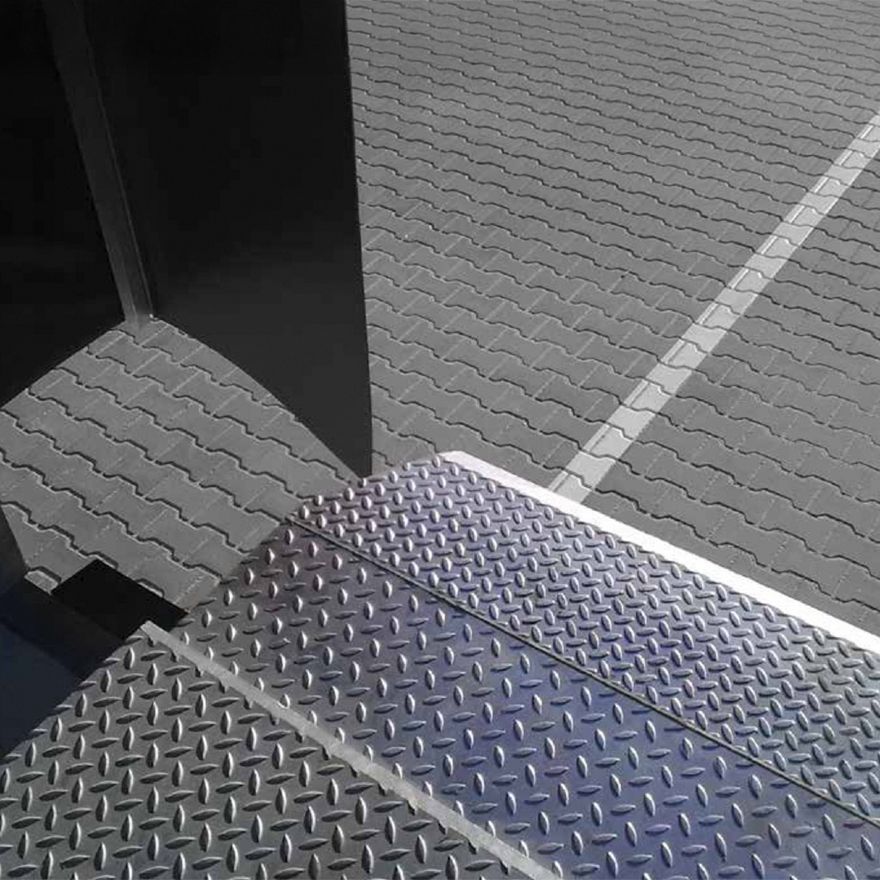

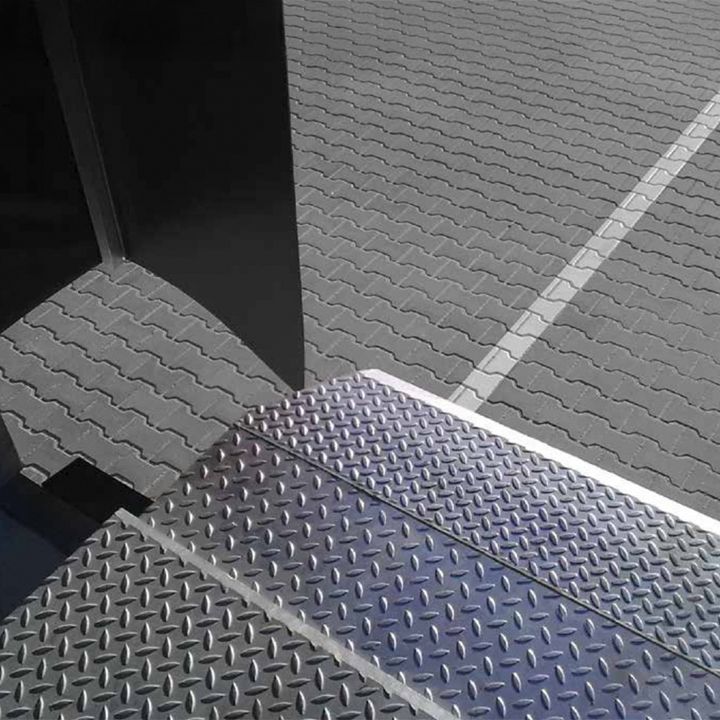

    ASSA ABLOY DL6221T (formerly Crawford) Teledock 100

    • Distribution and logistics
    • ASSA ABLOY

    Heavy duty precision docking with extra reach

    The ASSA ABLOY DL6221T Teledock 100 is a heavy-duty dock leveller with a telescopic lip and a 100 kN load capacity. Made from high-grade S355 steel, it’s designed for tough jobs and smooth operations—delivering strength, durability, and minimal maintenance.

    Downloads
    ASSA ABLOY DL6221T Teledock 100
    ASSA ABLOY DL6221T Teledock 100

    ASSA ABLOY DL6221T Teledock 100

    • Product ID: DL6221T
    • Normal length: 2000, 2500, 3000, 3500, 4000, 4500 mm (other sizes on request)
    • Normal width: 2000, 2200 mm
    • Load capacity: 100 kN (10 tonnes)
    • Vertical working range: Rise above dock up to 415 mm, Fall below dock down to 475 mm
    • Platform tear-plate thickness : 8 mm S355 ( 8/10 mm)
    • Lip material and lenght: Steel, 500/1000 mm
    • Control unit protection class: IP 54
    • Nominal voltage: 400V 3-phase, 230V 3-phase
    • Nominal motor power: 1,5 kW
    • Temperature range hydraulic oil: -20°C - +60°C
    • European standard: EN1398 dock levellers
