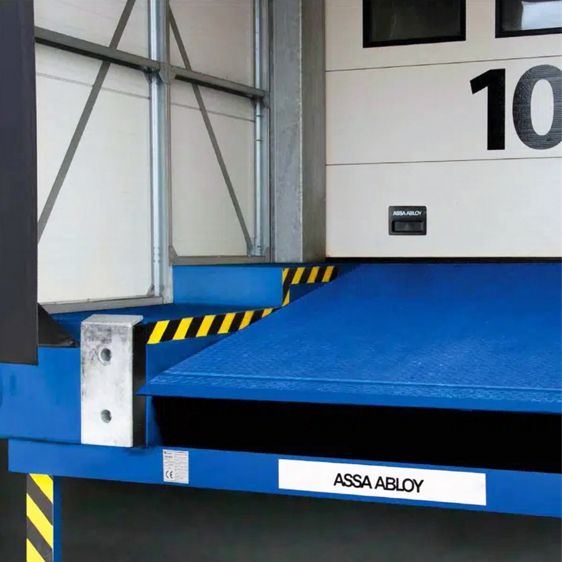

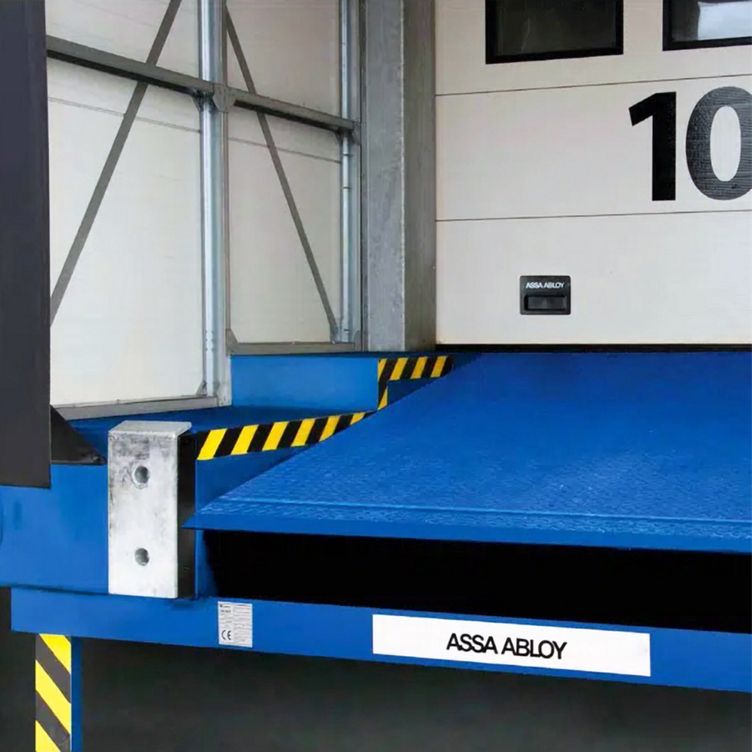

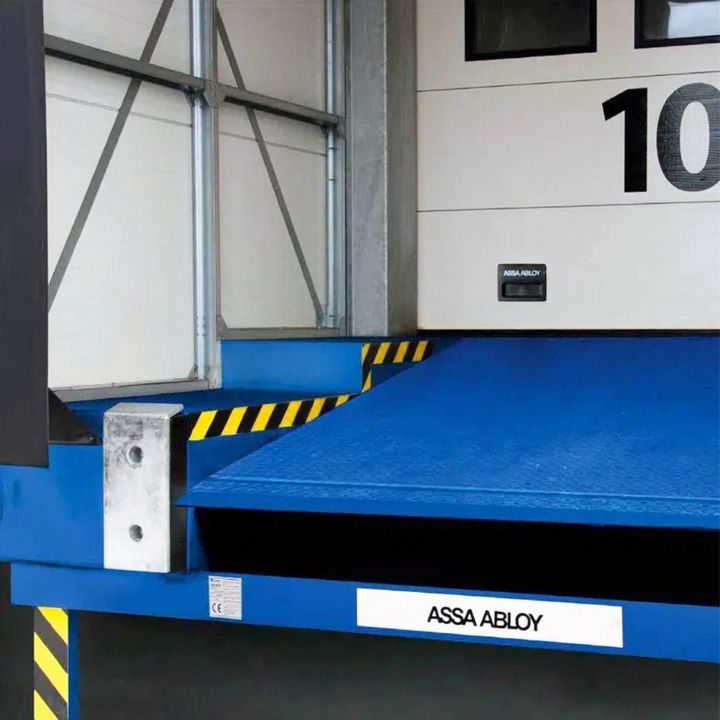

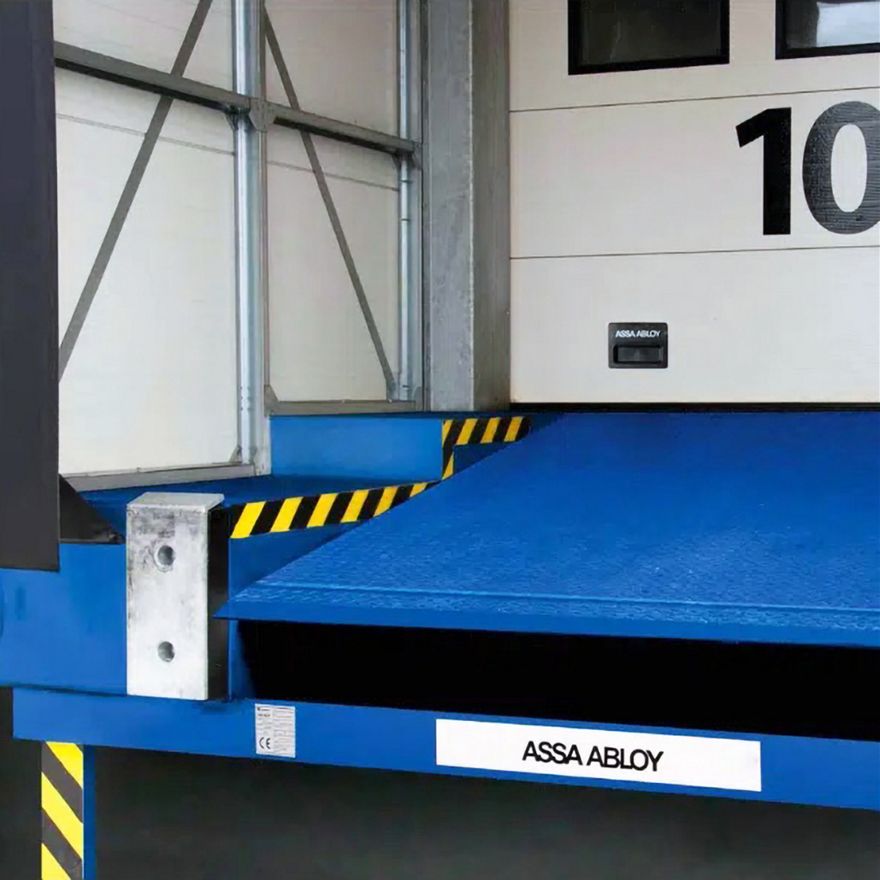

    ASSA ABLOY DL6220STA Step Autodock

    • Distribution and logistics
    • Manufacturing
    • ASSA ABLOY

    The DL6220STA lets trailers access your loading bay while keeping their rear doors closed. That’s essential for transferring goods that rely on temperature control—like food products—and where safety is paramount. It also makes for effective theft protection and is great for container transports that have customs requirements. And because it limits heat loss through open doors, you’ll also save on energy use and costs.

    Downloads
    ASSA ABLOY Step Autodock Dock Leveller
    ASSA ABLOY Step Autodock Dock Leveller

    1 of 2

    Cookie consent

    This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

    *Your choice will be saved in a cookie until you have closed your browser.

    • Nominal length: 2450 mm (other sizes on request)
    • Nominal width: 3300, 3500, 3600, 3750 mm
    • Load capacity: 60 kN (6 tonnes)
    • Steel grade all steel parts: S355
    • Vertical working range Rise above dock up to 220 mm, Fall below dock down to 620 mm
    • Platform tear-plate thickness:  6/8 mm
    • Lip Type and Length: telescopic, 500/1000 mm ergonomic lip, 345 mm
    • Lip Material: steel
    • Control unit protection: class IP 54
    • Nominal voltage: 400V 3-phase, 230V 3-phase
    • Nominal motor power: 1,50 kW
    • European standard: EN 1398 Dock levellers
