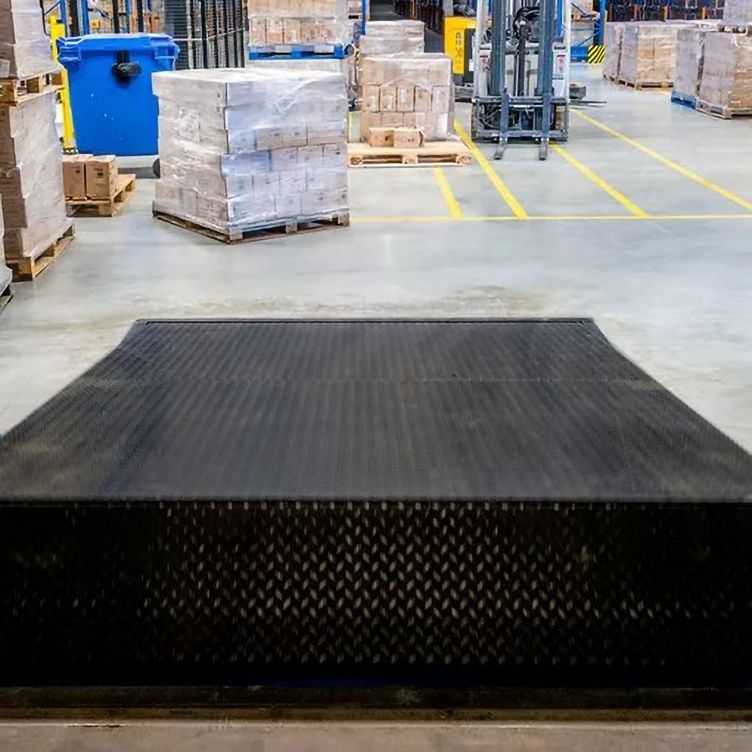

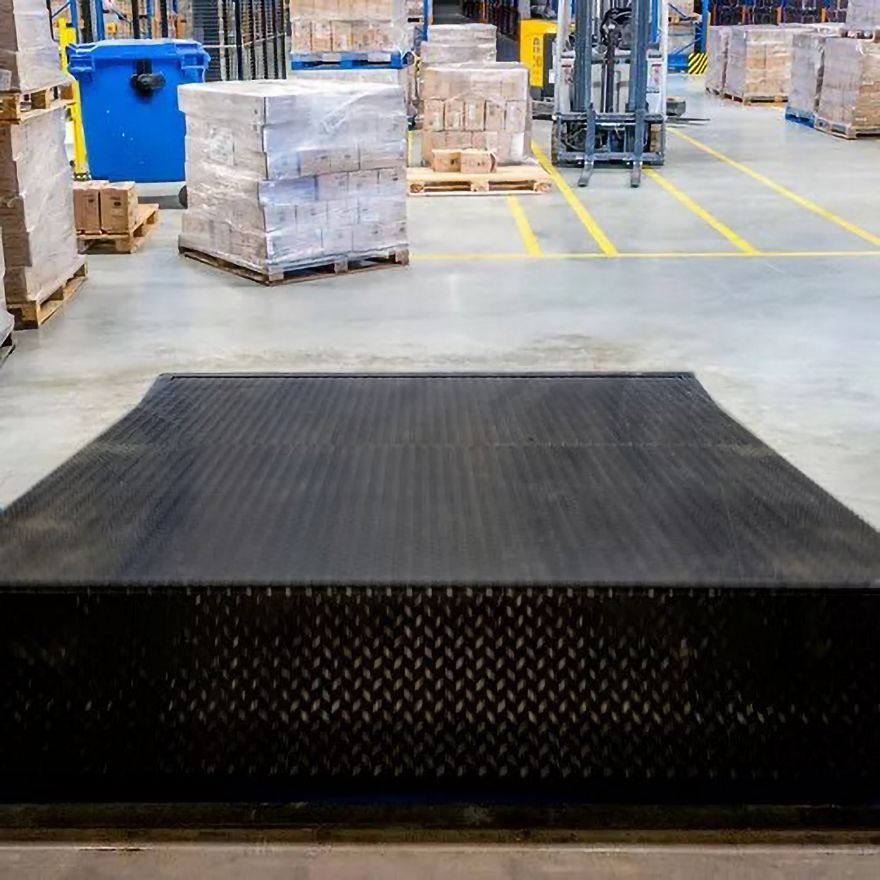

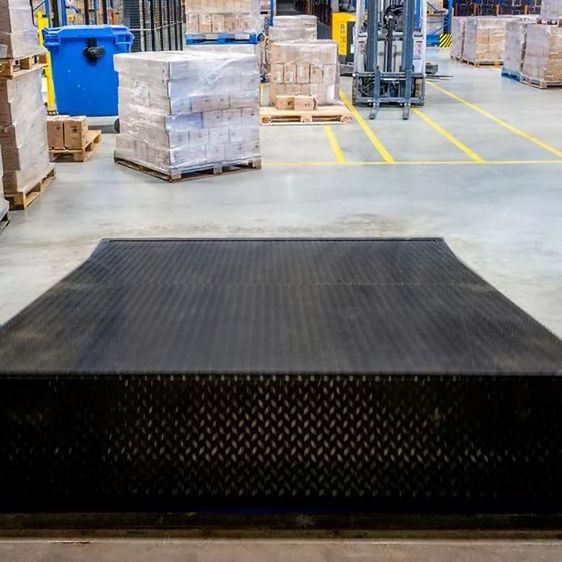

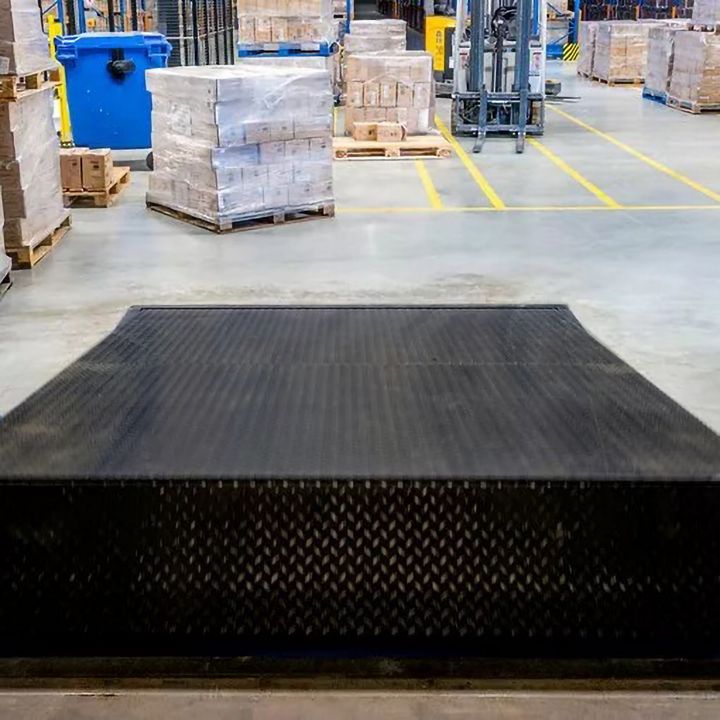

    ASSA ABLOY DL6211SA (formerly Crawford) Swingdock Autodock 100

    • Distribution and logistics
    • ASSA ABLOY

    Heavy-duty dock leveller, built for the outside - so you can do more inside.

    The ASSA ABLOY DL6211SA Swingdock Autodock is a powerful dock leveller with a 100 kN load capacity. Its self-supporting frame makes it easy to install outside your building with a loadhouse concept - freeing up indoor space and helping you protect your climate-controlled environment.

    The ASSA ABLOY DL6211SA Swingdock Autodock is a powerful dock leveller with a 100 kN load capacity. Its self-supporting frame makes it easy to install outside your building with a loadhouse concept - freeing up indoor space and helping you protect your climate-controlled environment.

    Downloads
    ASSA ABLOY DL6211S hydraulic swing-lip dock leveller
    ASSA ABLOY DL6211S hydraulic swing-lip dock leveller

    1 of 2

    ASSA ABLOY DL6211SA Swingdock Autodock 100

    • Product ID: DL6211SA
    • Normal length: 2000, 2450, 3000, mm (other sizes on request)
    • Normal width AD: 3300, 3500, 3600, 3750 mm
    • Leveller width: 2000, 2200 mm
    • Load capacity; 100 kN (10 tonnes)
    • Vertical working range; Rise above dock up to 270 mm, Fall below dock down to 270 mm
    • Platform tear-plate thickness: 8 mm S355 (8/10 mm)
    • Lip material & length: Steel, 400 mm
    • Control unit protection class: IP 54
    • Nominal voltage: 400V 3-phase, 230V 3-phase
    • Nominal motor power: 1,5 kW
    • Temperature range hydraulic oil: -15°C - +60°C
    • European standard: EN1398 dock levellers
