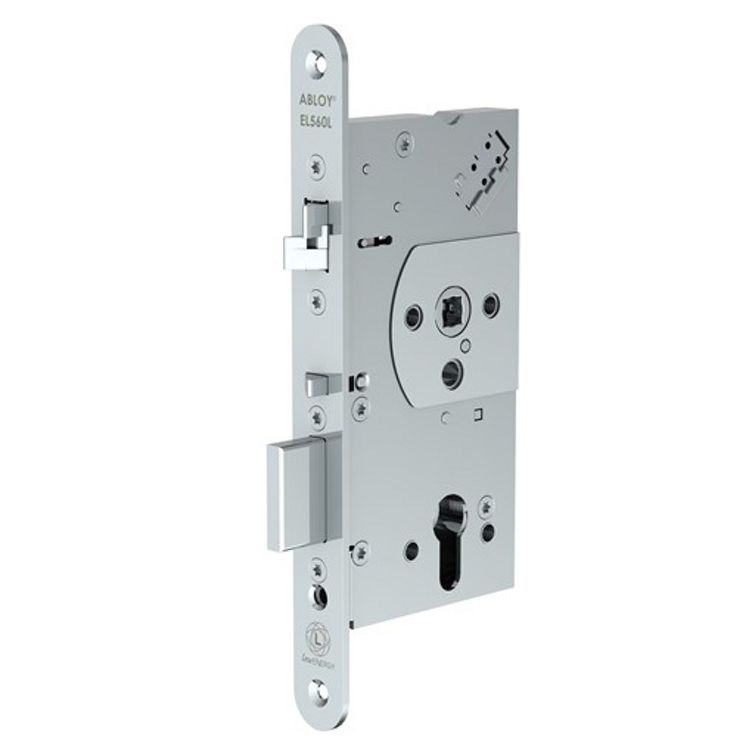

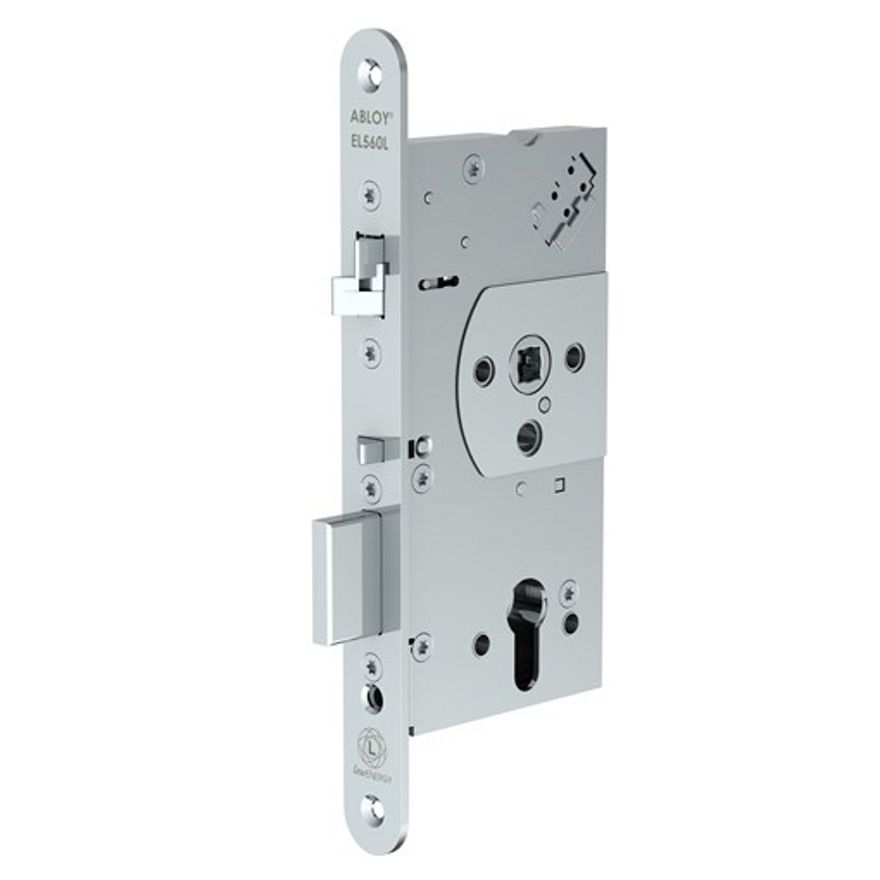

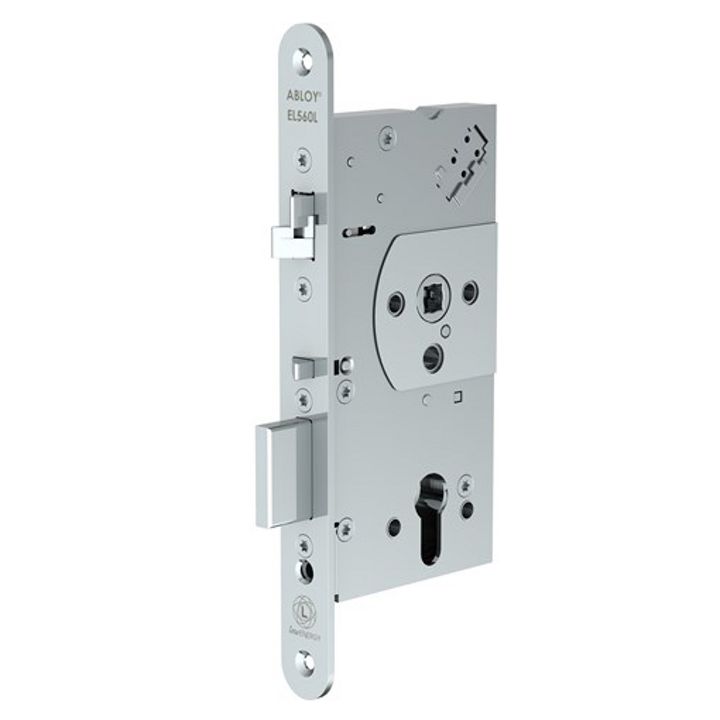

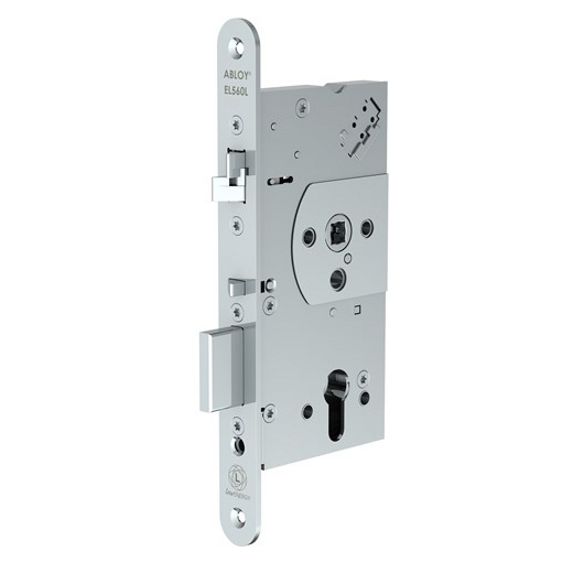

ABLOY Low Energy EL560L

Low Energy EL560L

EL560L is an Europrofile (DIN) range handle controlled Low Energy lock used in wooden and metal doors. Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used both in exit doors and fire rated doors (EN).
EL560L has the same dimensions and electrical indications as EL560.
All the same fittings and accessories can be used for example when replacing EL560 with EL560L.

Application

Recommended to be used in interior doors of business premises, public buildings, hospitals, educational premises etc.
Low Energy lock can be used in both main wired and wireless applications. Operating voltage of the lock case is extremely wide 3,6VDC - 27,6VDC. This means lock can be used also with battery operated systems.

Function

Only outside handle is electrically controlled. The lock can always be opened by inside handle. Mechanical opening by cylinder is always possible.
