CLIQ Updater

Secure outdoor update point for CLIQ keys

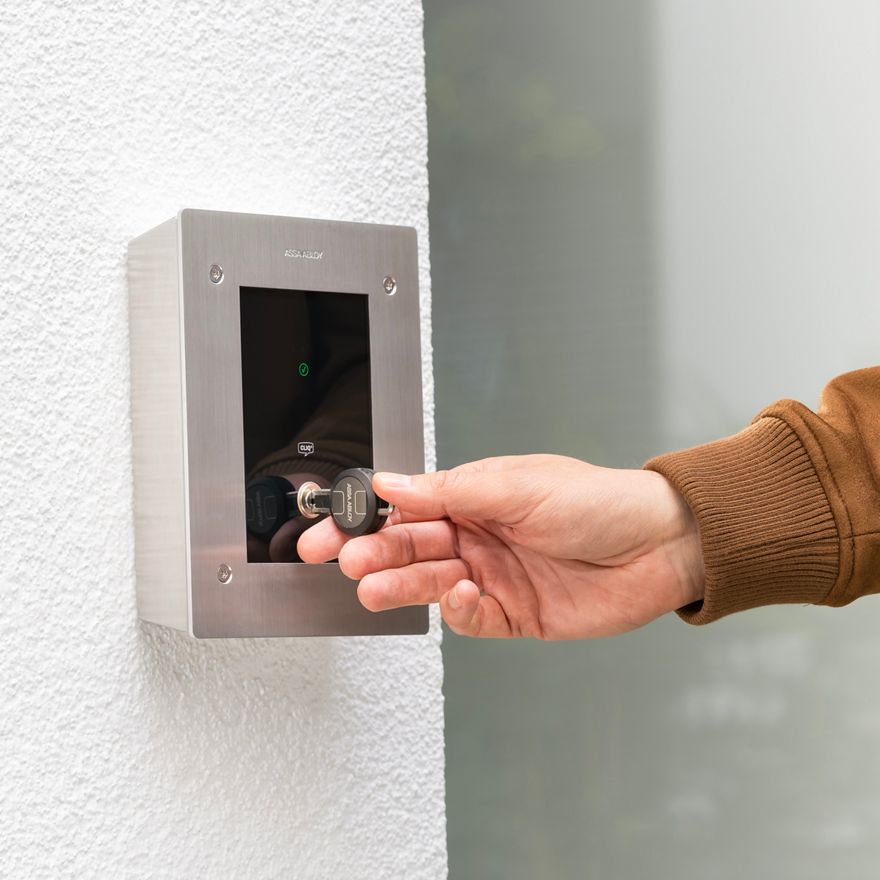

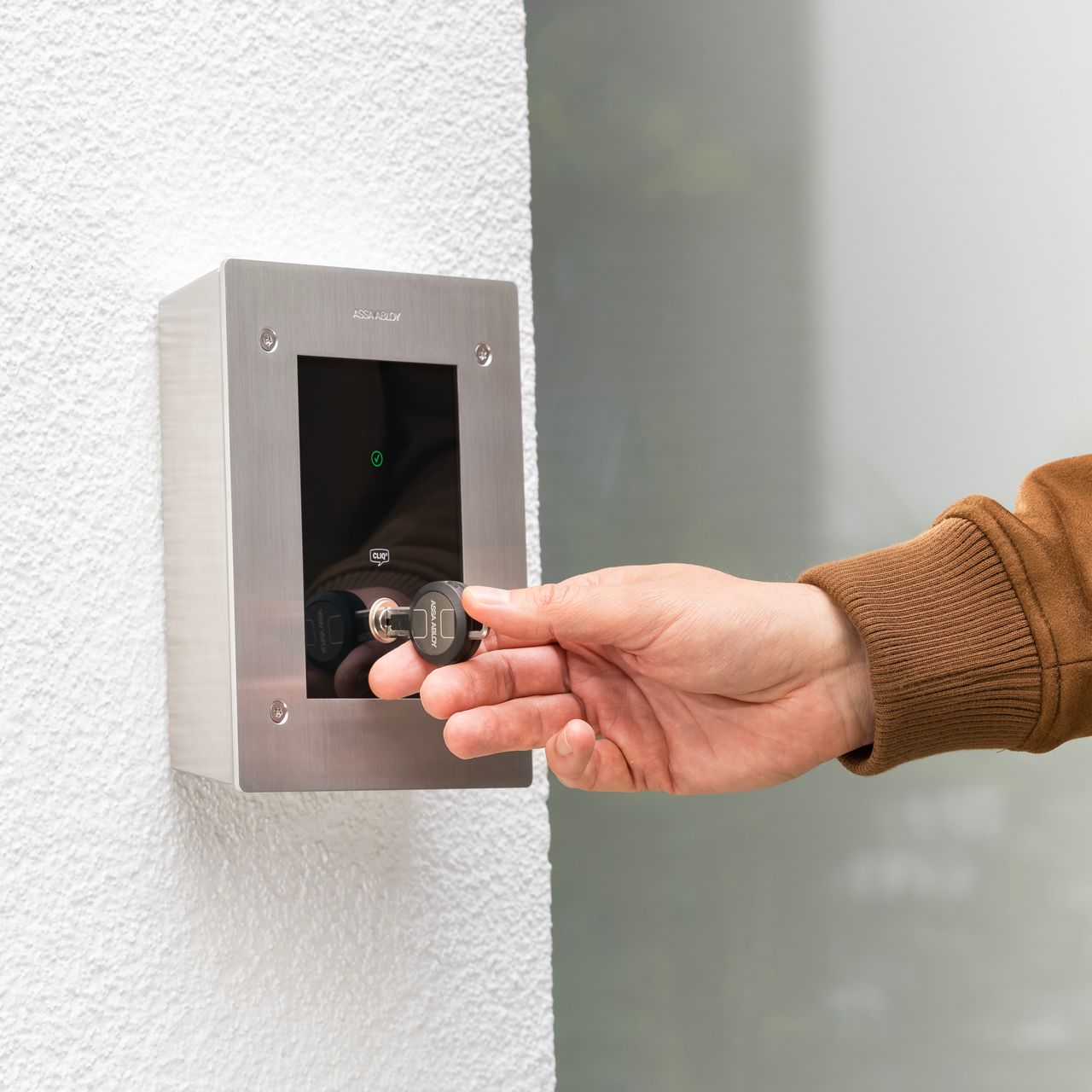

With its robust stainless-steel housing and protection against weather, dust and vandalism, the CLIQ Updater adds a secure CLIQ key update point outdoors. Because connecting the Updater does not require a network cable, the device is fast to install and ideally suited to retrofit projects.

The CLIQ Updater is simply connected to an existing CLIQ Wall PD (Gen 2), at a distance of up to 200 metres, with fewer cables and no need for network configuration. All security-related elements remain on the inside of your building, making this both more secure and more cost-efficient. When connected to a Wall PD featuring a free output switch function (FO1), the Updater can also activate third-party devices such as electric strikes.

The CLIQ Updater is compatible with all CLIQ user keys. It can be used with either CLIQ Web Manager or CLIQ Local Manager Remote. As the Updater takes over the configuration of the connected Wall PD, it is not shown separately in the management software.

Technical data and features

Housing material / colour: Stainless steel

Mounting options: Surface mounting; Flush mounting; Integrated into intercoms or panels

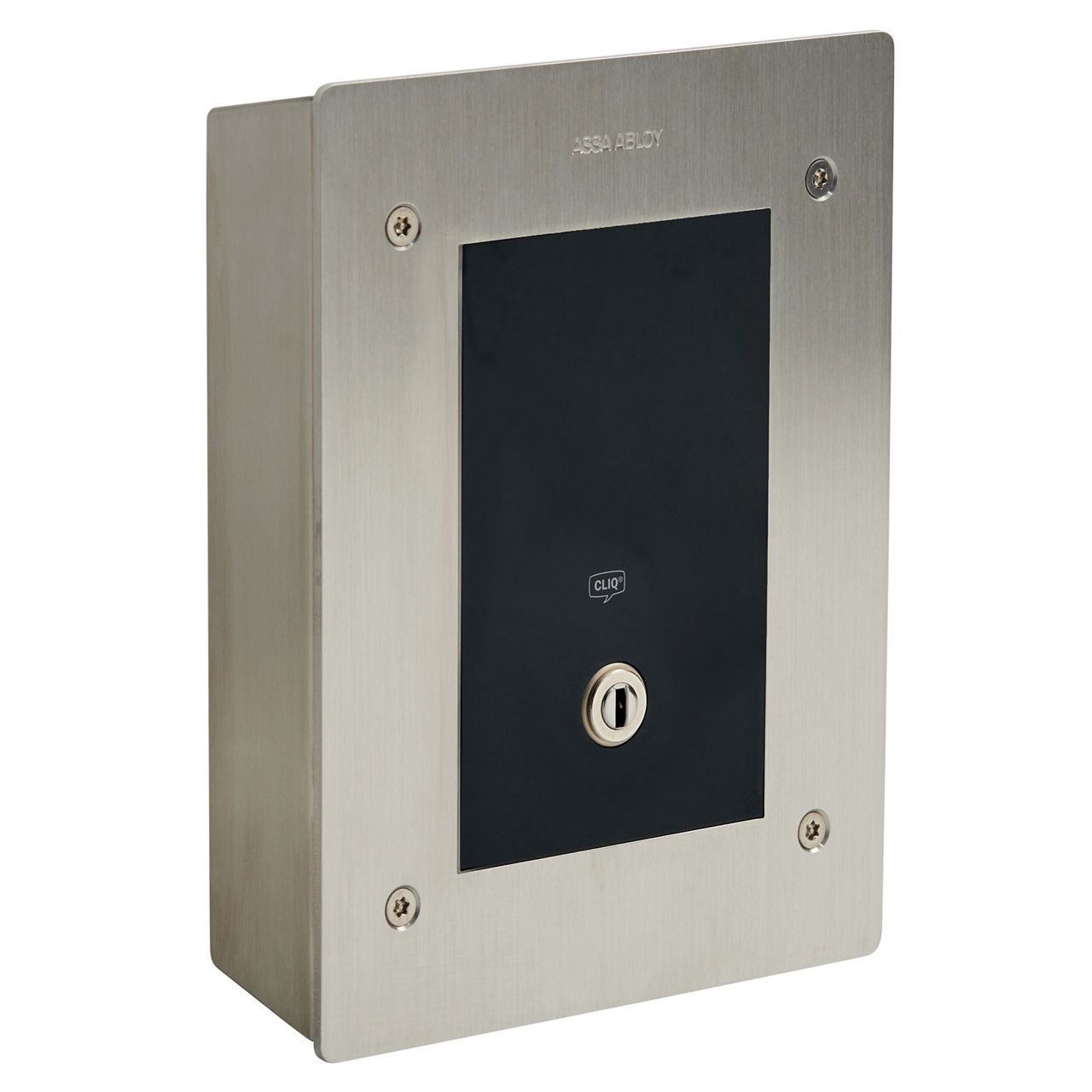

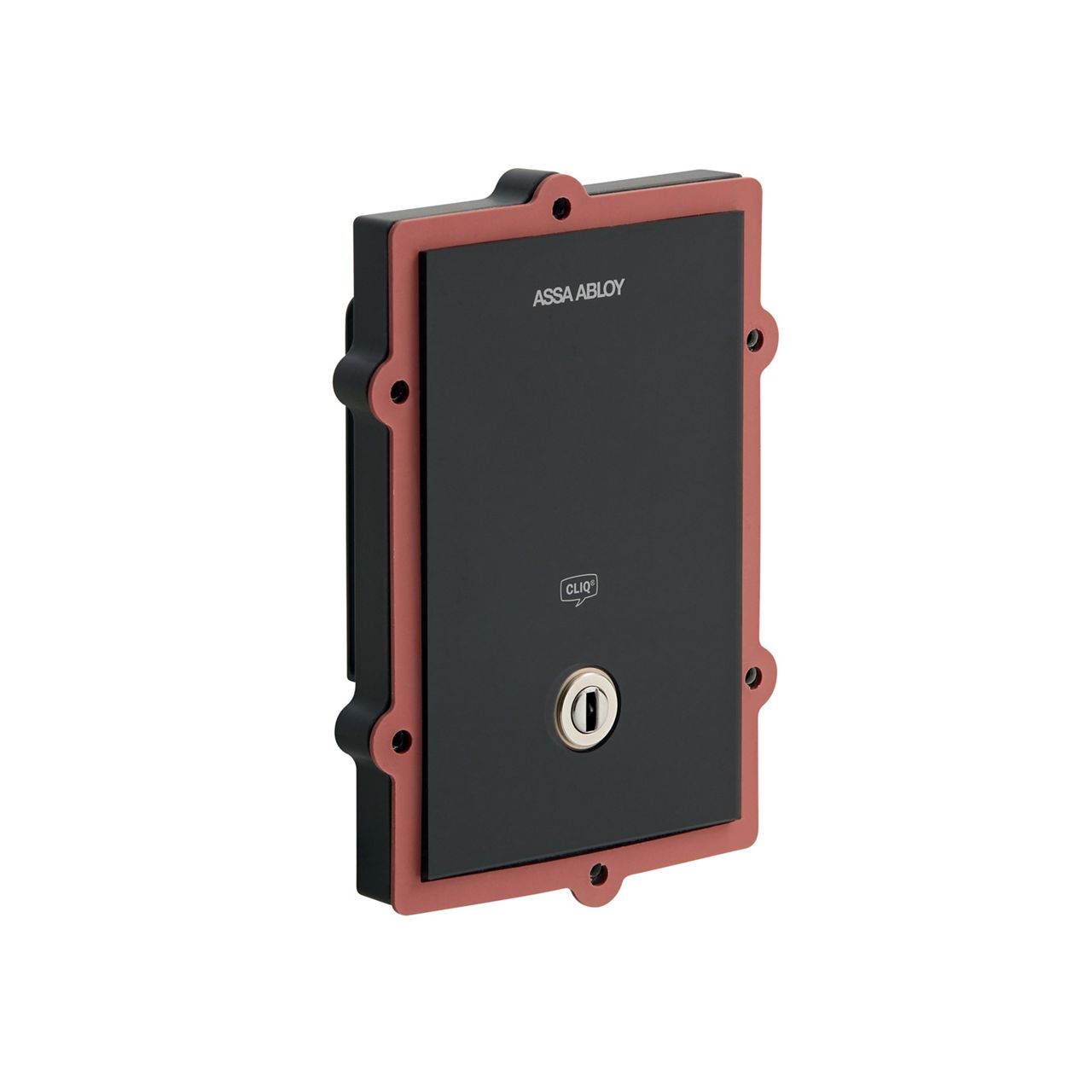

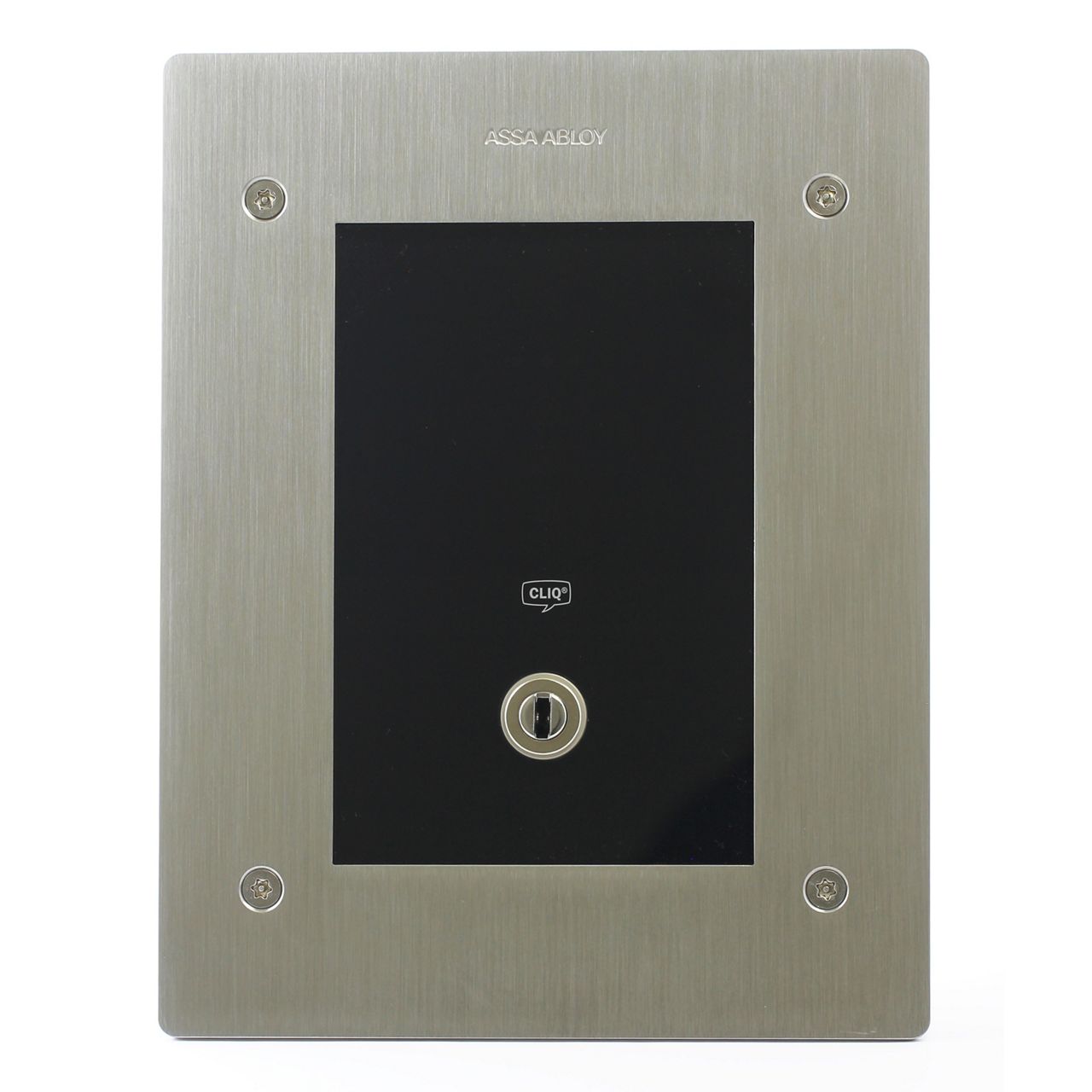

Dimensions (W x H x D):  Surface-mounted: 156 x 200 x 52 mm; Flush-mounted: installation dimension 135 x 181 x 45 mm, front plate 156 x 200 x 7 mm

Key adapter: Product-specific (eCLIQ / PROTEC2 CLIQ)

Connection: RS485 cable with a maximum distance of 200 m

Interfaces: All available functions of the connected Wall PD are mirrored. Wall PDs generation 2 with firmware 10.4 or higher are supported

Indicators: Visual and acoustic (all indications are mirrored from the connected Wall PD)

Data storage: No (data is stored in connected Wall PD)

Security: Contact-based data transmission

Encryption: AES / 3DES

Power: 12 V DC to 24 V DC ± 10 %; Current consumption at 12 V DC 0.1 A

Operating temperature range: –25 °C to +60 °C

Relative humidity: < 99 % (non-condensing)

Ingress protection: IP65

Impact protection: IK09

Certification: CE
