MEDIATOR - the motorised locking system without cables in the door leaf

Electrical control, self-locking, panic function, monitoring - the MEDIATOR lock solution offers everything like a motor lock - but without a cable in the door leaf!

How it works?

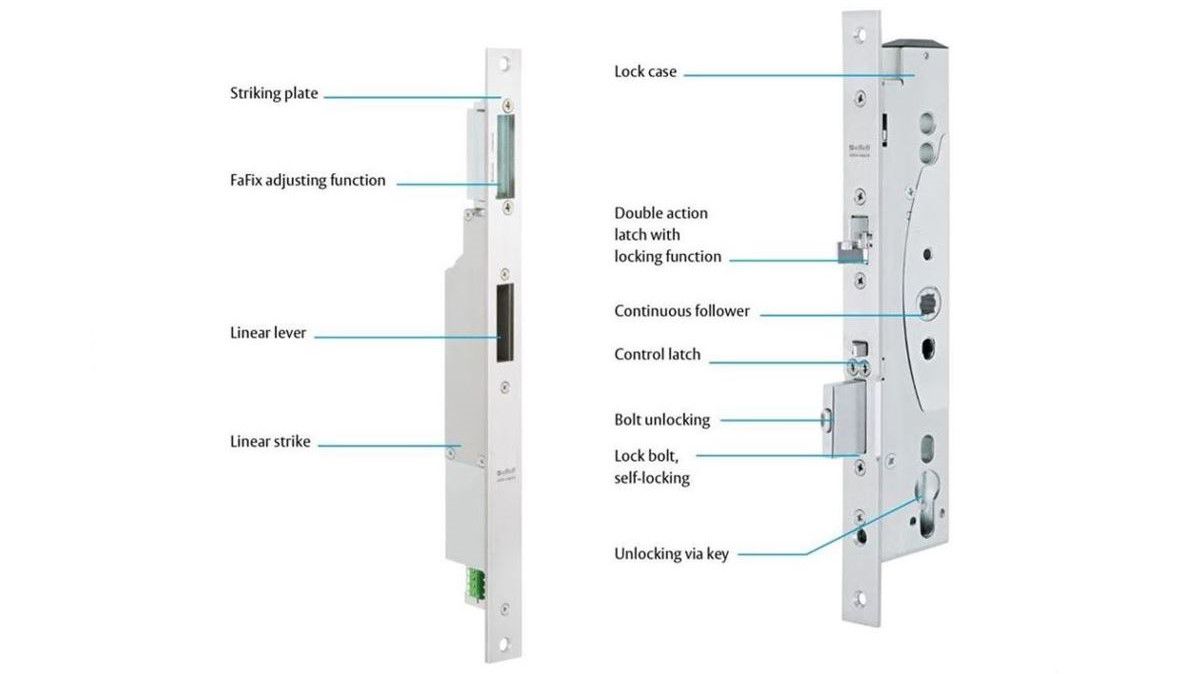

MEDIATOR is an electric strike with a self-locking panic lock.

What are

your advantages?

  • no wiring of the door leaf
  • cheaper to buy than a motorized lock
  • less effort during assembly
  • Electric control, self-locking, panic function - everything is included
  • Suitable for retrofitting a swing door drive
  • Also available as a multi-point lock
  • Tested safety according to VdS
  • Areas of application: apartment buildings, commercial buildings

Why doesn't MEDIATOR have to be wired in the door leaf?

The difference between the MEDIATOR and a conventional motorised lock is the unlocking process: In the motorised lock, the  motor of the lock in the door pulls the bolt.

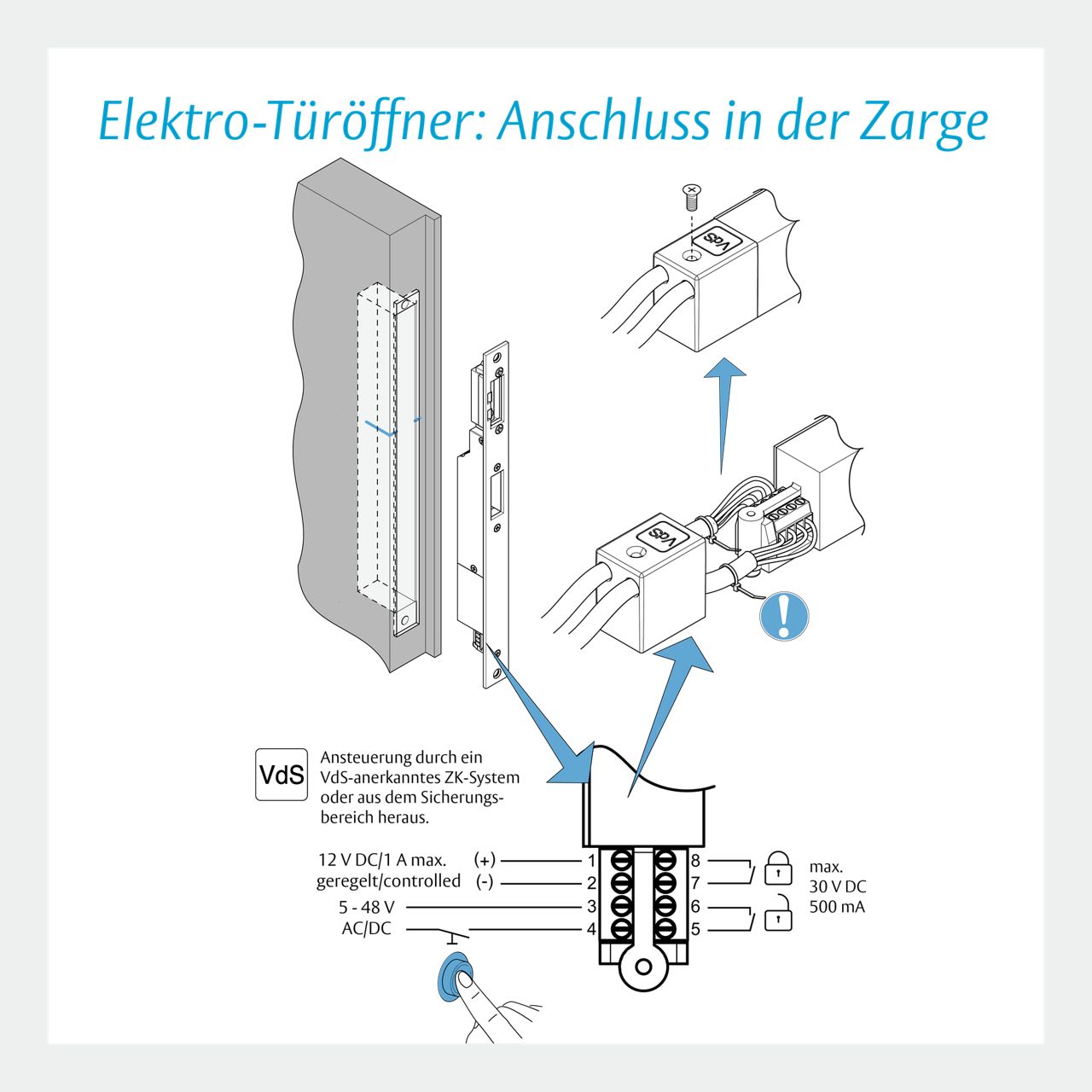

MEDIATOR is unlocked from the frame side using the linear electric strike. Electric wiring is therefore only required in the frame and there is no need to wire the door leaf and set a cable transition.

  • Electric strike Connection in the frame

Cost advantage: MEDIATOR

Up to 50% cheaper and much less effort!

MEDIATOR fulfills all the requirements that you place on a motorised lock - and that up to 50% cheaper than a motor lock!

Only the electric strikes needs to be wired in the frame - you do not need to install a cable transition for the door leaf for the electrical control. The effort is reduced accordingly - you save time and money!

MEDIATOR - can do the same as a motorised lock

The mechanical lock offers self-locking and a panic function. I.e. concerning insurance reasons, the door is always locked as soon as it has fallen into the latch. At the same time, the escape route is always open from the inside in the case of emergency - even without a key.

The door is controlled electrically via the electric strike: the door can be opened comfortably using the button in the apartment as usual. A combination with access control, intrusion alarm system or automatic door drive is possible.

And what else can the MEDIATOR do?

Retrofitting a swing door drive

Once the MEDIATOR has been installed, door automation can also be retrofitted easily and cheaply - MEDIATOR already has the VdS-certified bolt switch contact required on board.

Multi-point locking for increased intrusion protection

If you want even more protection against intrusion: MEDIATOR is also available as multi-point lock locking the door at three points with a main lock and two secondary locks.

Tested security: MEDIATOR has all important certifications and approvals

  • VdS approval as locking monitoring VdS class C, G 109 032
  • VdS approval as mechanical locking VdS class A, M 109 314
  • VdS approval as an electromechanical actuator for access control systems VdS class C, Z 109 001
  • Approval according to DIN EN 179 as an emergency exit lock
  • Approval according to DIN EN 1125 as a panic lock
  • Building authority test certificate for use in fire and smoke protection doors No. 120003555

And what does MEDIATOR offer your customers?

MEDIATOR in apartment buildings

Lock the front door at night - yes or no? With MEDIATOR, the question no longer arises in apartment buildings.

With MEDIATOR, the main door is now permanently locked - day and night. Thus, the apartments are well protected from burglars and other uninvited guests. The house can be left at any time - in the case of emergency and in "normal operation" - even without a key. The front door can also be opened at any time using the electric strike button in the apartment, even when the door is permanently locked by the self-locking mechanism.

The conversion or retrofitting of front doors in apartment buildings to MEDIATOR is quick, uncomplicated and extremely cost-effective.

MEDIATOR in commercial and public buildings

Side entrances, staff entrances, doors to server rooms, entrance doors to medical practices and law firms, access to management or human resources, there are many doors in everyday business and operations that have to be locked again for security reasons after each opening. MEDIATOR ensures that these doors are always securely locked.

In the direction of escape, however, the door can always be opened safely and without a key.

MEDIATOR can be combined with an access control system or with a burglar alarm system and reports the door status at any time via the integrated monitoring contact.

Whether new buildings or retrofitting, conversion or renovation - MEDIATOR is suitable for every application.
