Escape route technology

The dilemma with escape route doors is the danger of unauthorised use.

The escape route must be free - but controlled!

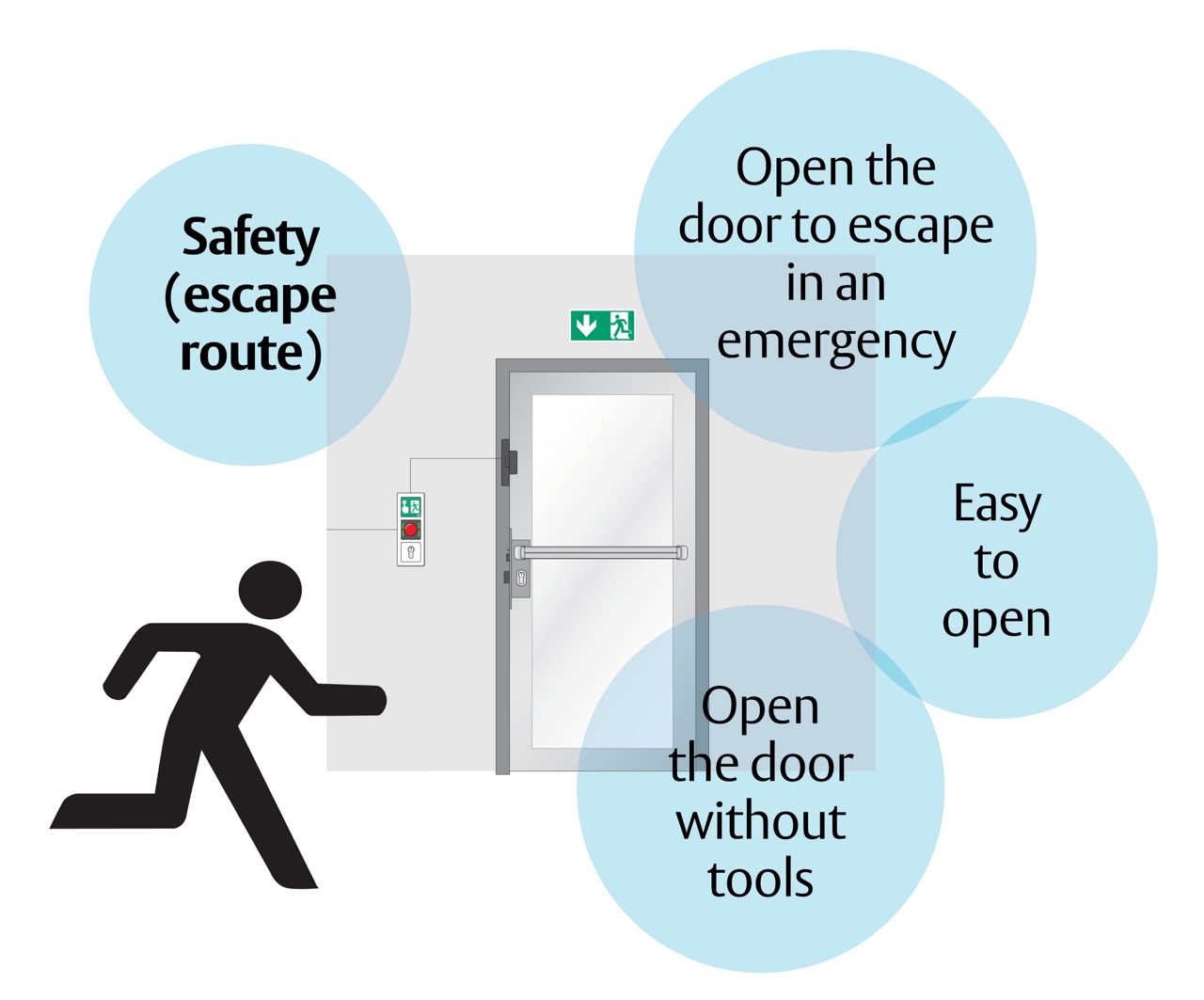

Requirements of escape doors (Safety)

Requirements of escape doors (Safety)

  • In emergency case, the door has to be opened from the inside
  • The door has to open easily and without tools
  • Only authorised persons are allowed to open the door without an alarm

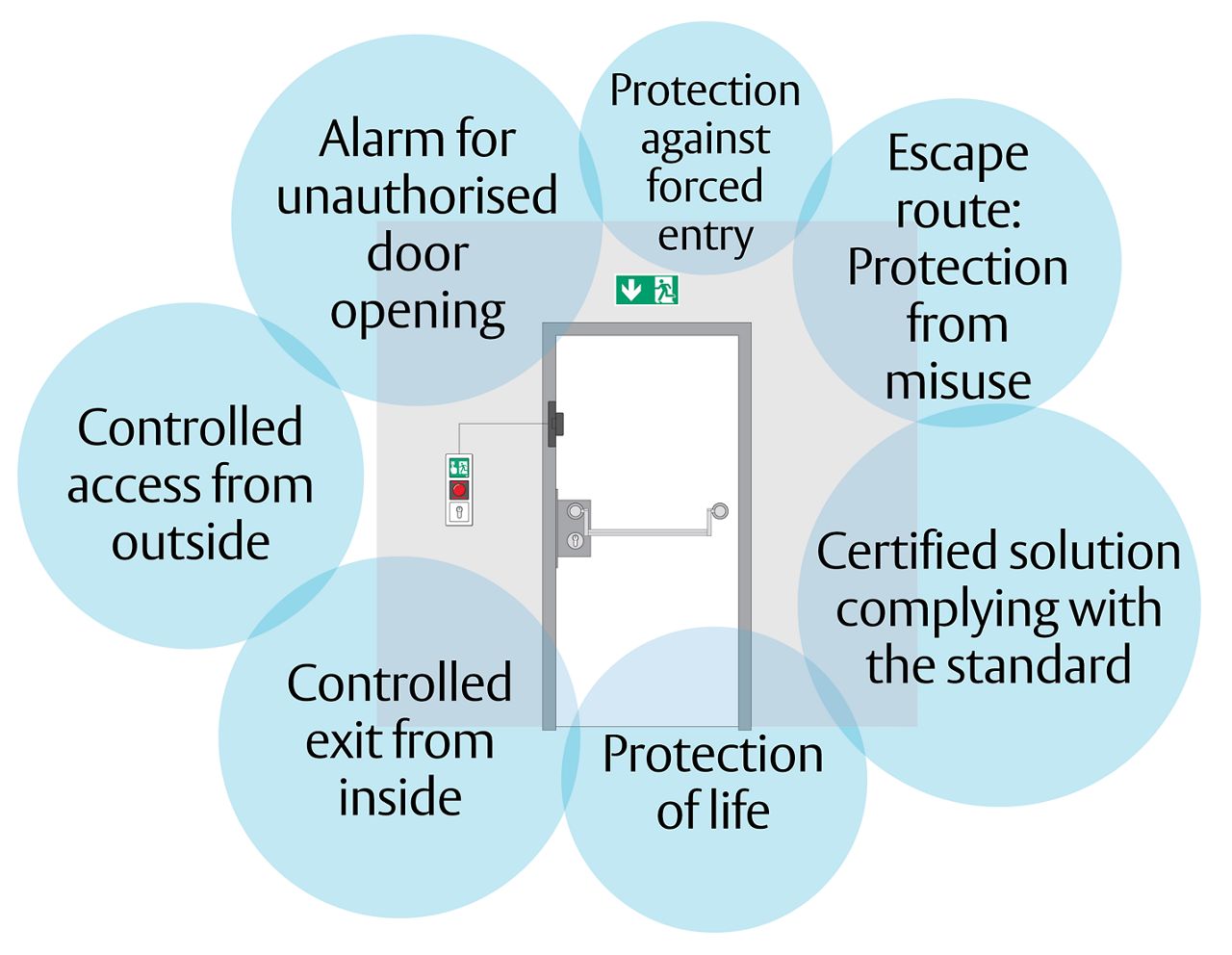

Operator's requirements (Security):

Operator's requirements (Security):

  • Protecting escape route from misuse
  • Solution must be certified and comply with EN 13637
  • Protecting life and property
  • Controlled access from outside
  • Controlled exit from inside
  • Alarm in the event of an unauthorised door opening
  • Protection against forced entry

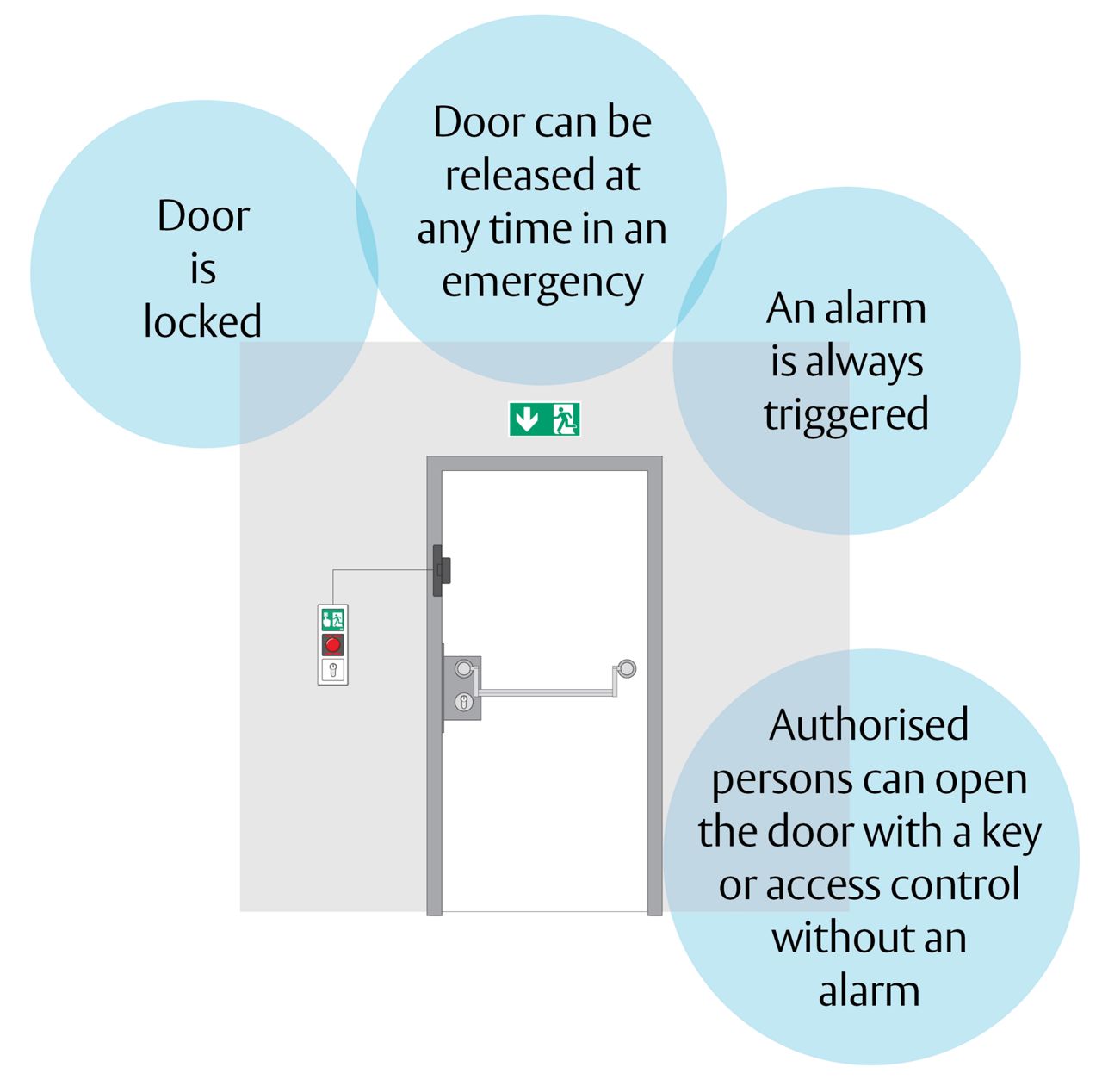

The solution: Electric escape door locking system

The solution: Electric escape door locking system

  • Against unauthorised use, the escape door is locked additionally to the main lock  (e.g. escape door striker)
  • The additional locking works on the fail-safe principle, i.e. the lock is deactivated in the event of a power failure
  • In case of emergency, the additional locking is released via an electrically controlled terminal.
  • An alarm is always triggered.
  • Authorised persons can open the door at any time using a key or access control (PIN, ID) without triggering the alarm.

ePED® technologie

The innovative ePED® technology for escape doors fulfills the requirements of the new EU standard EN 13637.

It convinces with its easy installation and new designs.

  • ePED® panic touch bar

    The innovative touch bar includes the complete electrically controlled escape door sytem in one single unit.

  • ePED® display terminal

    The design-oriented terminal concentrates 4 modules in one touch display.

  • ePED® switch range

    The ePED terminal is easy to wire and easy to put into operation.

  • EU standard: EN 13637:2015

    The European standard for  "Electrically controlled escape door systems in escape routes".
