The high-quality, patented radii profile: The new profile of the SK6 system
The newly developed and patented IKON radii profiles are based on a high-quality and stable key blank made of nickel silver with six active spring-mounted pin tumblers.
The profile match of the key is arranged parallel to the back of the key. The profile features are designed as radii. The specific arrangement of radii on the variable and fixed profile features on the outside of the key makes it significantly more difficult to read and copy keys. The radii profiles are characterised by a high level of protection against break-ins, scanning and lock picking compared to conventional key profiles.
Advantages of radii profiles at a glance:
- High-quality locking systems with long-term patents
- Profiles available for all applications and requirements – from basic requirements to highly complex master key systems
- Optional increased copy protection with side profile control pin already possible in the basic version
- Upgrade from Radii profile to radii profile Extra possible at a later date
- Upgrade with CLIQ technology for Radii profile, Radii profile plus and Radii profile Extra possible
- Active spring-mounted pin tumblers in accordance with DIN EN 1303 or DIN 18252 = security against break-ins, scanning and lock picking
- DIN EN 1303, lock security class 6
- DIN EN 1303, intrusion resistance class 0, optionally with drilling protection class B/D and pulling protection
- Optional DIN 18252:2006--certified, class 82*, with drilling protection and optional cylinder protection
- High-quality, stable nickel silver key with 13 mm key neck and ergonomic, square key head
- Increased drilling protection as standard thanks to the use of a hardened steel pin in the cylinder housing and the first pair of steel pins
- High pulling protection as standard thanks to the use of a clawed nickel silver cam
- Protected key profile with security card
- Keys available with integrated transponder
- Optionally available with colour pins
- Very wide range of cylinder variants and types
- Fast and easy ordering
- Simple master key system management
- Reliable technology, perfect precision, high quality and proven long life cycle
* Intrusion resistance classes 1 and 2 or A and B require no pulling protection if the cylinder is used with drilling protection in combination with ES2 ZA class security fitting with pulling protection.

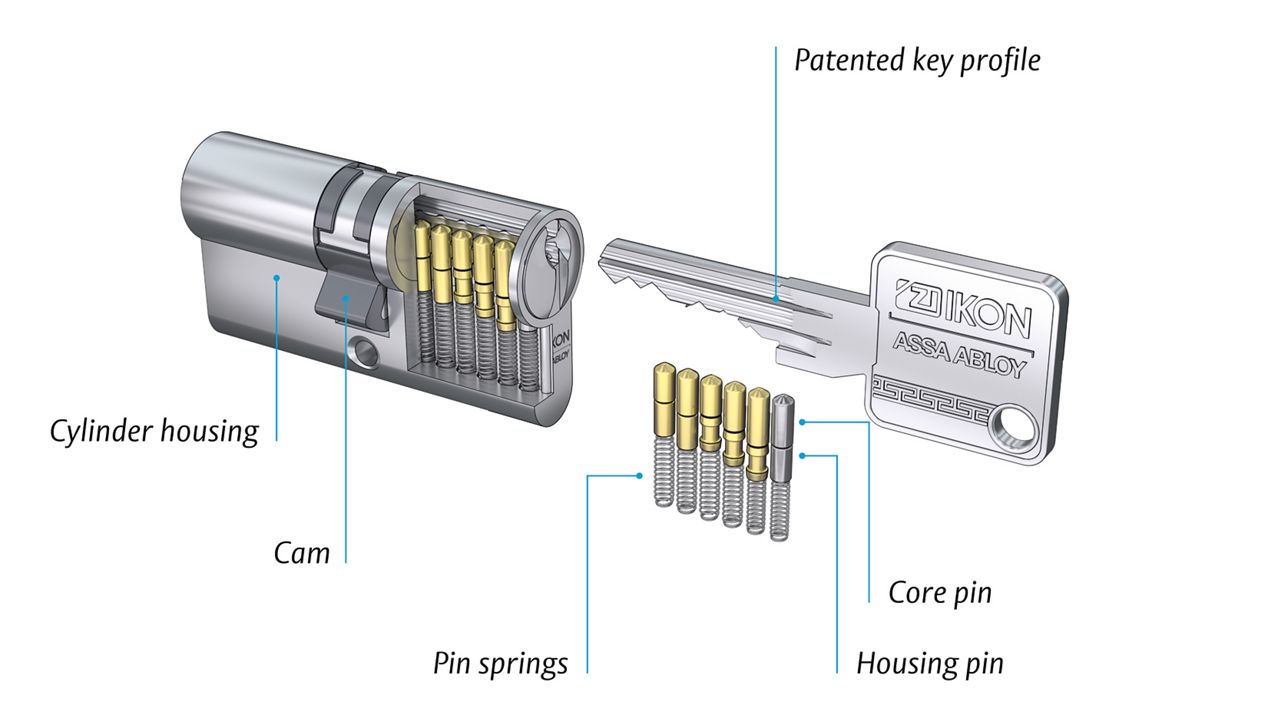

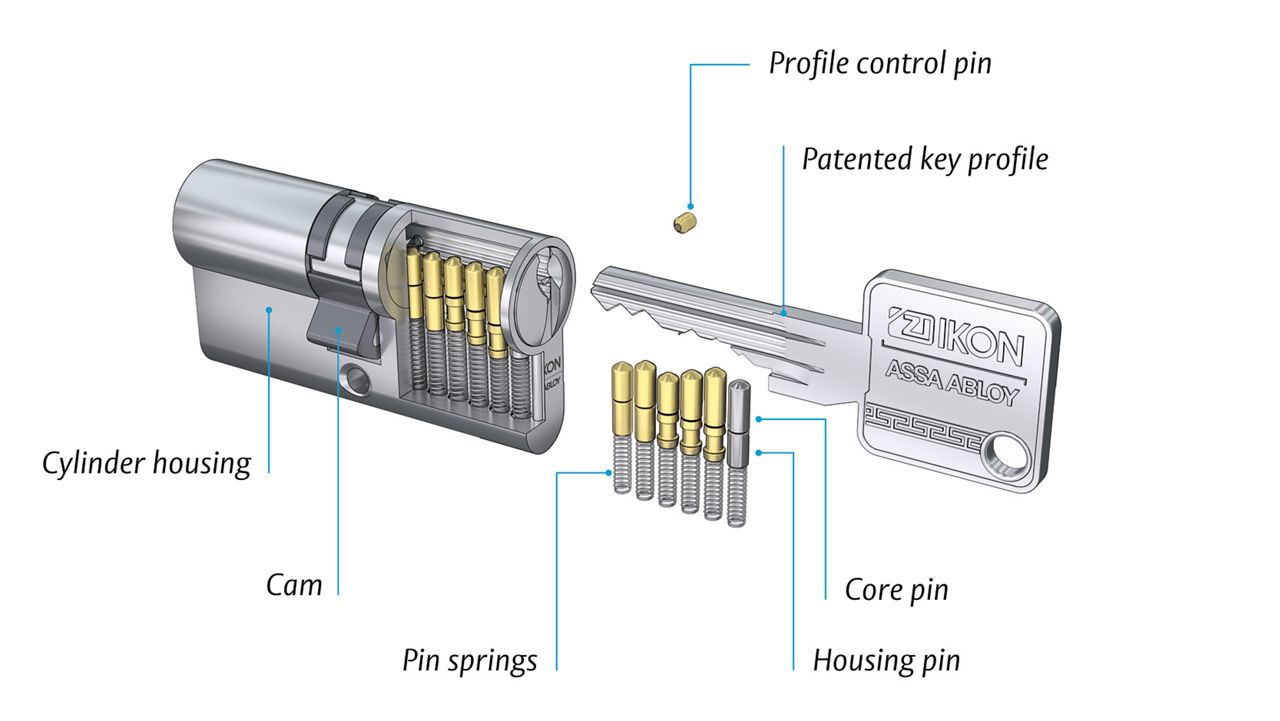

Radii profile and Radii profile Plus
Radii profile and Radii profile Plus
The new patented SK6 radii profiles in the 1st and 2nd security level is characterised by six active spring-mounted pin tumblers.
In the 2nd security level, a profile control pin with key catch function is optionally available, which also provides greater technical key copy protection. This profile control pin can also only be used in selected locking cylinders, e. g. on security-relevant external doors.

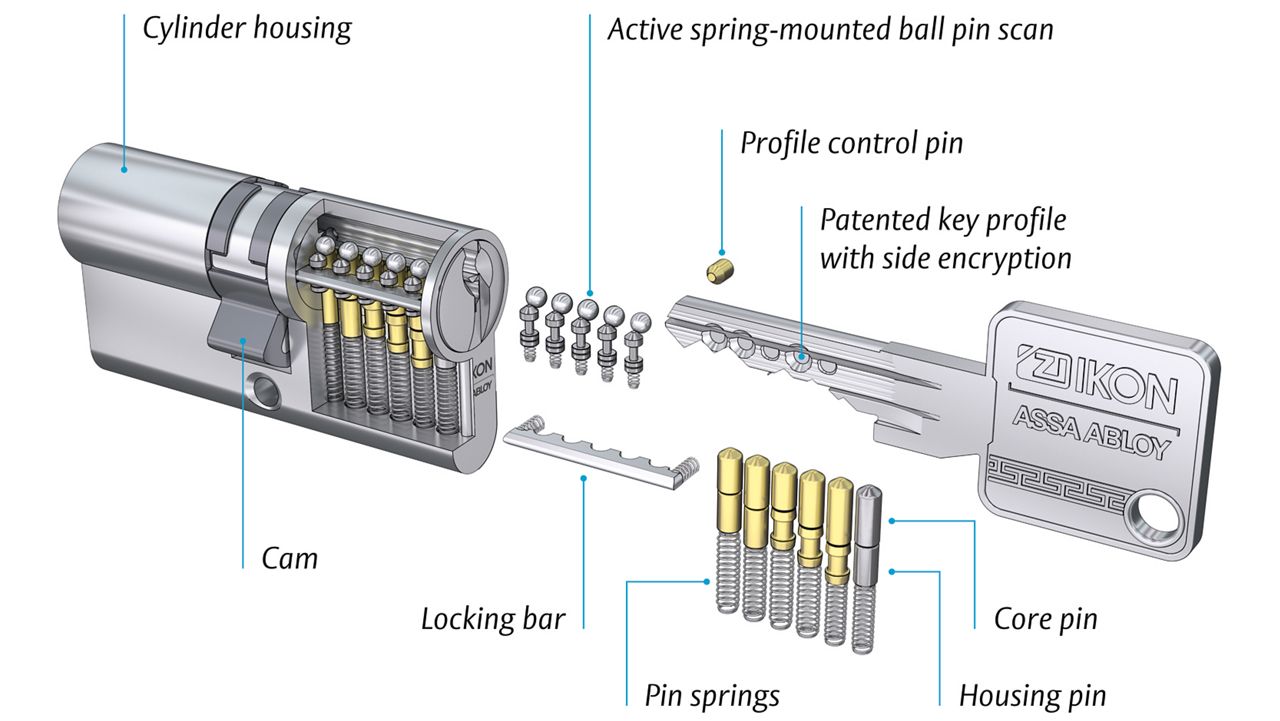

Radii profile Extra
Radii profile Extra
The patented Radii profile Extra features up to eleven active spring-mounted pin tumblers.
The key of the Radii profile Extra has an additional encryption, which is scanned by up to five active spring-mounted ball pins in the locking cylinder. This type of control on the side of the key profile ensures there are more options for combining and organising systems and also provides even greater protection against lock picking and key copying.

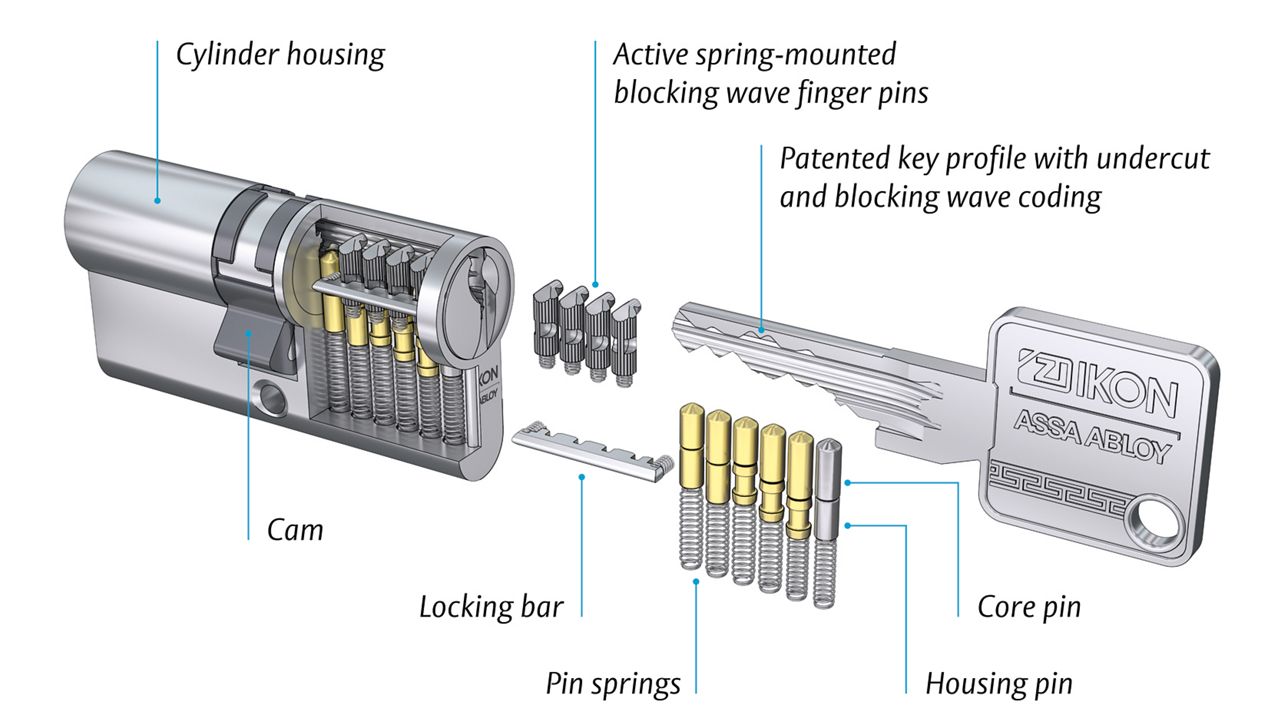

Radii profile Blocking wave
Radii profile Blocking wave
The patented Radii profile Blocking wave is characterised by ten active spring-mounted pin tumblers.
An additional encryption, the locking wave, is cut in to the long sides of the key. This encryption is read by special spring-borne tumblers in the locking cylinder. If a key with missing or incorrect encryption is used, the locking action will be blocked.
The additional undercut in the key profile gives the key a more complex shape and consequently increases copying protection. The locking wave profile meets requirements for mechanical protection against key copying and against lock picking to a very large extent.
