DC347

For Single leaf doors up to size EN7 (1600 mm)

Features of DC347

• Rack and pinion door closer with link arm L197
• Certified in compliance with EN 1154, size 5 -7
• Suitable for fire and smoke protection doors
• For single action doors with a width of up to 1600

mm

Characteristics of DC340

• Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
• Can be used for left and right handed doors
• Axis height-adjustable up to 14 mm
• Thermodynamic valves for consistent performance
• For heavy door applications
• Closing speed, latching speed and backcheck adjustable via front facing regulating valves
• Variable adjustable closing force
• Opening angle up to 180°

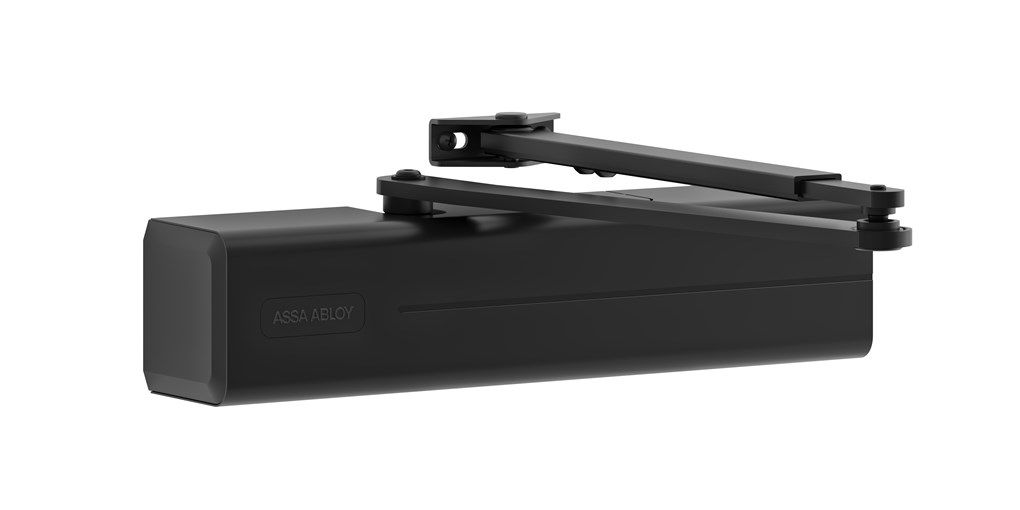

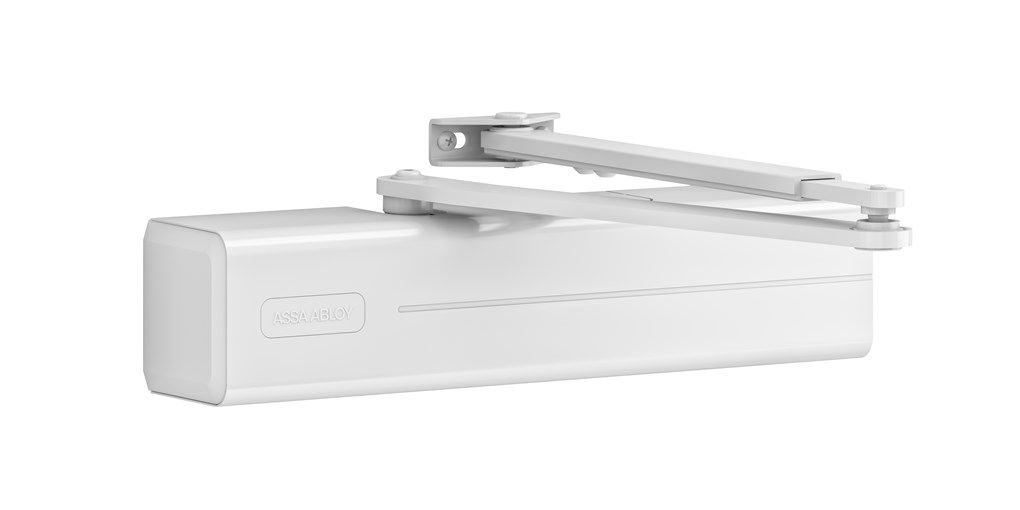

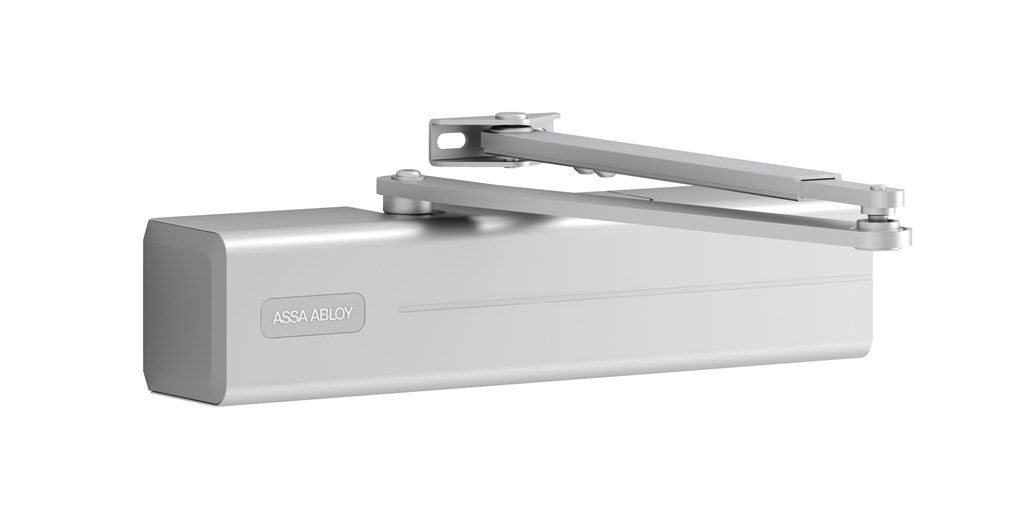

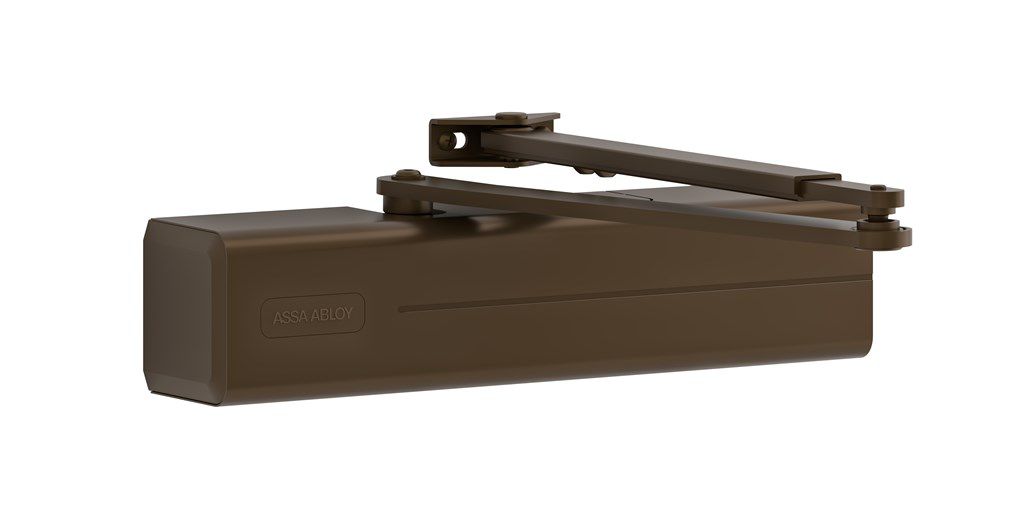

• Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005
• Customised finishes available on request
