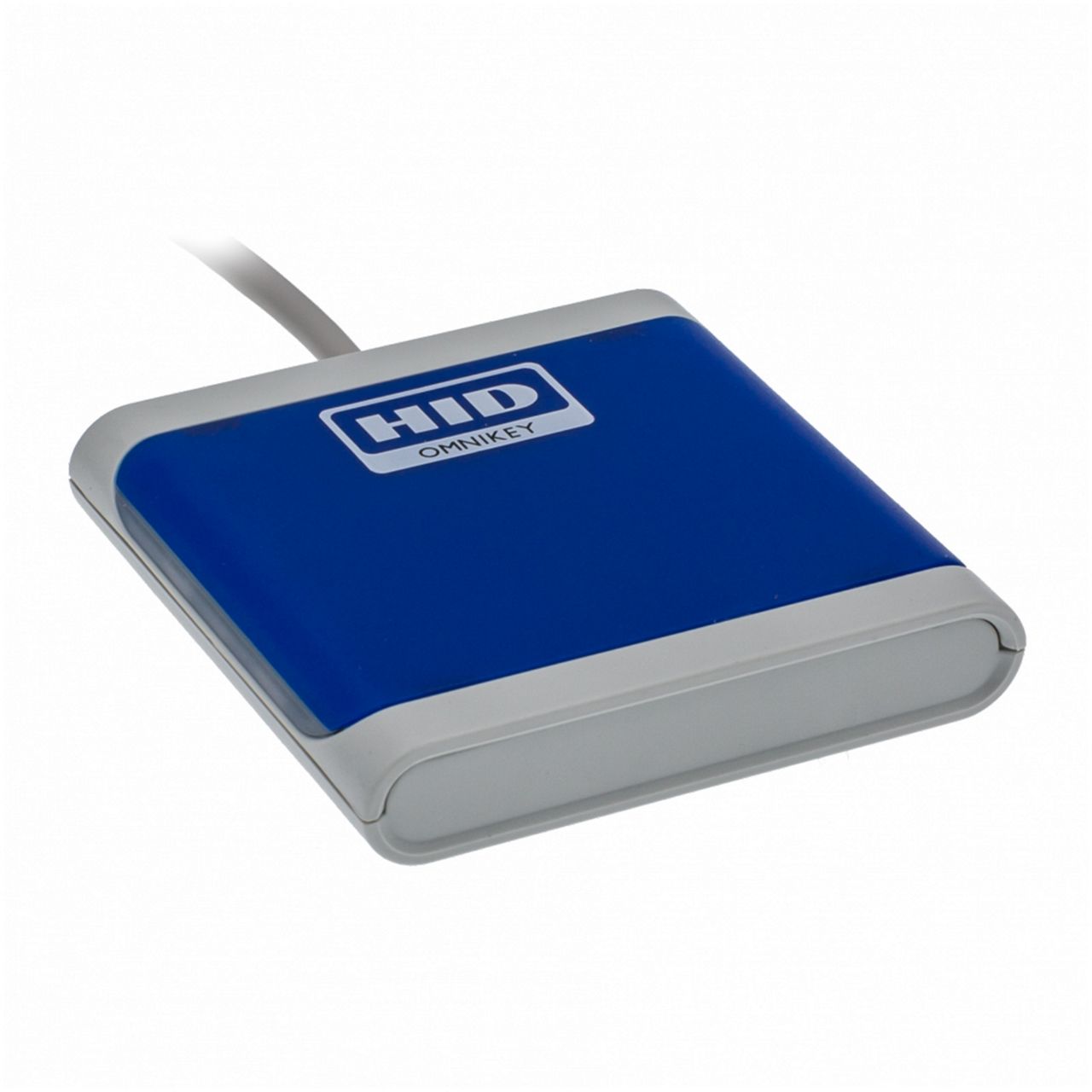

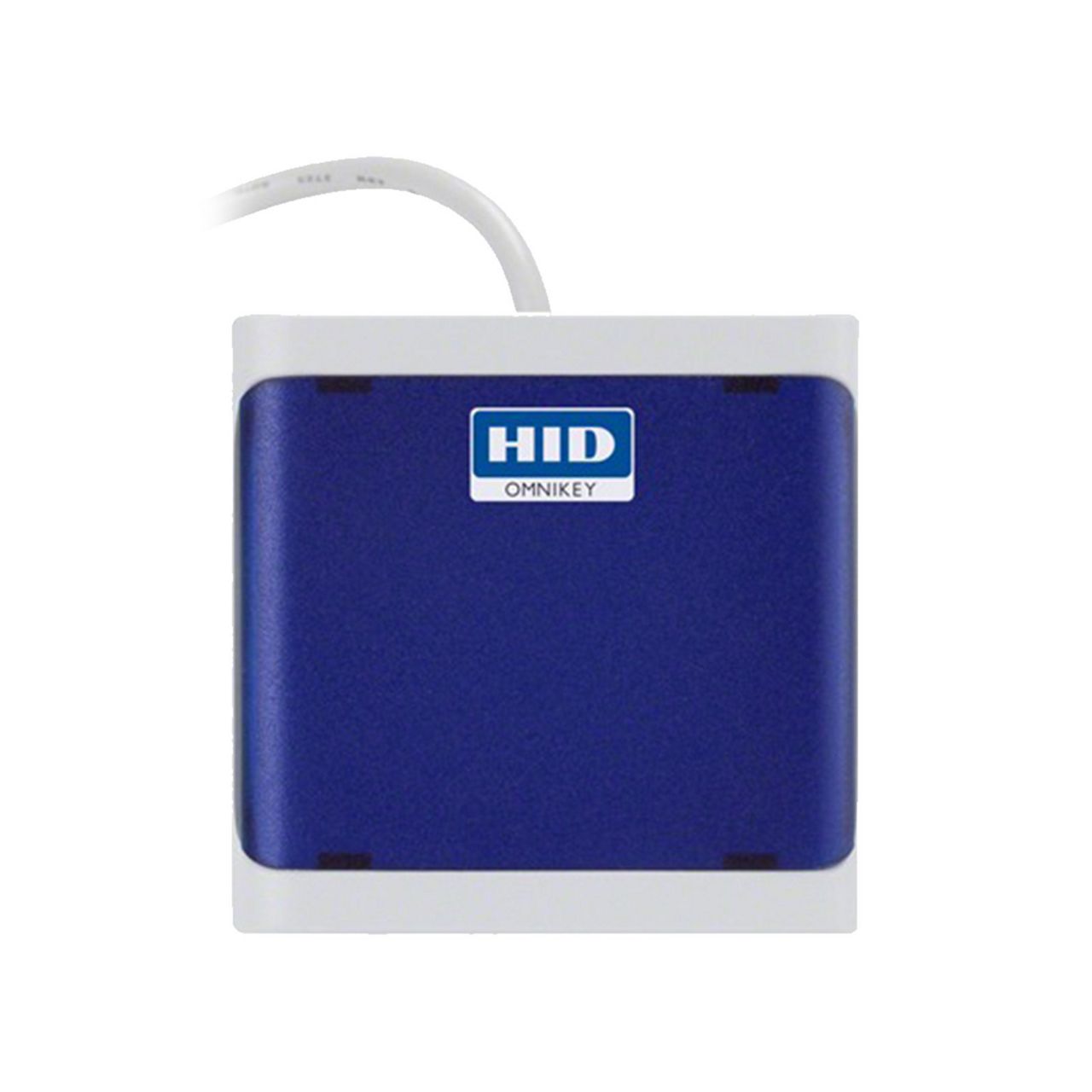

Incedo USB readers

ASSA ABLOY‘s USB Reader is designed to make adding the ASSA ABLOY credentials RDR-8KT and RDR-8KC into Incedo quick and easy.

Designed to plug directly into any PC with an available USB port.

The reader uses the native Human Interface driver from the computers operating system eliminating the requirement for driver installation and is suitable to be used with any standard PC.

Preconfigured
The reader comes preconfigured to read the ASSA ABLOY credentials RDR-8KT and RDR-8KC and is ready to use out of the box.

Easy to Install
Plug and Play, no software installation or setup required.

Ease of configuration
No configuration of the Incedo system required.

Simple to Use
Present your credential to the reader and the number is added in to the software.

Product Features:

Suitable for use with any Incedo system
Supports Windows, MacOS, Linux and Android
Global certification for World Wide usage
Supports the ASSA ABLOY RDR-8KT and RDR-8KC credentials

Model name	RDR-USB
Description	ASSA ABLOY USB reader
Contactless Smart Card Interface
Compatible credentials	ASSA ABLOY credentials RDR-8KT and RDR-8KC
Card Serial Number CSN (UID)	Pre Configured
Physical Access Data (eg. Building ID)	Pre Configured
Usage Indicator	LED activation
Host Interface
USB Interface	USB 2.0 Full Speed Device (12 Mbps) USB 3.0 extended operability, tested with hubs/controllers
Connector / Cable	USB Type A connector; 150 cm cable
Operating Systems (Keyboard Wedge Mode)	Windows 10/8.1/8/7/Server 2016/Server 2012/Server 2008R2
Driver	Native keyboard (Human Interface Device) driver
Human Interface
Status indicator	LED
Output Speed	less than 300ms from card presentation to output start
Housing
Housing	Poly Carbonate Body Light Grey / Blue Coloured Cover Plate Customer-specific logo or color on request
Dimensions	5.9 cm x 5.9 cm x 1.1 cm
Weight	~71 g
Operating Conditions
Operating Temperature	0-70°C
Operating Humidity	10-95% rH (not condensing)
Storage Temperature	-40 - 80°C
Meantime Between Failure (MTBF)	500,000 hours
Compliance and Regulatory
Compliance / Certification	USB 2.0, (USB 3.0 tested), TAA+B15
Regional Certifications	CE RCM, FCC, UL, RCM, ICES (Canada)
Environmental	WEEE, RoHS 3, Reach
Ordering Information
Warranty	Two-year manufacturer warranty
