Infrared Touchless Actuator Switch

Utilising the latest in Active Infrared technology, the ASSA ABLOY Touchless actuators provide a totally contactless solution for door Egress, Access or Request to Exit applications. The Actuators provide both a Latching Output function along with an inbuilt timer for adjustable output times. Read range is also adjustable from 4 to 15cm, making the ASSA ABLOY Touchless actuators the ideal solution for use as a stand-alone product or integrated into any Access Control, Intercom, Keypad or Card Reader system.

Available in both Wall Plate and Architrave style designs, and IP65 Rated, the Touchless actuator switches are suitable for a host of environments and applications including sanitary requirements for facilities such as Hospitals, Aged and Health Care facilities, Medical Clinics and also high traffic areas including Offices and Universities.

Features & Benefits

• Timed or Latching Output Relay modes
• Adjustable Timed Output from 0.5 to 30 Seconds
• 25mm IR Sensor with adjustable read range from 40 to 150mm

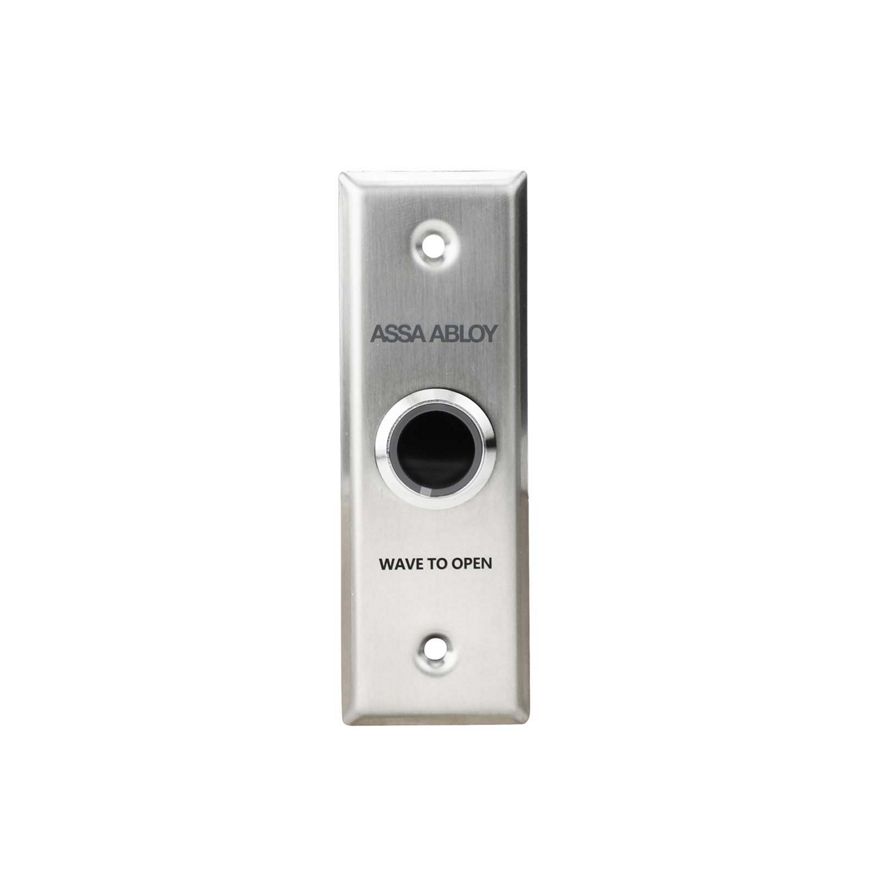

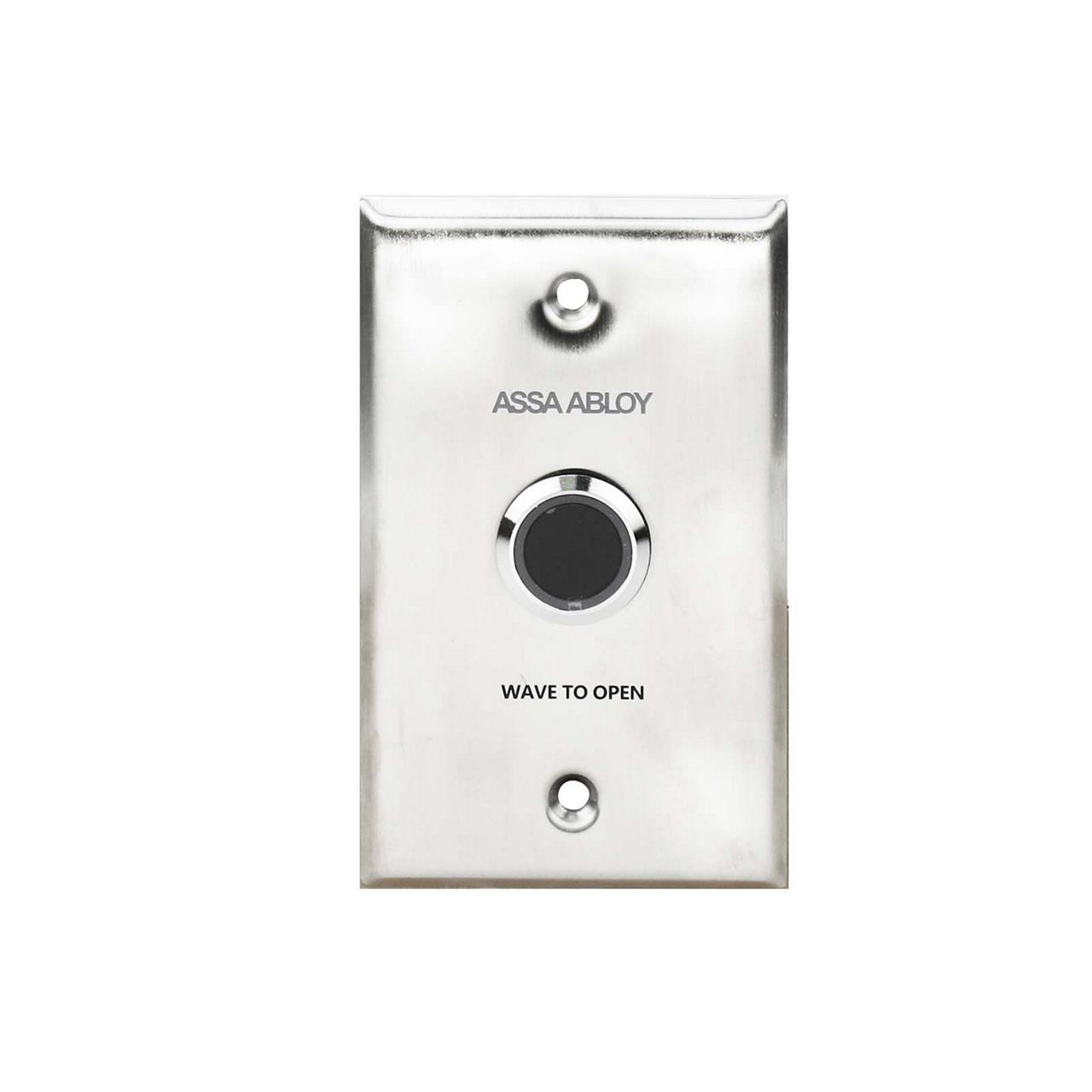

• Available in both Wall Plate and Architrave Plate configurations
• NC & NO Output Relay
• 12 – 24VDC Operation
• Maximum current consumption – 21mA @12VDC
• Red & Green Bi-Colour LED Ring
• IP65 Rating for external applications
• Wall Plate model mounts onto a Single Gang Electrical Box
