AH120 - A bold statement piece for larger doors

Introducing the AH120 Long plate version

The AH120 Long Plate version offers full coverage and a refined finish, ideal for larger doors in commercial and public spaces.

Engineered for strength and style, it meets the highest standards for durability.

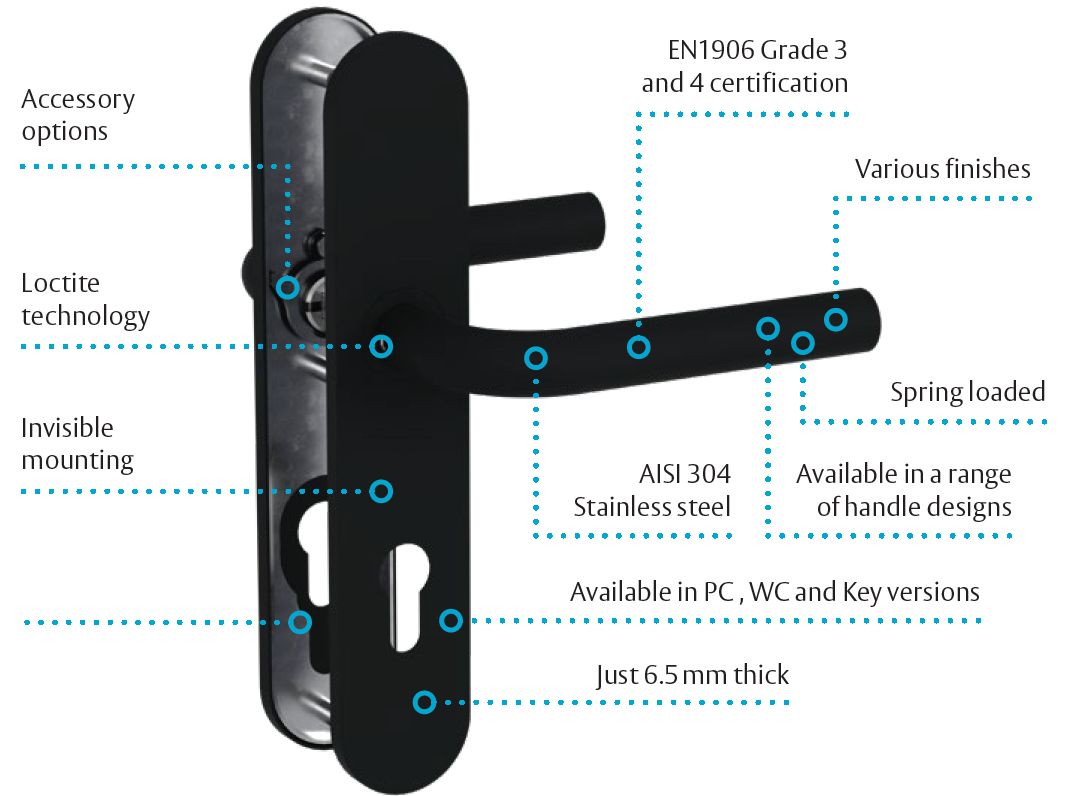

Key features

Premium Materials: AISI 304 stainless steel, finely brushed or black powder-coated finish.

Design Options: L-shape, L90-shape, U-shape levers.

Secure Fit: Loctite-treated screws and invisible mounting system.

Durability: EN1906 Grade 3 & 4 certified for high-frequency and high-security environments.

Thickness: Slim 6.5 mm plate for a modern look.

Cylinder Options: PC72, WC72, WC78.



Technical Specifications

Plate dimensions: 229 mm x 44 mm x 6.5 mm

Lever diameter: 19 mm

Spindle: 8 mm x 120 mm HESO



Finish: Brushed stainless steel or black powder-coated

Certification: EN1906 Grade 3 & 4

Includes: M4 screws, nuts, spindle, Allen key, spindle adaptor
