AA-3CH-01, AA-3CH-02

  • 3D adjustable concealed hinge
  • Application: For wooden frames, for flush wooden interior doors
  • Door thickness: ≥35mm; Opening angle: <180˚
  • Door weight: AA-3CH-01-40 kg , AA-3CH-02-60 kg

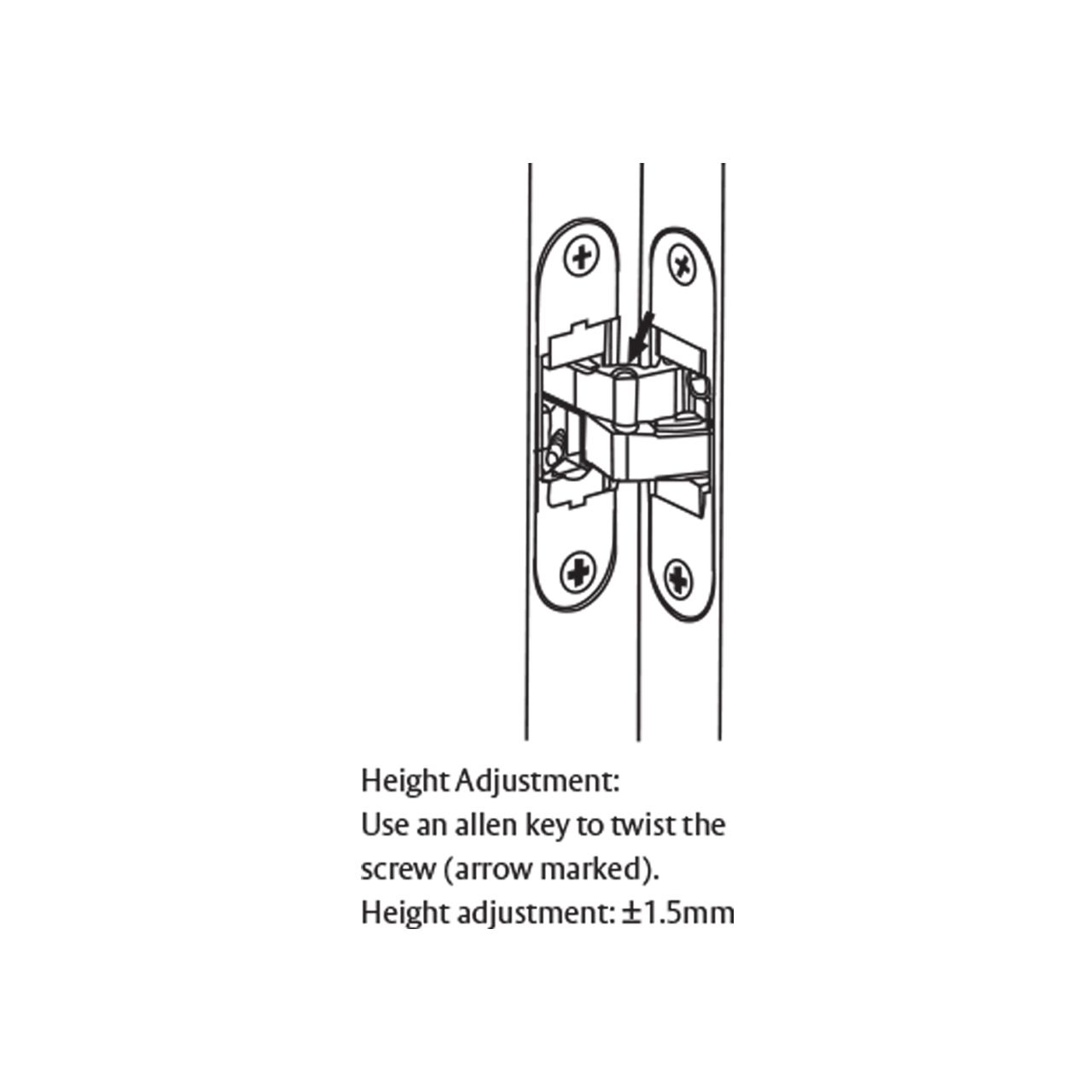

  • Adjustment feature: Continuously 3D Adjustable - height, side and closing pressure ±1mm
