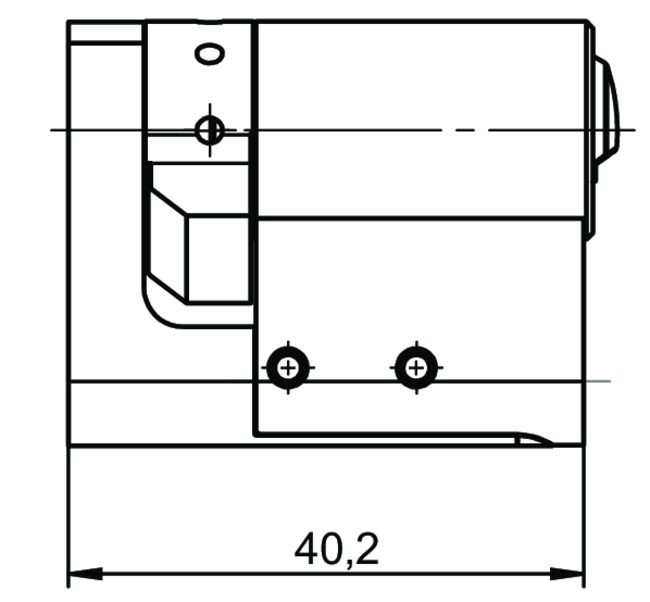

Profile-half cylinder VERSO®CLIQ V532,VAR=R90A008

Without key

Overview of Advantages

• Version with optimum extraction protection (15,000 N / 1.5 t)
• Particularly suitable for use in vending machines

Product description

• Available as mechanical or electromechanical version (V=)
• Brass / steel cylinder housing components
• Version with optimum extraction protection (15,000 N / 1.5 t)
• Particularly suitable for use in vending machines
• Standard finish, satin nickel-plated (OF=MV)
• Basic cylinder length 31mm (L=30/-)
• Standard cam position (SST=6x45°)
• Cam off high strength and high-alloyed steel
• Tumbler elements with special wear-resistant alloy
• Dust and rain cover for one side available under (SUR=1)
• Optionally available with anti drilling protection class 2 (AB=2)
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb

Scope of delivery

• 1 profile half-cylinder
