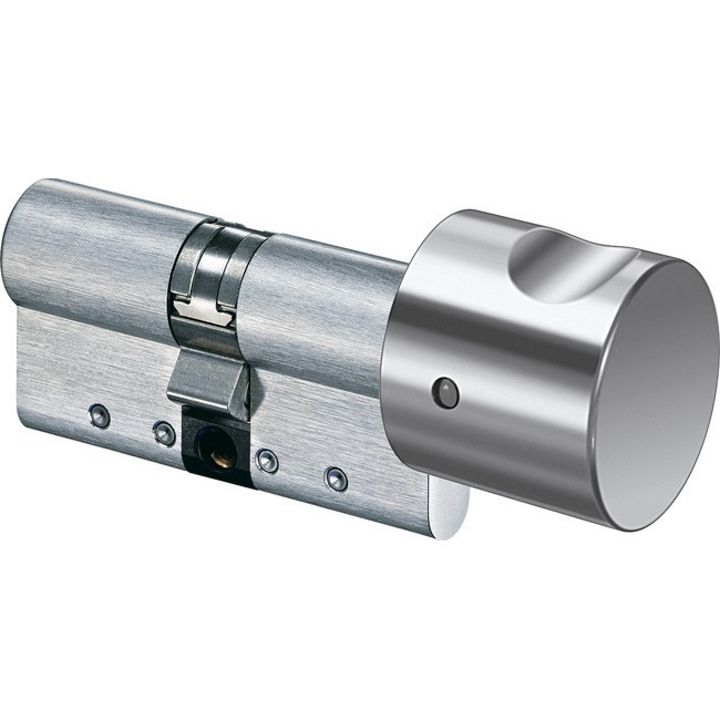

Profile-knob cylinder VERSO®CLIQ V534,KNF=91

Round knob with handle grip, 25 mm diameter - without key

Product description

  • Available as mechanical or electromechanical version (V=)
  • Brass cylinder housing components
  • Standard finish, satin nickel-plated (OF=MV)
  • Standard knob colour brass, satin nickel-plated (KNF=91MV)
  • Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system
  • Standard cam position (SST=30°)
  • Optionally with magnetic locking cam reset function (VAR=FS)
  • Cam made of break and corrosion-resistant nickel silver profile
  • Tumbler elements with special wear-resistant alloy
  • Dust and rain cover for one side available under (SUR=1)
  • Optionally available with anti drilling protection class 2 (AB=2)
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb
  • Optional available without audit trail (V2=OHNE AUDIT)
  • Optionally available with anti-killing spree function: With this function the knob is disengaged as the key is entering the cylinder on the other side (VAR=1901509+3+ENTKUPPL.)

Scope of delivery

  • 1 profile-knob cylinder
  • 1 cylinder fixing screw M5 x 85 mm

Ordering Information

  • The knob is always on the inside of the cylinder (B)
