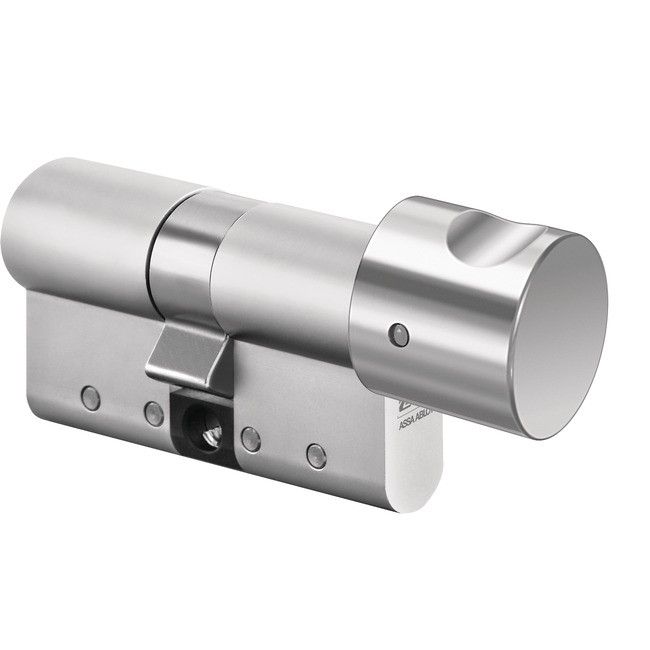

Profile-knob cylinder CLIQ® Go N534,KNF=91,SERVICE=CLIQGo

Round knob with handle grip, 25 mm diameter - without key

Product description

Available as rotary secured or electronical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)
Standard knob colour brass, satin nickel-plated (KNF=91MV)

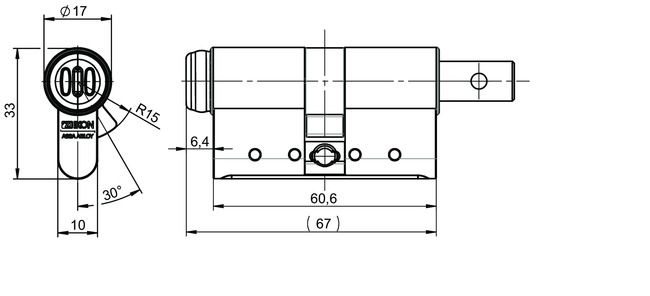

Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system

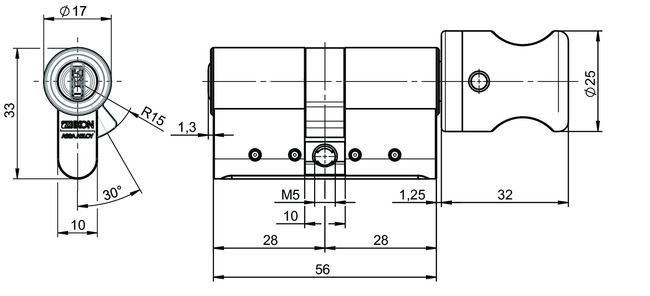

Optional, differing basic cylinder length of 56 mm (C) - A/B (L=28/28)
Standard locking cam position (SST=30°); differing locking bit position available, optionally available with SST=FLEX
Optionally with magnetic locking cam reset function (VAR=FS)
Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
Optionally available with anti drilling protection class 2 (AB=2)
Cam made of break-proof, corrosion-resistant stainless steel
Maintenance-free for up to 200,000 cycles
Splash-proof IP54
Dust and rain cover for one side available (SUR=3) IP55
Optionally available with anti-killing spree function: With this function the knob is disengaged as the key is entering the cylinder on the other side (VAR=1901509+3+ENTKUPPL.)

Scope of delivery

1 profile-knob cylinder
1 cylinder fixing screw M5 x 85 mm

Ordering Information

The knob is always on the inside of the cylinder (B)

Profile-knob cylinder CLIQ® Go N534,KNF=91,SERVICE=CLIQGo

PIV CERT

	Order number	Product
	S406	Steel security fitting with cylinder cover - round knob/handle
	S403	Steel security fitting with cylinder cover - handle/handle
	S408	Steel security fitting with cylinder cover - angled knob/handle
	S413	Steel security fitting with cylinder cover - handle/handle
	S418	Steel security fitting with cylinder cover - angled knob/handle
	S416	Steel security fitting with cylinder cover - round knob/handle
	S423	Steel security fitting with cylinder cover - handle/handle
	S426	Steel security fitting with cylinder cover - round knob/handle
	S428	Steel security fitting with cylinder cover - angled knob/handle

	Order number	Product
	N109,V=E3,SERVICE=CLIQGo	Key CLIQ^® Go
	N109,V=B3,SERVICE=CLIQGo	Key CLIQ^® Go
	N109,V=PE,SERVICE=CLIQGo	Key CLIQ^® Go

Article number	KNF= (Knob shape)	OF= (Surface)	L= (Length)	V= (Version)
N534,KNF=91,SERVICE=CLIQGo	91MV (Round knob with recessed grip, satin nickel plated, 25mm diameter)	MV/MV (Matt, nickel-plated)	30/30	D (Rotary secured version)
	91MV (Round knob with recessed grip, satin nickel plated, 25mm diameter)	MV/MV (Matt, nickel-plated)	30/30	E (Electronic version)

Special identification marking

Description	Info
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)	per side

Drilling protection

AB=	Area of application	Info
2	For profile knob, half and special cylinders	per cylinder

Test certificate

SZ=	AB=	Description	Area of application	Info
DIN	2	DIN-tested profile cylinder	For profile half and knob cylinders	per cylinder

Special finish

OF=	Area of application	Info
MV	For profile and locking lever cylinders	per cylinder
MC	For profile and locking lever cylinders	per cylinder
MP	For profile and locking lever cylinders	per cylinder
MG	For profile and locking lever cylinders	per cylinder

Dust and rain protection

SUR=	Area of application	Description	Info
0		Deviating from the standard cap	per cylinder
3	For profile knob and double cylinder, double cylinder one side blind and half cylinder		per cylinder

Cam position and free wheeling function

SST=	Description
90-270	90-270 degrees
270-90	270-90 degrees
270-0	270-0 degrees
0-90	0-90 degrees
180-90	180-90 degrees
270-180	270-180 degrees
135-180	135-180 degrees
135-225	135-225 degrees
90-180	90-180 degrees
180-270	180-270 degrees
270-30	270-30 degrees
330-90	330-90 degrees
FZG	Freewheeling cylinder for gear locks

Cogwheel version

SST=	Area of application	Description
K901179	Mul-T-Lock type	Diameter 24 mm / Module 2 / 10 teeth
K901180	VIRO/IKON .138 type	Diameter 30 mm / Module 1,5 / 18 teeth
K901293	Laperche type	Diameter 24 mm / Module 1,5 / 14 teeth
K901188	Italian type	Diameter 27 mm / Module 1,5 / 16 teeth

Variant

VAR=	Description	Area of application	Info
1901509+3+ENTKUPPL	“Anti-killing spree” cylinder with special coupling mechanism magnetic cam reset function	For profile knob cylinders	per cylinder
FS	Magnetic cam reset function	For profile knob cylinders	per cylinder

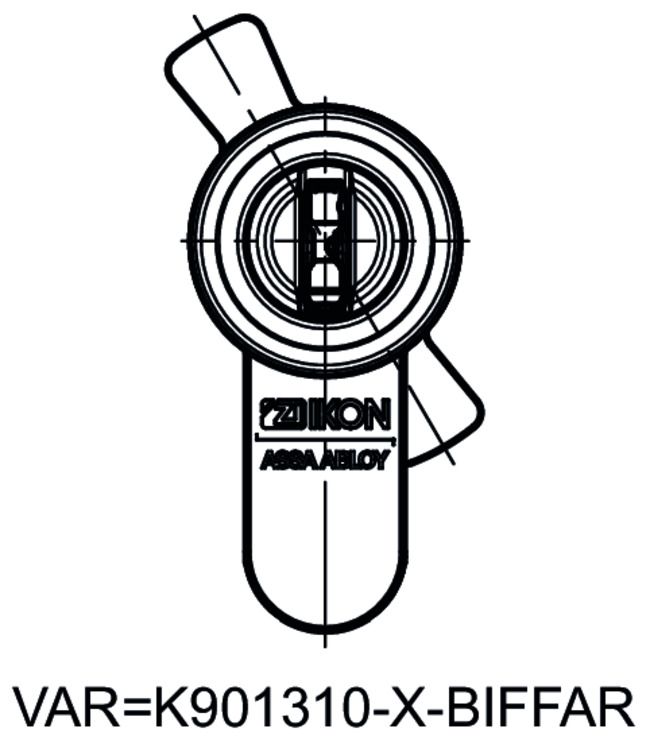

K901310-X-BIFFAR	Double cam with 2 outputs arranged 180° from each other	For profile cylinder	per cylinder

Installation lengths of double and knob cylinders

=28/28
=28/30
=28/35
=28/40
=28/45

=30/28
=30/30
=30/35
=30/40
=30/45
=30/50
=30/55
=30/60
=30/65
=30/70
=30/75
=30/80

=35/28
=35/30
=35/35
=35/40
=35/45
=35/50
=35/55
=35/60
=35/65
=35/70

=40/28
=40/30
=40/35
=40/40
=40/45
=40/50
=40/55
=40/60
=40/65
=40/70

=45/28
=45/30
=45/35
=45/40
=45/45
=45/50
=45/55
=45/60
=45/65

=50/30
=50/35
=50/40
=50/45
=50/50
=50/55
=50/60

=55/30
=55/35
=55/40
=55/45
=55/50
=55/55

=60/30
=60/35
=60/40
=60/45
=60/50

=65/30
=65/35
=65/40
=65/45

=70/30
=70/35
=70/40

=75/30
=75/35

=80/30

Knob colours

KNF=	OF=	Info
91MV	MV	Standard
91MG	MG
91MP	MP
91BR	BR
91PV	PV

V=
E
D
