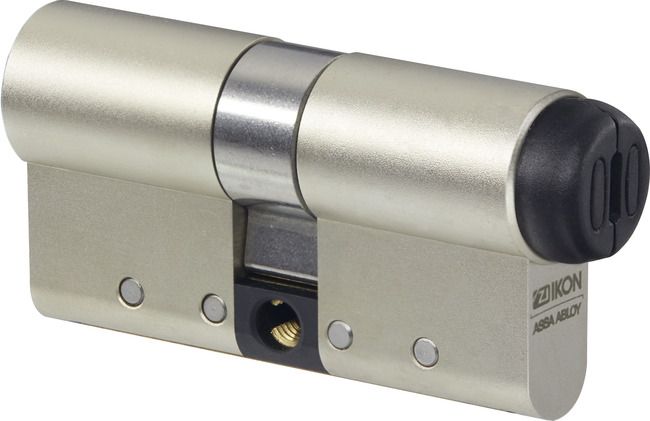

Profile-double cylinder CLIQ® Go N531,SERVICE=CLIQGo

Without key

Product description

Available as rotary secured or electronical version (V=)
Other side can feature an electronic or rotary-secured design
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)

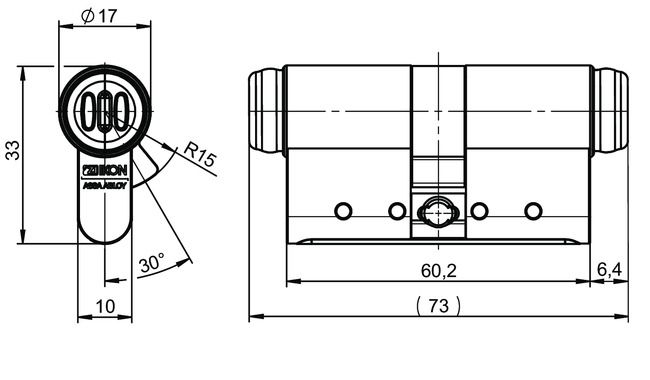

Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system

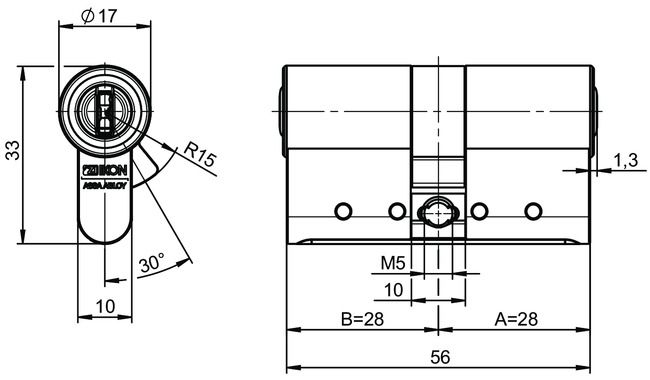

Optional, differing basic cylinder length of 56 mm (C) - A/B (L=28/28)
Standard locking cam position (SST=30°); differing locking bit position available, optionally available with SST=FLEX
Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
Optional with SST=FZG possible
Optionally available with anti drilling protection class 2 (AB=2)
Both side locking (GE=BS) and 360° free-wheeling function as standard
Cam made of break-proof, corrosion-resistant stainless steel
Maintenance-free for up to 200,000 cycles
Splash-proof IP54
Dust and rain protection cap available for one or both sides (SUR=3/-, -/3, 3/3) IP55

Scope of delivery

1 profile-double cylinder
1 cylinder fixing screw M5 x 85 mm

Profile-double cylinder CLIQ® Go N531,SERVICE=CLIQGo

PIV CERT

	Order number	Product
	S403	Steel security fitting with cylinder cover - handle/handle
	S406	Steel security fitting with cylinder cover - round knob/handle
	S408	Steel security fitting with cylinder cover - angled knob/handle
	S413	Steel security fitting with cylinder cover - handle/handle
	S418	Steel security fitting with cylinder cover - angled knob/handle
	S416	Steel security fitting with cylinder cover - round knob/handle
	S423	Steel security fitting with cylinder cover - handle/handle
	S426	Steel security fitting with cylinder cover - round knob/handle
	S428	Steel security fitting with cylinder cover - angled knob/handle

	Order number	Product
	N109,V=E3,SERVICE=CLIQGo	Key CLIQ^® Go
	N109,V=B3,SERVICE=CLIQGo	Key CLIQ^® Go
	N109,V=PE,SERVICE=CLIQGo	Key CLIQ^® Go

Article number	OF= (Surface)	L= (Length)	V= (Version)
N531,SERVICE=CLIQGo	MV/MV (Matt, nickel-plated)	30/30	D/D (Rotary secured version / Rotary secured version)
	MV/MV (Matt, nickel-plated)	30/30	E/D (Electronic version / Rotary secured version)
	MV/MV (Matt, nickel-plated)	30/30	D/E (Rotary secured version / Electronic version)
	MV/MV (Matt, nickel-plated)	30/30	E/E (Electronic version / Electronic version)

Drilling protection

AB=	Area of application	Info
2/-	For profile double cylinders	per side
-/2	For profile double cylinders	per side
2/2	For profile double cylinders	per cylinder
2	For profile knob, half and special cylinders	per cylinder

Dust and rain protection

SUR=	Area of application	Description	Info
0		Deviating from the standard cap	per cylinder
3/-	For profile double cylinders		per side
-/3	For profile double cylinders		per side
3/3	For profile double cylinders		per cylinder

Test certificate

SZ=	AB=	Description	Area of application	Info
DIN	-/2	DIN-tested profile cylinder	For profile double cylinders	per cylinder
DIN	2/-	DIN-tested profile cylinder	For profile double cylinders	per cylinder
DIN	2/2	DIN-tested profile cylinder	For profile double cylinders	per cylinder

Special finish

OF=	Area of application	Info
MV	For profile and locking lever cylinders	per cylinder
MG	For profile and locking lever cylinders	per cylinder
MP	For profile and locking lever cylinders	per cylinder
MC	For profile and locking lever cylinders	per cylinder

Special identification marking

Description	Info
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)	per side

Cam position and free wheeling function

SST=	Description
90-270	90-270 degrees
270-90	270-90 degrees
270-0	270-0 degrees
0-90	0-90 degrees
180-90	180-90 degrees
270-180	270-180 degrees
135-180	135-180 degrees
135-225	135-225 degrees
90-180	90-180 degrees
180-270	180-270 degrees
270-30	270-30 degrees
330-90	330-90 degrees
FZG	Freewheeling cylinder for gear locks

Cogwheel version

SST=	Area of application	Description
K901179	Mul-T-Lock type	Diameter 24 mm / Module 2 / 10 teeth
K901180	VIRO/IKON .138 type	Diameter 30 mm / Module 1,5 / 18 teeth
K901293	Laperche type	Diameter 24 mm / Module 1,5 / 14 teeth
K901188	Italian type	Diameter 27 mm / Module 1,5 / 16 teeth

Installation lengths of double and knob cylinders

=28/28
=28/30
=28/35
=28/40
=28/45

=30/28
=30/30
=30/35
=30/40
=30/45
=30/50
=30/55
=30/60
=30/65
=30/70
=30/75
=30/80

=35/28
=35/30
=35/35
=35/40
=35/45
=35/50
=35/55
=35/60
=35/65
=35/70

=40/28
=40/30
=40/35
=40/40
=40/45
=40/50
=40/55
=40/60
=40/65
=40/70

=45/28
=45/30
=45/35
=45/40
=45/45
=45/50
=45/55
=45/60
=45/65

=50/30
=50/35
=50/40
=50/45
=50/50
=50/55
=50/60

=55/30
=55/35
=55/40
=55/45
=55/50
=55/55

=60/30
=60/35
=60/40
=60/45
=60/50

=65/30
=65/35
=65/40
=65/45

=70/30
=70/35
=70/40

=75/30
=75/35

=80/30

Variant

VAR=	Description	Area of application	Info

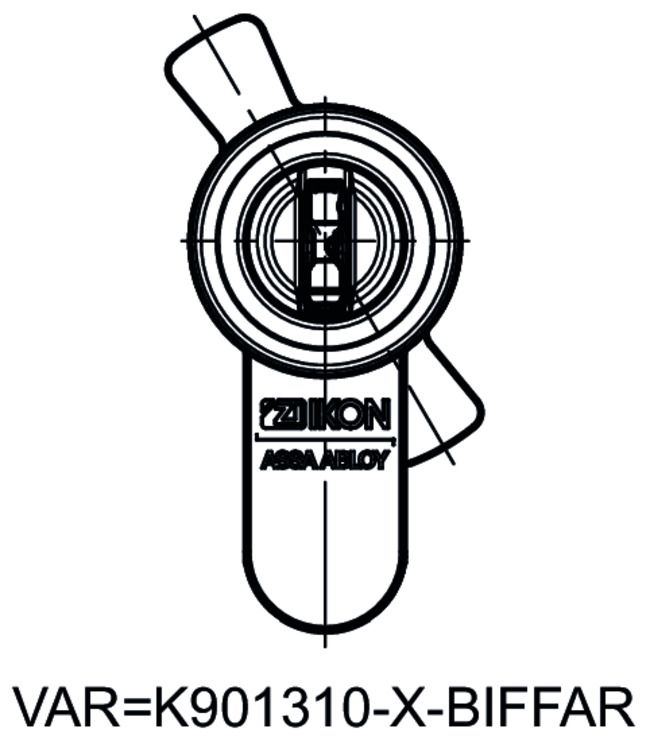

K901310-X-BIFFAR	Double cam with 2 outputs arranged 180° from each other	For profile cylinder	per cylinder

V=
D/D
E/D
D/E
E/E
