J-Series Double Door Panic Hardware

Variations

Variant 1

• UNION
• J-883-SIL (900mm)
• J-883-W-SIL (1200mm)

Technical Attributes

• Suitable for rebated double doors
• 3 point locking

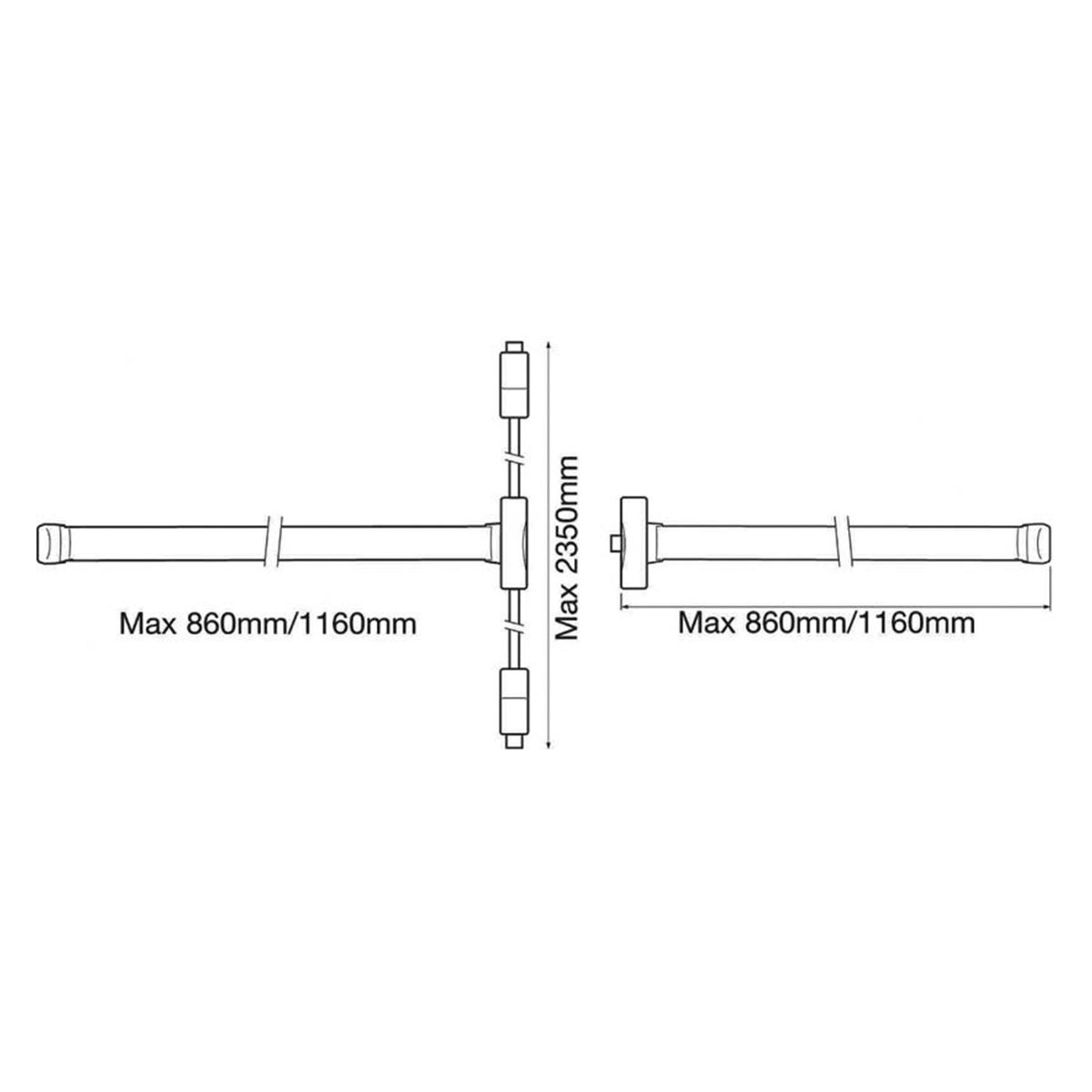

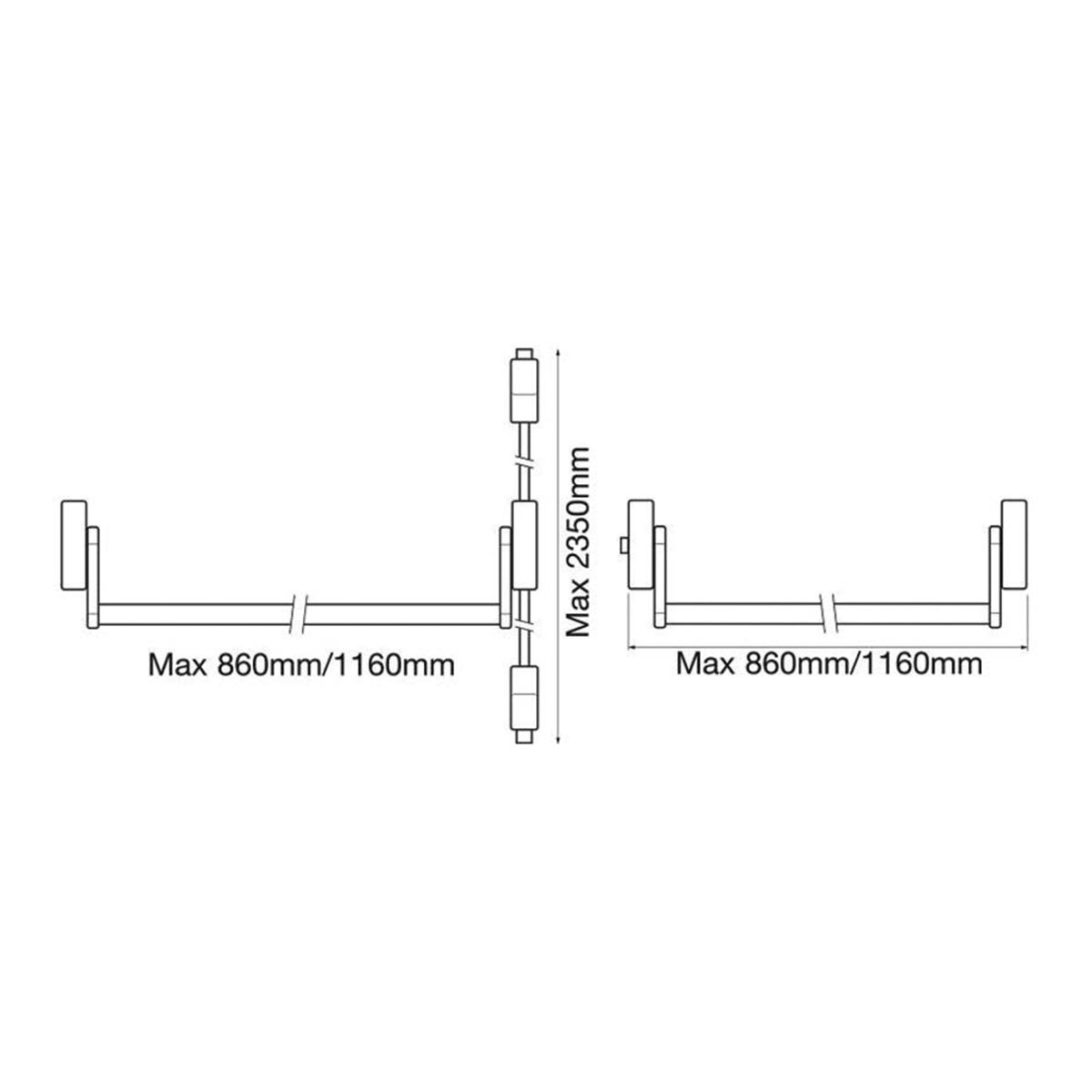

• Max. door width 900mm/1200mm
• Max. door height 2350mm
• Anti-thrust steel deadlatch
• Optional outside access device:
• J-885-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

Variant 2

• UNION
• J-883TD-SIL (900mm)
• J-883-TD-W-SIL (1200mm)

Technical Attributes

• Suitable for rebated double doors
• 3 point locking
• Low projection touch bar
• Max. door width 900mm/1200mm
• Max. door height 2350mm
• Anti-thrust steel deadlatch
• Optional outside access device:
• J-885-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | B | A
