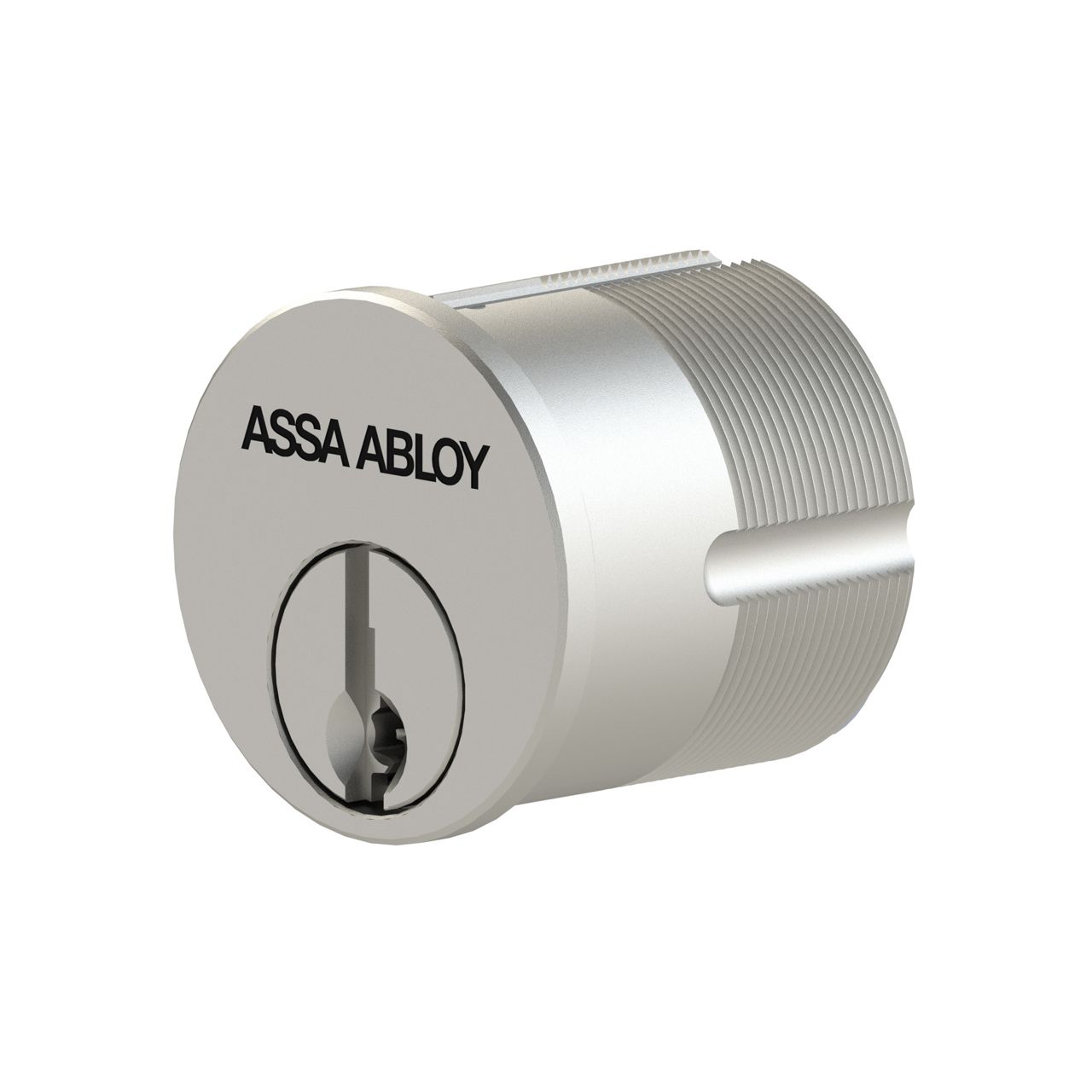

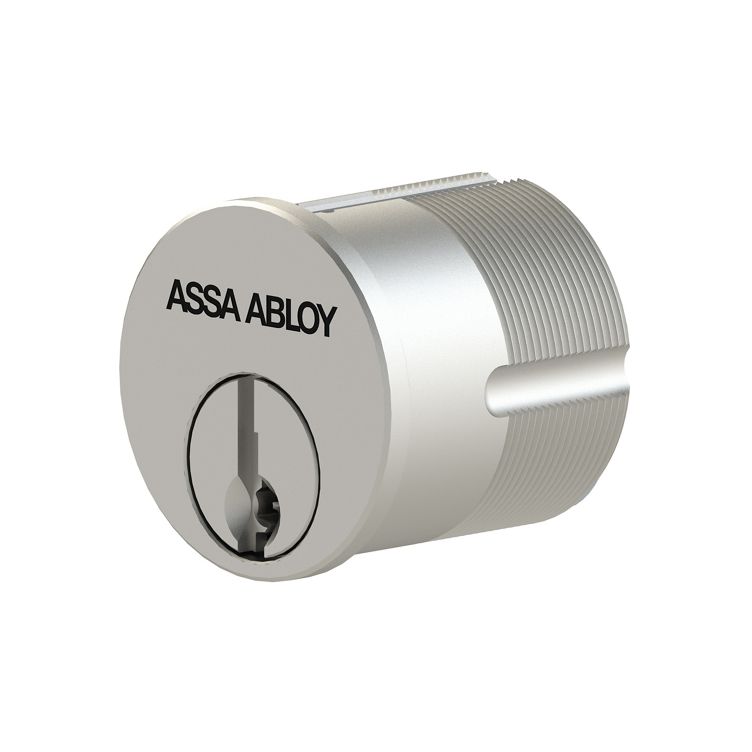

CYS10 Screw-In Cylinder

The CYS10 Screw-In Cylinder secures main entry aluminium or metal doors with narrow stile, commonly used in commercial applications such as shop or warehouse doors.

Applications:

Aluminium or metal doors with narrow stile
Master Key System (MKS), Keyed Alike (KA), Keyed to Differ (KD)

Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

Feature	Detail
Security	EN 1303:2015 tested, 1 6 – B – C 6 0
Attack resistance	Anti-pick \| Anti-bump (for MKS consult your master key specialist)
Number of keys	MKS and KA: according to order \| KD: 3
Max. number of effective key differs	144,729
Max. number of MKS profiles	63
Number of pins	6
Raw material	Brass
Finish	Satin Nickel
Dimensions	Face diameter: 31.5 mm \| Body diameter: 29.15 mm \| Tailbar length: 33.59 mm
Weight	215 g
